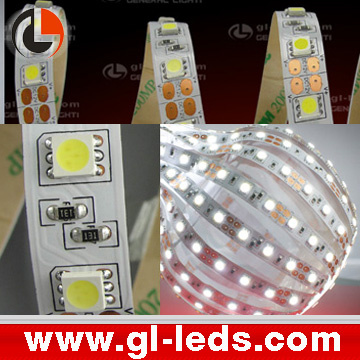

SMD flexible LED strip light with 5060 High Output Light Strip
Certification: RoHS and CE.
Input Voltage DC 12V or 24V.
Products GL-DFB series of light stripes is to satisfy customers seeking a high brightness of the lighting and brilliant colors effects, the product characterized by the use of a three-chip TOP 5050 SMD LED as a light source, there are bright, colorful, brightness uniform characteristics, for home decoration, hotels, an ideal light source cabinet lighting options.
Features of Flexible LED strip:
1. Used 5060 TOP SMD RGB or signal color with three chip in one LED as lighting resources.
2. 150 PCS LED(GL-FB-*)/300 PCS LED (GL-DFB-*)LED/5M.
3. Size: 5000X10MM(GL-FB-*)/5000X12MM(GL-DFB-*).
4. Available RGB/Red/Green/Blue/Yellow/Pure White/Warm White;
5. Input Voltage DC 12V or 24V;
6. Max power 36W(GL-FB-*)/72W(GL-DFB-*).
7. Can be cut by 3 LED (DC 12V) and 6LED (DC 24V) and connect again by our accessories;
8. With 3M adhersive tape back, easy for installation.
9. Can be change into waterproof with type A and type B
10. Can be chosen copper PCB or white PCB.
Application of Flexible LED strip:
1. Cover lighting
2. Architectural light for canopy, corridor, window, archway
3. Backlight for edge lighting for signage
4. DIY lights for home use
5. Path and contour marking
6. Decorative lights for holiday, event, show exhibition.
Other:
General Lighting Electronic Co., Ltd. All rights reserved. No part of this photo may be reproduced, in any form or by any means, without permission in writing from General Lighting Electronic Co. Ltd.
|
Part Number |
LED Q'ty |
LED
Type |
CCT Range |
Size(MM) |
Λd(nm)/Tc(K) |
Flux(±5%) |
Max
Power |
|
GL-FB-PW-N300F22WA1 |
300PCS |
TOP
SMD
5050
LED |
Pure White |
5000X12 |
5500-6500K |
5394lm |
72W |
|
GL-FB-WW-N300F22WA1 |
300PCS |
Warm White |
3000-3500K |
4054.5lm |
|
GL-FB-R-N300F22WA1 |
300PCS |
Red |
620-625nm |
1362lm |
|
GL-FB-G-N300F22WA1 |
300PCS |
Green |
520-525nm |
3570lm |
|
GL-FB-B-N300F22WA1 |
300PCS |
Blue |
465-470nm |
1101lm |
|
GL-FB-Y-N300F22WA1 |
300PCS |
Yellow |
585-590nm |
1470lm |
