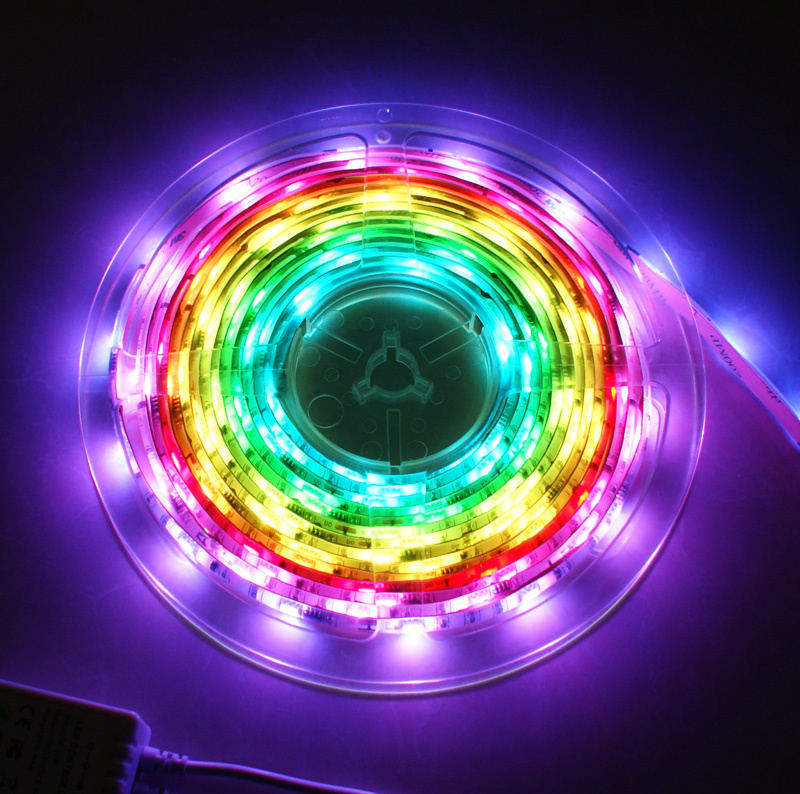

The Latest Product RGB LED Light Strip with CE&RoHS
Constant current LED Light Strip design, no voltage drop. The same brightness of each LED on the reel. No risistors, Maximum reduce product failure, good option for everywhere need longer length and same brightness.
Features of LED Light Strip:
1...Constant current design, PCB Output Voltage: DC24V
2. LED: 150PCS SMD5050. Size: 5000X10mm
3. Color: RGB chasing
4. IP65. IP67 waterproof are available
5. SMD3528 and SMD5050 single color constant current flexible LED strips can be supplied
6. Working temperature and Storage temperature: 0º C - 40º C.
Note Of LED light strip:
1\please make LED drivers compatible with flexible LED strips before use LED strips;
2\To use LED light strips 5M in serial, longer than 5M in parallel;
3\Before use, first check the power supply used in compliance with of the power requirements;
4\Each roll ask for independent power supply; Not to use of multi-volume series use.
|
Part No |
Dimensions
(mm) |
LED Q' ty |
LED Type |
cuttable
lengty |
Light Output
(lumen) |
Beam Angle
(degrees) |
Voltage
(V DC) |
Current
(Amps) |
MAX. Power
Consunption
(W) |
Max. Connection
length(m) |
|
GL-FBH-150-12 |
5000*10 |
150 |
RGB LED |
every 3 leds |
20 |
120 |
12 |
3 |
36 |
10 |
