| Price: | US $ 8-12/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,Paypal,Western Union |
| Item No. | ML-TGF-01 |

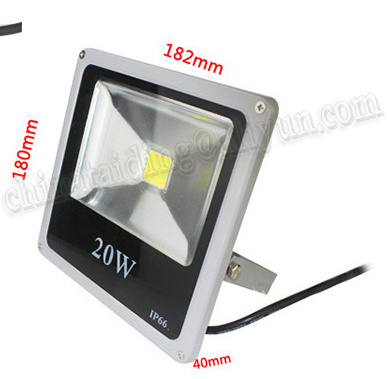

| Dimension | 18.3cmx18.9cmx4.3cm |
| Power | 20w |
| Luminous flux | 5500lm |
| Lamp efficiency | >=300-900lm |
| Light source | Bridgelux LEDs or Customized |
| Light degradation rate | 25000h ≤ 30% |
| Color rendering index | Ra>85 |
| PF | PF≥0.93 |
| Beam angle | 60 ° 120° |
| Rated life | 50000h |
| Color temperature | 3000-7000K |
| Working temperature | -20~+50°C |
| Input Voltage | AC90-260V |
| IP code | IP65 |
| Brand | Taiding |
| Warranty | 3 Years |
| Certificate | CE, ROHS, SAA, EMC, LVD |
| Application | Highway, courtyard, road, outdoor, etc. |
| Available color | Black/customized |
| Payment terms | By T.T, Western Union, L/C, etc |
| Pieces per carton | 20pcs/ctn |

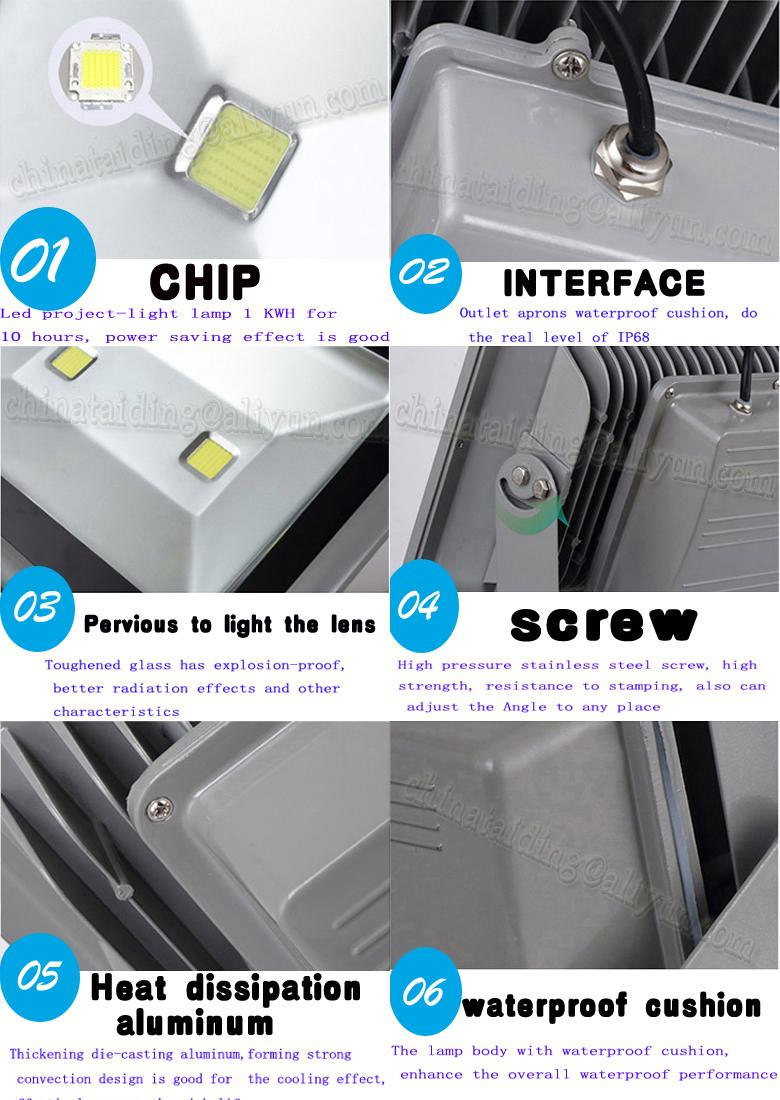

. Features of IP65 UL cUL DLC cob LED floodlight 1000w
1). Patented zipped-fins technology
With zipped-fins techology,the convection airflow is evenly distributed in the cooling fins,optimizing the cooling effect.
2). 3-Dimension heat dissipation
There are convection holes distributed on each fins allowing parallel direction airflow to maximum the cooling power.
3). Respirator design
Anti-fogging and waterproof Respirator, balances the different pressure between the atmosphere and the shell.
4). Protection rate: IP65
By using water-proof connector and silicon rubber sealing , the protection rate can achieve IP65, meeting the requirement for harsh, tough environment.
5). Heat pipe-riveting & Massive Fins
By using the Ø6mm heatpipe,the heat is quickly transfered to the cooling module of massive radiation fins, efficiently reducing the temperature of the LED chips and drivers, extending the lifespan.
6). Patented HDT technology
4×Ø6mm high efficient heatpipes contact the heat source directly,rapidly transfer the heat to the cooling module of massive
radiation fins, maximing the performance of cooling.
7). High performance heatpipe cooling
The heatpipe's principle is using the quick phases change of the liquid(medium) under vacuum condition which exchanges the
heat, the heat transfer rate is superior to any metal.
8). Tempered glass panel
4mm tempered glass panel safely protect the lighting source, and the transparent rate is high up to 93%.
9). Pure aluminium reflector
The reflector is made of pure aluminium(99.8%) which is anti-oxidation and unfading in colour, ensuring the reflection.
10). Electrophoretic paint coating
Processed by electrophoretic paint, measured by 200 hours salt spray test, the entire housing has excellent corrosion resistance
11). Wide angel for adjustment
With multiple adjustment points, the adjustment angel can be up to 180°
12). Stainless steel parts
Endurancing the corrosion of air, water, chemical acid, alkaline,salt and other materials, can be used in all kinds of harsh conditions for long term.
| Prod Model: | ML-TY02 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Quantity: | 1PCS |
| Power Consumption: | 20W |
| Beam Width: | Less Than 120 |
| Rendering Index: | More Than 80ra |
| Install Style: | Pendant |
| Chip: | Bridgelux Chip, Superbright |
| Samples: | Yes |
| Customize: | Yes |
| Manufacturer: | Yes |
| Projection Distance: | 12-18m |
| Color Temperature(',CCT): | Warm White |
| Body Material: | Aluminum |
| IP Rating: | IP65 |
| Base Type: | R7S |
| Average Life: | 5500h |
| Application: | Park |
| Operating Voltage: | 85-265V |
| Certification: | PSE |
| Lighting Bulbs & Tube: | LED |
