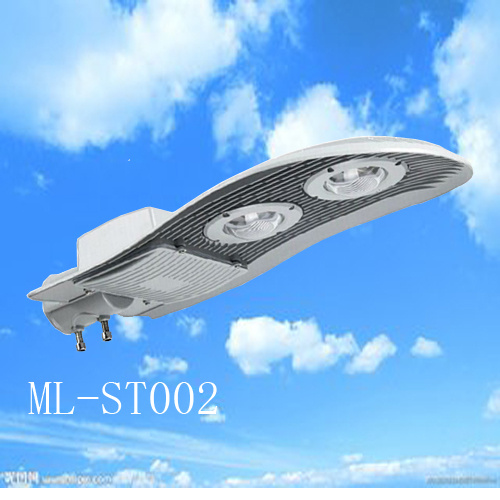

3 Years Warranty Outdoor Waterproof ip65 led street light
Specification:
| Model No. s | 100w |
| LED Light Source | 40mil LED |
| LED Luminous Efficiency | 90-100 lm/w |
| Power Efficiency | > 90% |
| Lamp Rated Luminous Flux | > 10000lm |
| Lamp Rated Luminous Efficiency | > 110lm/W |
| Color Rendering Index(CRI) | Ra> 75 |
| Beam Angle | 60 degrees or 120 degrees or 150 degrees |
| Color Temperature(Color Temperature) | 3000-6500K |
| Warranty | 2 years for Saman chip
3 years for Sintra chip
5 years for Epistar chip |
| Size | 565*260*75mm |
| Input Voltage | AC 95-240V; DC 20-36V |
| FrequencyRange | 50/60HZ |
| Power Factor(PF) | > 0.98 |
| Total Harmonic Distortion(THD) | < 15% |
| Storage Temperature(degree) | subzero 40 to 80 |
| Working Environment | -40--+50; 10%-95%RH |
| Junction Temperature(Tj) | 60 ± 10%(ta=25) |
| Light Body and Lampshade Material | die-cast aluminum lamp body
with high temperature acrylic |
| Working Lifetime | > 80, 000hrs |
| IP Rating | IP65 |
| Weight | 3kg |
NOTE: 120w LED is equal to 250w sodium lamp
One piece die-cast aluminum, the back of lamp body is blade fins, cooling capacity is strong and effective guidance of rain, no water, maintenance-free, 120-degree wide-angle lens with high temperature acrylic
Storage Environment
| Storage Temp | -20ºC~+55ºC |
| Working Temp | -20ºC~+45ºC(25ºC Working Best) |
| Working Humid | 40-90%RH |
===Feature===
1. CE and RoHS approved.
2. Stretched aluminum casing and high intensity toughened glass cover
3. High efficiency and power factor LED driver
4. Wide radiation angle, huge lighting area
5. Start without delay and flicker free
6. Good color rendering
7. Warm and cold color temperature are available
8. High shock & vibration resistant
9. Ideal heat dissipation design
10. No UV & IR, No Blinking and No Mercury & Lead free
11. Patented fixture design and LED package technology
12. Energy saving system, saving 50% energy than the conventional Metal halide lamp, Sodium Light or HPS light
Warranty term
1, Under the terms of this warranty, if the products have a failure occurs under normal usage within warranty period, Taiding Light will provide free new products based on the proof-documents
2, If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instruction, Taiding Light will provide paid maintains within warranty period.
Payment terms&Shipping
1. Sample order, Small order, we accept payment via T/T, Western Union.
2. Bulk order: 30% T/T in advance, 70% balance before shipment.
3. After your payment,we could send out the goods within 15 days, if out of stock,need to wait more time,but we will inform you before your payment. For Bulk order, it'll take 20-30 days for production.
4. Considering the security, we recommend DHL, FEDEX, UPS, (EMS only for Russia), which only take 4-7 days delivery time, EMS 5 days around longer.
What you can get from us:
1. Small MOQ, Short Lead Time. (Sample order 3 days if have stock, formal order 15-20 days).
2. Customized packing carton or our nice designed new export neutral cartons. Order up to one container, can do 1-2 color logo on cartons. All products well packed for you.
3. Good serviceduring whole process, will follow the order process at every step, and send product photo to clients for checking before shipment.
4. Have our ownProfessional Engineer Team, and help you design your lighting system, and made some modification to current exsited models. Also can open mold as your requested.
Hello Sir,
Happy found you are well. And got to know you need to purchase street lights.
Is this product fitable for your need? Please contact us for detailed information.
We (Bright Electrics Co.)are professional manufacturer for lights. Please call us freely for business.
Thanks.
Wenzhou Bright Electric Co., Ltd. is located in the famous city - Wenzhou, is engaged in road and LED application products research about products, development, design and manufacture of high-tech enterprises. The company has advanced LED module production line, LED light source production line, LED lighting appliances assembly lines, street light pole production line can produce a variety of street sales of housing, and lights products.
Quality and credibility, reputation and development is our aim to implement. Production strictly, sales tracking service, so that strict quality assurance system and powerful manufacturing standards of innovation, quality, price, service and satisfaction enough to reassure customers, to ensure that products manufactured passing rate of 99.9 percent, 99.9 percent satisfaction rate products.
Wenzhou Bright Electric Company solemn promise: Customers on product quality and service requirements, really our fate and future of the business value of their own pursuit. We are guided by the principle of sincere cooperation, the light forming colleagues, let us sincerely work together to revitalize national industry, and constantly open inside, brilliant in the new century.
Professional production of lights, spot lights, floodlights, garden lights, LED lights, lawn, landscape lights and other outdoor lighting, you can always send e-mail asking us product information.
