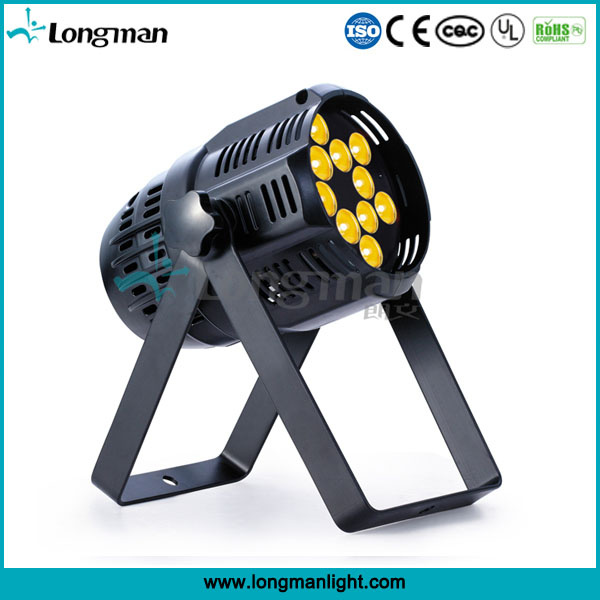

LED Factory Serve LED Stage Equipment Par Light
1. Control
Chanel option: 3/4/5/6/8 CH all inside menu.
Control mode: DMX1990/DMX512A/stand alone/master and slave
Control signal: DMX512, 32 bit Dim 4 square law dimming, PWM>400Hz, smooth dimming, no vision shock flicker free
2. Light source
Voltage input: AC 90-240V 47-63Hz, PF>0.9
Volatage Output: 24V, SMPS longevity 15000Hours
Rated Power: 62W(@220V 50Hz)
Luminaire Efficiency: >0.9, Light Effiacy >66lm/W.
LED Lumens: 12pcs*5W Full ACW LED, Amber 860lm, Cool white 1720lm, Warm white 1380lm, ACW mixing 4000lm.
LED CCT: Amber=590nm, C=8000K. W=3300K, Offer multi-CCT conbination 1700-6500K, SDC<0.005, ACW=3010K, Ra>95.
Field Angle(10%): Standard 30 ° (12000Cd/Klm), 45° , 60° , 60*1° Etc optional.
3. Constructure
Housing: Patent New die cast Lampbody
Housing color: Black
IP rate: IP20 not waterproof
4. Features
Patent New die cast Lampbody, same size as traditional Par 56, direct heatsink, true silent, could customized white Lambody.
4000Lumens Output with multi-CCT to acheive Metal hilide light Rendering, 90% Lumens within 10% Intensity field angle.
New Full CCT Capsulation LED, Popular application in stage, studio room, concert, business exhibition and all rental projects.
DMX512 signal control, 4 buttons address setting with LED screen.
Dim 4 Square law dimming for 0-100%, video flicker free, with strobe/gradual change/color change inbuilt programs;
Independent circuit driving, each 550mA, even ampere distribute.
NTC temperature control system inside, MCU reduce the power output when LED working temperature is too high;
Field Angle standard 30° , could choose other angle, and also frosted piece and 60*1° Third optical piece.
Led light from China professional led light manufacturer.
If you have specific parameters and requirements for our led light, customization is available.
|
Specification |
1. Voltage input: AC 90-240V 47-63Hz, PF> 0.9
2. Volatage Output: 24V, SMPS longevity 15000Hours
3. Rated Power: 62W(@220V 50Hz)
4. Luminaire Efficiency: > 0.9, Light Effiacy > 66lm/W.
5. LED Lumens: 12pcs*5W Full ACW LED, Amber 860lm, Cool white 1720lm, Warm white 1380lm, ACW mixing 4000lm.
6. LED CCT: Amber=590nm, C=8000K. W=3300K, Offer multi-CCT conbination 1700-6500K, SDC< 0.005, ACW=3010K, Ra> 95.
7. Field Angle(10%): standard 30 ° (12000Cd/Klm)\45° \60° \60*1° Etc optional.
8. Control signal: DMX512, 32 bit Dim 4 square law dimming, PWM> 400Hz, smooth dimming, no vision shock flicker free
9. Control mode: DMX1990/DMX512A/stand alone/master and slave
10. Chanel option: 3/4/5/6/8 CH all inside menu.
11. Housing material: Die cast aluminum ADC12, standard Matte balck, customized glossy White painting, barndoor available.
12. Safty: Class II, 3C 1.5mm2 VDE cable, Flame Rating V-1, Protect Rated IP20.
13. Operate temperature: -20~+45Celsius degree, Light board peak temperature 80Celsius degree
14. Cerficated: Product pass CE, Rohs, SMPS pass CQC or UL60950, UL8750.
15. Weight: 3.5Kg, with double yokes 3mm thick supporting bracket.
16. Size: 27*23*29CM |
