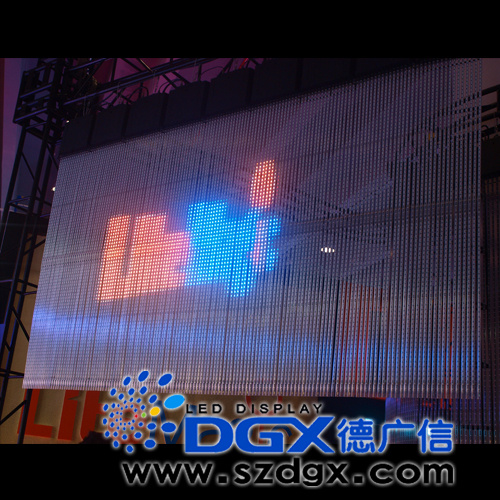

PH25 outdoor full-color LED display-04 parameter
Pixel Pitch: 25mm
Pixel Density: 6400dots/m2
Brightness: >=4000CD/m2
Viewing Angle: H: 110° , V: 40°
LED Specification: DIP546
Pixel Configuration: 2R1G1B
Module Size: 200*200mm
Module Picel Density: 16*16dots
Driving Method: Static constant current
Refresh Rate: >=400Hz
Gray/Color: 4096 grades Gray, 16.7M colors
Cotrol System: Synchronous/off-line control System
Working Voltage: AC110/220V
Working Temperature: -20~50
Max. Power consumption: 550w/m2
Life-span>100000hours
MTBF: >5000hours
Dead DOT rate: <0.0001
LED Parameter: R: Rd(625-630mm) G: Rd(522.5-525mm) B: Rd(467.5-470nm)
R: IV(450-500mcd) G: IV(1600-1800mcd)B: IV(350-400mcd)
Control distance: 120m (without relay)
MTBF: Greater than 10, 000 hours
Working temperature: -20 to +60° C
Working humidity: 10 to 95%RH
Operating systems: Windows XP, 98, and 2000
Screen body weight: Less than 60kg/m2
Shenzhen DGX TECHNOLOGY Co., Ltd. is a high -tech enterprise which specialize in LED RD, design, production, assembly and so on, DGX locate in Bao'an district of Shenzhen China which is established in 2008 and has got 150 employees.
Our major products are full color LED outdoor/indoor display screen, LED tube light, LED indoor decorating lighting, scenery lighting and building lighting.
DGX 's culture soul is "morals, development and promise", all of our employees echnics management, quality and service are based on this culture soul.
DGX' s LED display and lighting products apply to night club, KTV, disco, theatre, building, plaza, square, TV station, all the lighting, entertainment, and advertisement field, we have got high reputation in these industry.
DGX apply Taiwan and CREE LED chip to ensure the vivid video effect and Technicolor, we have got many successful project, in every China province, Australia, EU, America, Africa and so on.
DGX is famous for high quality, fast response after service.
DGX develop all the business by international eyesight and developing policy to push LED industry in China and all the world, we are looking forward to wining the future with all global customers.
