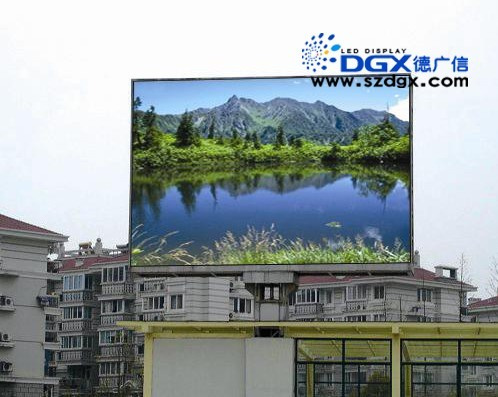

P12 Outdoor Full Color LED Display
Each pixel contains two red, one pure green, and one pure blue to total four LEDs
Pitch: 12mm
Cabinet weight: 60kg/m2
Cabinet size: 1, 152x 768mm
Pixel Density: 6944dots/m2
Recommended minimum viewing distance: 10m
Ingress Protection (Front/Rear): IP65/IP43
Input power (max/avg): 700/400 W/m2
MTBF: ≥ 10, 000 hours
Lifetime: ≥ 100, 000 hours
Frame rate: 60Hz
Display brightness: >5, 000CD/m2
Display color: 1.07Billion
Gray scale: 1024 levels/color
Operating temperature range: -20oC to +50oC
Operating Humidity range: 10% to 90%
Operating systems: Windows 98, 2000, XP and Vista
Panel input format(with video processor): VGA, DVI, RGBHV, PbPr(HDTV), Co mposite, S-Video, TV
| P12 Spare Parts Specification (DIP Outdoor) |
|
|
| Pixel Dot Pitch | 12.0mm |
| Pixel Constitution | 1R1G1B |
| Dimenssion | 192*192*25 mm |
| Structure Characteristic | The LED board and driver board separation |
| Output Voltage | 5V |
| PCB Power | ≤7.5W |
| Pixel Density | 6944/m2 |
| PCB Resolution | 16*16=256 |
| Weight | 0.5±0.05Kg |
| Material | Polycarbonate |
| Max current | 3.5A |
| Drive Mode | 1/4 Dynamic Constant Current Drive |
|
|
| Cabinet Dimenssion | 960*960*80mm |
| Cabinet Resolution | 80*80=6400 |
| Max Power Consumption | 450W |
| Cabinet Weight | 28KG |
| Cabinet Material | Iron Or Aluminum |
| Cabinet area | 0.9216m2 |
| Average Power Consumption | 225W |
| Defense Rate | IP65 |
|
|
| Brightness | ≥ 6000CD/m2 |
| Viewing Angle-Horizontal | 105±8° |
| Horizontal Flatness | <1mm/m2 |
| Max Power Consumption | ≤ 480W/m2 |
| Best Sight Distance | ≥12m |
| Brightness Homogeneity | >0.95 |
| Viewing Angle-Vertical | 50±10° |
| Vertical Flatness | <1mm/m2 |
| Average Power Consumption | ≤ 240W/m2 |
| Environment | outdoor |
|
|
| Grey Scale(linear) Levels | 12-16bit |
| Frame Frequency(HZ) | ≥60FPS/Second |
| Control Instruction | Control with PC,Real-Time display, Video Synchronization. |
| Colour | 16777216 |
| Rereshing Frequency | ≥200 HZ |
| Brightness Adjustment | 256Auto/MT |
| Input Signal | DVI/VGA ,Video,RGBHV,Composite Video Signal ,S-VIDEP,YpbPt(HDTV) |
|
|
| Actual Life | ≥100000 Hours |
| Attenuation Rate (after 3 years) | ≤20% |
| Discrete Malfunction Rate | <1/10000, None at factory |
| Working Limits | -20-50°C |
| MTBF | ≥1000Hours |
| Continuous Malfunction Dot Rate | None |
| Blind Spot Rate | <1/10000, None at factory |
| Humodity Limits | 10%-90%RH |
| Defense Function | Overtemperature/Overloaded/Power-fail/Overcurrent/Overpressure/Lightning protection/Correction Technology |
Shenzhen DGX TECHNOLOGY Co., Ltd. is a high -tech enterprise which specialize in LED RD, design, production, assembly and so on, DGX locate in Bao'an district of Shenzhen China which is established in 2008 and has got 150 employees.
Our major products are full color LED outdoor/indoor display screen, LED tube light, LED indoor decorating lighting, scenery lighting and building lighting.
DGX 's culture soul is "morals, development and promise", all of our employees echnics management, quality and service are based on this culture soul.
DGX' s LED display and lighting products apply to night club, KTV, disco, theatre, building, plaza, square, TV station, all the lighting, entertainment, and advertisement field, we have got high reputation in these industry.
DGX apply Taiwan and CREE LED chip to ensure the vivid video effect and Technicolor, we have got many successful project, in every China province, Australia, EU, America, Africa and so on.
DGX is famous for high quality, fast response after service.
DGX develop all the business by international eyesight and developing policy to push LED industry in China and all the world, we are looking forward to wining the future with all global customers.
