Application

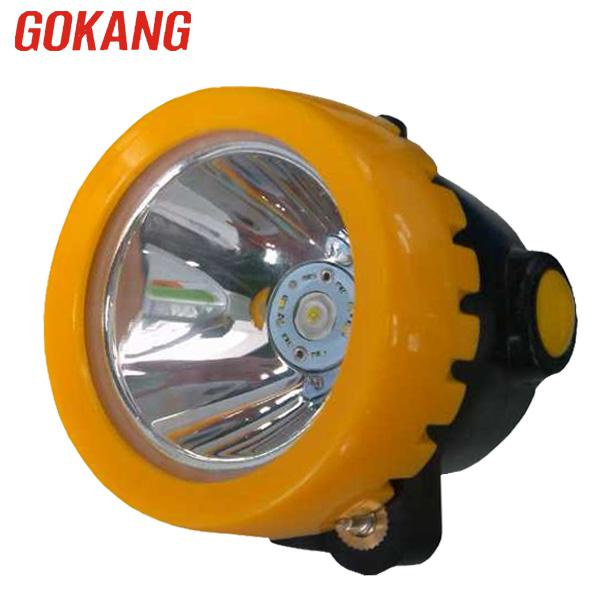

It adopts special intelligent chip, integrating on/off switch with LED light source control. The cordless cap lamp belongs to portable cordless miner's cap lamp, getting rid of the traditional large size battery case and cable with high illuminance, long discharging time and high efficiency. The weight of the whole lamp set is equivalent to the traditional lamp headpiece, with many lighting modes convenient to modulate. It can be charged directly on traditional charging rack for miner's cap lamp without changing the charging mode.
It is applied as a mobile lighting fixture in the underground coal mine environment where flammable or explosive gases mixtures exist.
Features
Light Weight
Safe, Reliable and Maintenance Free
Push Button Operation
Explosion Proof: Exs I
Weather proof: IP65
High Impact Resistance
High power 1w LED
SOS signal
Technical Specification
Rated capacity: 3Ah (Li-ion battery)
Rated Voltage: 3.7V
Continuous Discharging Time: > 20 hrs
Charging time: <8Hours
Charging voltage: DC(6-8)V
On/Off Function: High light-Low light-Strobe-Off(built-in SOS)
SOS signal Cycle: 7.2S
High light: Rated working current: 220mA
When lighting begins: >10000Lux
After 15 hours: >4000Lux
Low Light: >3000Lux
Frequency of Strobe: 10 Hz
Lamp life span: >2 years
Dimensions of Lamp Headpiece: Φ71x75mm
Weight: 200g
Working conditions Temperature: (0~40) degree centigrade
Related humidity: <90%
We're a ISO9001: 2008 Certified company that develop and manufacture coal mining safety equipment with the brand name of "GOKANG" since 1995. There are more than 50 skill engineers and 100 workes. Our factory locete in Xi'an China.
Cap lamps KL1.2Ex, KL4Ex, KL6Ex have passed ATEX/CE certification, Self rescuer K-S60 got CE(EN 13794) mark. They have been export to Chile, Brazil, Colombia, Mexico, America, United Kingdom, Swedden, Spain, Turkey, Russia, Ukraine, Kazakhstan, Romania, Iran, Tanzania, Georgia, Zimbabwe, India, Philippines, Vietnam, Australian, etc.
Welcome to Shaanxi Star Coal Mine Safety Equipment Co., Ltd.
Main Products:
1. Mining cap lamp
2. Mining self rescuer
3. Mining gas detector&sensor
