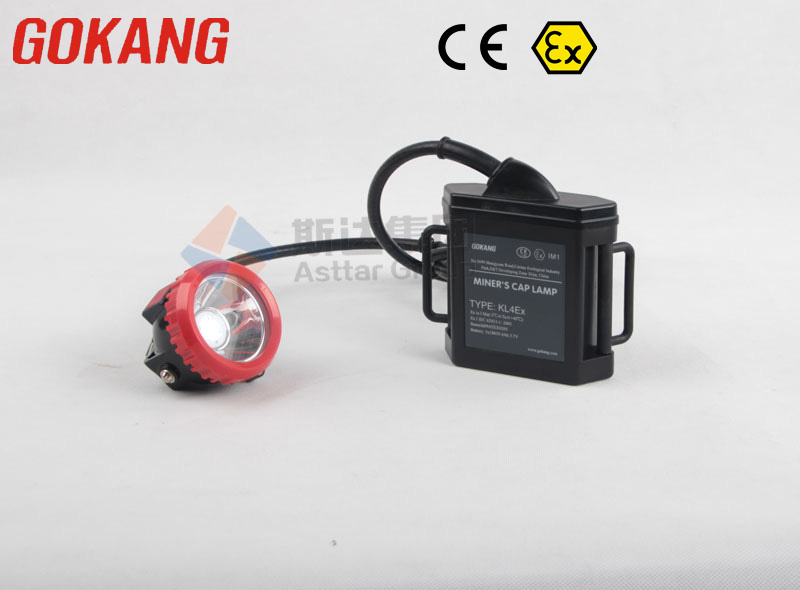

Model: KL4Ex
ATEX No.: Baseefa09ATEX0205-Issue2
Specification:
Rated voltage...3.7 V
Rated capacity...4 Ah
Lighting time...>16 hours
Explosion protection type...Ex ia I
Maximum Illumination of 1m apart from the lamp:
Beginning of lighting...>3500Lux
After 11 hours lighting...>3000Lux
LED:
Rated Voltage...3.7 V
Main Light current...0.22A
Sub-light current...0.06 A
Battery life...2 years
Charging time...<8 hours
Charging voltage...6-8 V
Ingress protection...IP65
Weight...600g
Exterior dimensions...120mmx130mmx105 mm
Features:
A) The miner's cap lamp consists of Li - ion batteries and a new generation LED light source.
B) The electronic switch controls the ON/OFF of the main light source and auxiliary light sources.
C) The miner's cap lamp has multi-functional protection.
D) A charging control circuit is fitted inside the headpiece of the miner's cap lamp. This circuit enables the miner's cap lamp to be charged on other manufacturers chargers
E) Due to the efficiency and long life of the LED light source, it is not necessary for this to be replaced before the battery life is exhausted.
F) The miner's cap lamp is compact, light in weight, maintenance free, has long usage life, is intrinsically safe and environmentally protected.
Standards:
The miner's cap lamp complies with the following Standards:
-EN 60079-0: 2012
-EN 60079-11: 2012
-EN 62013-1: 2011
-EN 50303: 2000
We're a ISO9001: 2008 Certified company that develop and manufacture coal mining safety equipment with the brand name of "GOKANG" since 1995. There are more than 50 skill engineers and 100 workes. Our factory locete in Xi'an China.
Cap lamps KL1.2Ex, KL4Ex, KL6Ex have passed ATEX/CE certification, Self rescuer K-S60 got CE(EN 13794) mark. They have been export to Chile, Brazil, Colombia, Mexico, America, United Kingdom, Swedden, Spain, Turkey, Russia, Ukraine, Kazakhstan, Romania, Iran, Tanzania, Georgia, Zimbabwe, India, Philippines, Vietnam, Australian, etc.
Welcome to Shaanxi Star Coal Mine Safety Equipment Co., Ltd.
Main Products:
1. Mining cap lamp
2. Mining self rescuer
3. Mining gas detector&sensor
