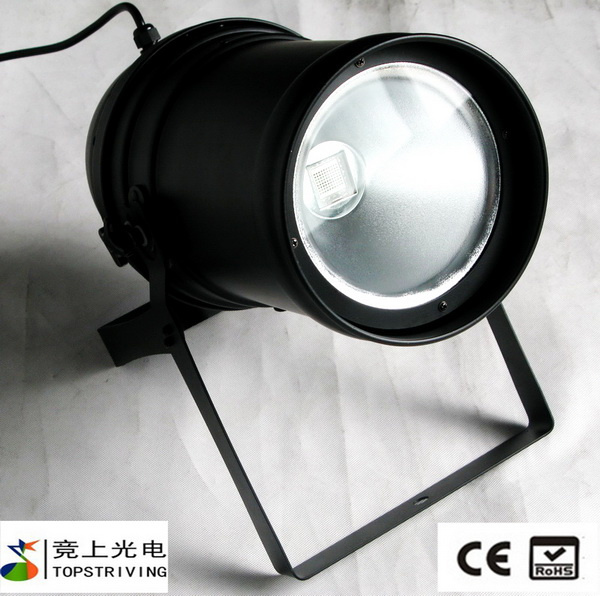

COB PAR 64 CW/WW
Using COB LED(chip on board) to achieve much more brightness and excellent ventilations and lowest energy consumption, with surface light source function plus the molded sandy finish reflector making light projections evenly distributed, covering more areas, really ideal for BARS, DISCO HALLS, SMALL SHOWS, CABARETS, MUSIC SHOPS, MOBILE DJs, etc.
Total 200W: 100W warm 3200K white COB high MCD LED plus 100W cold 7000K white COB high MCD LED
4 operational modes: DMX, Master/Slave, Stand Alone & Sound Active
8 sub menus with serial numbers for easy operations
Fans running speeds adjustable by the programming for less noise
Beam angle 40 degrees, field angle 80 degrees
2/4/7 DMX channel modes
Blue LCD display
Du hanging bracket included, 3-pin XLR In/Out
Shutter: Pulse effect; Random strobe slow to fast
Power Consumption: 230W max
Dimensions (LxWxH): 50*23*21cm/hanging brackets placed vertically
Weight: 4.45kgs
DMX FUNCTIONS: 2-CHANNEL MODE
Channel 1 warm white from darkness to full brightness
Channel 2 cold white from darkness to full brightness
DMX FUNCTIONS: 4-CHANNEL MODE
Channel 1 warm white from darkness to full brightness
Channel 2 cold white from darkness to full brightness
Channel 3 dimmer from darkness to full brightness
Channel 4 strobe
DMX FUNCTIONS: 7-CHANNEL MODE
Channel 1 warm white from darkness to full brightness
Channel 2 cold white from darkness to full brightness
Channel 3 dimmer from darkness to full brightness
Channel 4 strobe
Channel 5 color macros
Channel 6 color changing from slow to fast
Channel 7 color fade from slow to fast
|
DISTANCE(M) |
COLOR |
COLOR TEMPERATURE |
BRIGHTNESS(LUX) |
BEAM ANGLE |
FIELD ANGLE |
DIAMETER OF THE COVERING AREA(ROUND:M) |
|
1 |
WHITE |
3200K |
12000 |
40° |
80° |
1.70 |
|
2 |
WHITE |
3200K |
4000 |
40° |
80° |
2.50 |
|
3 |
WHITE |
3200K |
1200 |
40° |
80° |
3.20 |
|
1 |
WHITE |
7000K |
12000 |
40° |
80° |
1.70 |
|
2 |
WHITE |
7000K |
4000 |
40° |
80° |
2.50 |
|
3 |
WHITE |
7000K |
1200 |
40° |
80° |
3.20 |
