LED ceiling panel light professional manufacturer

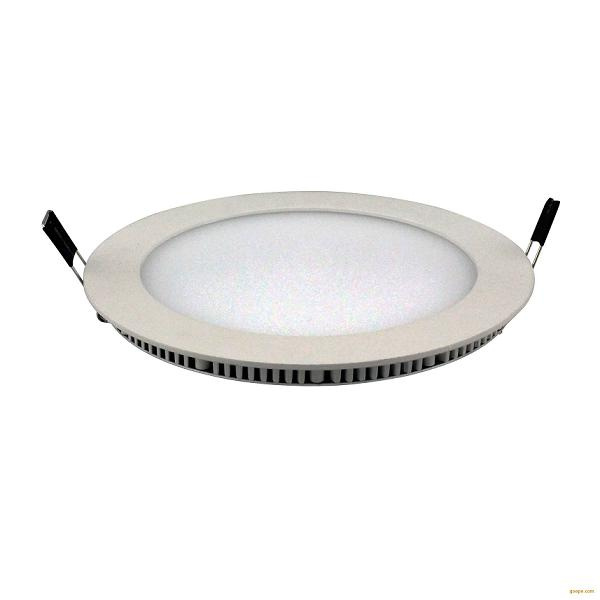

Dongguan Sourcechip Opto-electrical Tech Co., Ltd. is a company engaged in LED lighting equipment production has 12 years of Chinese enterprises. The LED ceiling panel light, we produce an embedded lighting to the ceiling. LED light source is not exposed, not to stimulate the skin! The electrical properties of the LED ceiling panel light are as follows:
Lamp body: Aluminium alloy
Diffusive lampshade: Light transmittance≥ 85%
Light source: 2835 /0.2W
Driver: Wide Input driver, EMC approved
Finish: Silver-gray
LED Model No.: SC-PLA015W01-30/40/60
Dimensions (mm): Φ180× H18
Rated power: 13W
Consume power: 15± 1.5W
Input Voltage: AC 100-240V
Input current: 860mA± 5%
Efficiency: ≥ 85%
Cutout: Φ168± 2mm
P. F: ≥ 0.80
Light Source Luminous flux(lm): 1050± 100 Lm/1000± 100 Lm/950± 100 Lm
Lighting CCT: 6000k± 500k/4000k± 300k/3000k± 200k
Lighting View Angle: 120°
Lighting CRI: ≥ 80
Working Temp.: -10~40 / R. H. ≤ 85%
Storage Temp.: -30~65
Life span: 25, 000 HR
IP Rate: IP20
The LED ceiling panel light applies auto show, jewelry, clothing, high-grade professional window, counter, Home Furnishing such key lighting places, is the ideal light source to replace traditional halogen tungsten lamp and metal halide lamp. If you want to buy the LED ceiling panel light, please contact us by e-mail.
Sourcechip LED ceiling panel light Tel: +86-769-81608082
Sourcechip LED ceiling panel light Fax: +86-769-81608083
Sourcechip LED ceiling panel light website: http://www.sc-ledlights.com/
Sourcechip LED ceiling panel light Address: No. 2 Min Yi Road, Wusha Community, Chang'an Town, Dongguan, Guangdong, China
Dongguan Sourcechip Opto-electrical Tech Co., Ltd.
Xnlonglong01
Sourcechip China LED Lighting Co., Ltd. is located in China's famous manufacturing town _Wu Sha Community in Chang'an Dongguan on Min Yi Road. It now has hundreds of dust-free workshop covering 7000 square meters, owns internationally advanced LED DIP Automatic packaging line & SMD automatic packaging line. It can produce 1000kk products per year.
Sourcechip Opto-electrical Tech Co., Ltd took the lead in passing the ISO9000 certification in 2007 successfully. R&D had already imported ISO/TS16949 automobile quality management standard andits five core managing tools including APQP and FMEA etc. We are striving to get high level quality guarantees the whole process form the previous planning to formation. In the meantime, we formulatedscientific and professional experimental center and high-quality quality control (QC) team so as to systematically ensure superb quality from a strategic height.
