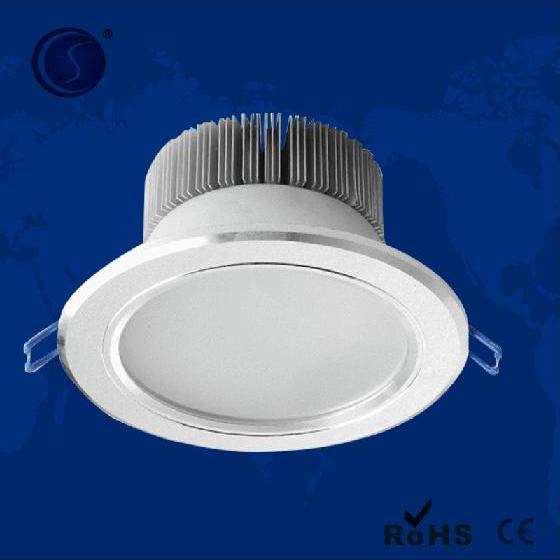

150mm LED down light sales of new product
Dongguan Sourcechip Opto-electrical Tech Co., Ltd. For many years engaged in the production and R & D of LED lamp. We have LED lamp production development experience 12 years. The 150mm LED down light technology is a green lighting technology, products do not contain mercury, less waste, the manufacturing process there is almost no pollution; Semiconductor lighting has the characteristic, Recyclable, plays an important role in economic and social sustainable development.
The 150mm LED down light electrical properties for the:
Lamp body: Aluminium alloy
Diffusive lampshade: Light transmittance≥ 85%
Light source: SMD 5630
Driver: Wide Input driver, EMC approved
Finish: Silver
LED Model No.: SC-DLF011W01-30/40/60
Rated power: 9W
Consume power: 11± 1W
Input Voltage: AC 100-240V
Efficiency: ≥ 80%
Cutout: φ 110
P. F: ≥ 0.8
Light Source Luminous flux(lm): 850± 100 lm/800± 100 lm/780± 100 lm
Lighting CCT: 6000k± 500k/4000k± 300k/3000k± 200k
Lighting View Angle: 110°
Lighting CRI: ≥ 70
Working Temp.: -10~40 / R. H. ≤ 85%
Storage Temp.: -30~65
Life span: 25, 000 HR
IP Rate: IP20
The 150mm LED down light is a new type of light source, light and soft, beautiful appearance, favored by the majority of customers.
Dongguan Sourcechip Opto-electrical Tech Co., Ltd.
Sourcechip 150mm LED down light Tel: +86-769-81608082
Sourcechip 150mm LED down light Fax: +86-769-81608083
Sourcechip 150mm LED down light website: http://www.sc-ledlights.com/
Sourcechip 150mm LED down light Address: No. 2 Min Yi Road, Wusha Community, Chang'an Town, Dongguan, Guangdong, China
Xnlonglong01
Sourcechip China LED Lighting Co., Ltd. is located in China's famous manufacturing town _Wu Sha Community in Chang'an Dongguan on Min Yi Road. It now has hundreds of dust-free workshop covering 7000 square meters, owns internationally advanced LED DIP Automatic packaging line & SMD automatic packaging line. It can produce 1000kk products per year.
Sourcechip Opto-electrical Tech Co., Ltd took the lead in passing the ISO9000 certification in 2007 successfully. R&D had already imported ISO/TS16949 automobile quality management standard andits five core managing tools including APQP and FMEA etc. We are striving to get high level quality guarantees the whole process form the previous planning to formation. In the meantime, we formulatedscientific and professional experimental center and high-quality quality control (QC) team so as to systematically ensure superb quality from a strategic height.
