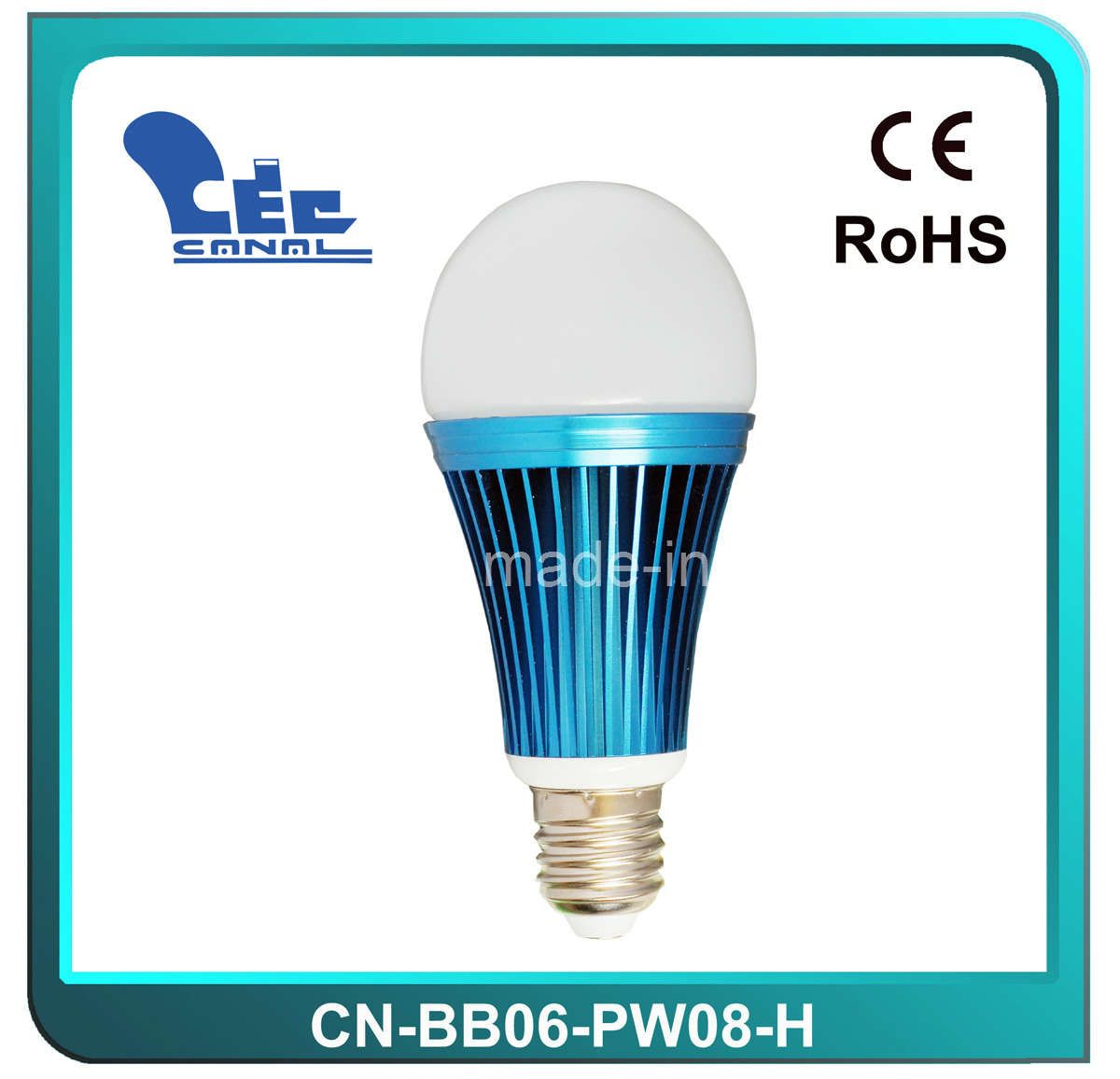

LED bulb/LED bulb light
[Products Features]
1. Perfect industrial design: Excellent radiation combine with a beautiful appearance.
2. Safety: Using a high voltage insulating materials.
3. Wide-frequency voltage design: AC96-265.
4. Energy-saving and environmentally friendly.
5. Long life span, more than 35, 000 hours(Light is less than 8 hours a day).
[Specification]
Input Voltage: 96-265V AC
Frequency: 50-60Hz
Input Power: 8W(SMD 3528)
Luminous Efficiency: >80lm/W
Rendering Index: >75
Base Type: E27
Power factor: 0.8
Working Temperature: -30-+50
Color Temperature: Warm white 2800-3000K; Pure white 5500-6000K
Certificate: CE & RoHS& PSE
The advantages of our products
1. LED bulb light housing are adapted high quality aluminum material with very good heat elimination. Indoor use only.
2. Imported high brightness SMD3528 (3 chips) as the light source. The light attenuation is below 5% within 5000 hours.
3. The LED bulb cover adopts high transmittance milk PC material. The milky cover can reach the 85% light transmittance4. The driver is build-in constant current power design to ensure the stability of the fixture.
5. Working voltage can be selected: 12V DC, 110V/220V AC, 96-265V AC.
6. Single color of pure white and warm white for option or other colors.
Remarks: (LED bulb)
1. Only use for indoor light
2. Installed in the environment of waterproof and good heat dissipation
3. Avoid touching the heat dissipation cover when the product is working
4. Avoid glaring the illuminant light when the product is working.
Trade Terms:
1) Lead time: Sample order 5-7 days, Formal order: 15-20 days
2) Payment: T/T and Western Union
3) Shipping: By Express, By Air or By Sea
4) Logo: According to your requirement
5) Discounts are offered based on order quantities
6) Minimum Quantity: 100PCS
|
Model No. |
Power |
LEDs type |
LED Quantity |
Voltage |
Color temperature |
Luminous flux |
|
CN-BB06-WW08-H |
8W |
SMD3528
(3 chips) |
35 pcs |
AC96-265V/ AC220V |
2800-3000K |
560-640lm |
|
CN-BB06-PW08-H |
8W |
SMD3528
(3 chips) |
35 pcs |
AC96-265V/ AC220V |
5500-6000K |
520-600lm |
|
LED Type: |
Manufacture Experience: 15years |
|
Beam angle: 180 degree |
Size: 66*134mm |
|
Certificate: CE/ROHS |
Warranty: 2 Years |
Life: 35, 000Hours;
Power Factor: 0.85 |
Material: Aluminum+ Glass |
|
Color rendering index: 0.8 |
Reflector efficiency: 90% |
|
Trade Terms: FOB/EWX/CIF |
Delivery: 3-20Days According quantity |
|
NON-dimmable |
|
Jiaxing Canal Optoelectronic Technology Co., Ltd.Is one of the highest-regarded amongst high-tech enterprises from an R&D, production, sales, and services standpoint.The main products including LED spot lamp, LED tube, LED bulb, LED down light, LED street light, LED industrial light and LED plant growing light ect.
The company brings together a highly-experienced professional technology team from both mainland China and Taiwan from the electronics, optical, electrical, material, environmental protection, and many directly related areas of operations and backgrounds;This having been the case from the initial set-up of the company from its infancy to the present time.It has built strong partnerships with universities and colleges, developed a focus on leading the world in revolutionary lighting products, especially in LED core technologies in order to enable major breakthroughs and modern challenges, has especially focused on solving the constraints arising in LED lighting product development - such as addressing issues relating to high brightness, low-light attenuation with a prolonged life in environmentally-friendly LED-utilizing products - and is committed to environmental protection and energy savings for all walks of life where it actively joins hands in creating a friendly and energy-saving, harmonious society.
The company and its staff adhere to a "green lighting, energy saving, highest quality, and best priority of services provision" business philosophy with the aim at producing high-energy-savings, long-life LED lighting products of every kind with the following standards in mind.
