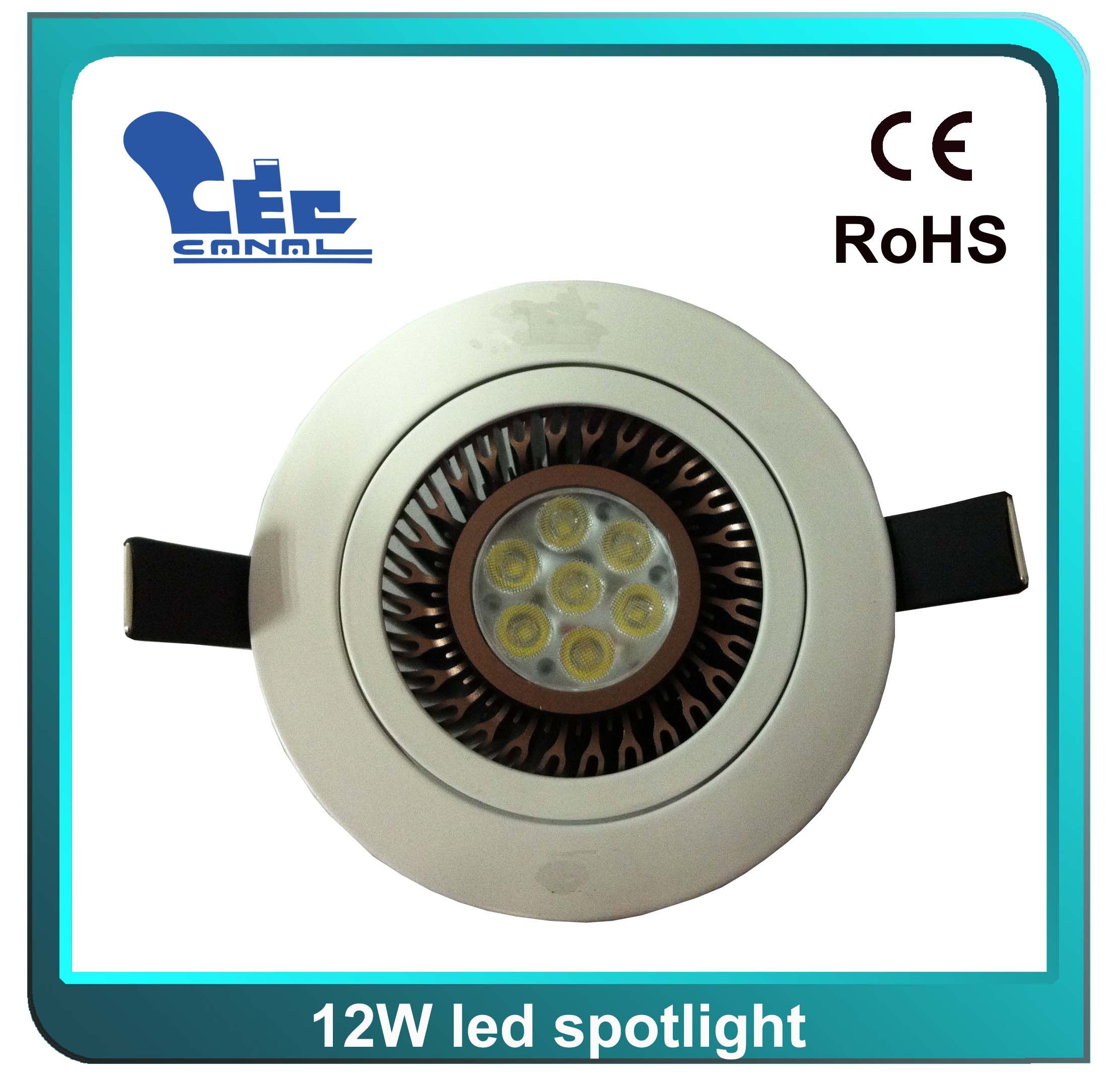

LED spotlight
Input Voltage: 96-265V AC
LED type: High power LEDs
Frequency: 50-60Hz
LED Power: 12W
Luminous Flux: 840-960lm
Rendering Index: >75
Power factor: 0.9
Working Temperature: -30-+50
Housing material: Aluminum & PC lens
Color Temperature: Warm white 2800-3000K/ pure white5500-6000K
Certificate: CE & RoHS
Products features:
1. Light casing with high quality aluminum alloy materials is beautiful and simple;
2. Sandblasted or plated surface, durable, antioxidation, No UV, no radiation and environmental protection;
3. In general the life span is more than 35, 000 hours(Light is less than 8 hours a day).
4. Size and shape are similar to conventional lamp, applying international standard lamp base.
Applications:
Suitable for showrooms, museums, galleries, office and other accent lighting. Also widely used in shopping malls, bars, cabinets, lighting exhibits, such as jewelry, fashion show.
The advantages of LED spotlight
1. LED spotlight housing are adapted high quality aluminum material with very good heat elimination. Indoor use only.
2. Imported high brightness high power LEDs as the light source. The light attenuation is below 5% within 5000 hours.
3. The LED spotlight lens adopts high transmittance PC materials. The beam angle is 15degree, 25degree, 30degree, 45degree
4. The driver is external constant current power design to ensure the stability of the fixture.
5. Working voltage can be selected: 12V DC or 96-265V AC.
6. Single color of pure white and warm white for option or other colors.
Remarks: (LED spotlight )
1. Only use for indoor light
2. Installed in the environment of waterproof and good heat dissipation
3. Avoid touching the heat dissipation cover when the product is working
4. Avoid glaring the illuminant light when the product is working.
Trade Terms:
1. Lead time: Sample order 5-7 days, Formal order: 15-20 days
2. Payment: T/T and Western Union
3. Shipping: By Express, By Air or By Sea
4. Logo: According to your requirement
5. Discounts are offered based on order quantities
6. Minimum Quantity: 10PCS
|
Model No. |
Power |
Size |
LED Quantity |
Assembly Diameter |
Voltage |
Color temperature |
Luminous flux |
|
CN-DL-02-05 |
5W |
2.5” |
3pcs
High power LEDs |
75mm |
AC96-265V |
2800-3000K (Warm white) |
350-450lm |
5500-6000K
(Pure white) |
|
CN-DL-02-08 |
8W |
2.5” |
5pcs
High power LEDs |
75mm |
AC96-265V |
2800-3000K (Warm white) |
560-720lm |
5500-6000K
(Pure white) |
|
CN-DL-02-12 |
12W |
3” |
7pcs
High power LEDs |
95mm |
AC96-265V |
2800-3000K (Warm white) |
840-1080lm |
5500-6000K
(Pure white) |
|
Beam angle: 15 degree/25degree/30degree/45 degree |
Manufacture Experience: 15years |
|
Certificate: CE/ROHS |
Size: 2.5” /3” |
Life: 35, 000Hours;
Power Factor: 0.85 |
Warranty: 2 Years |
|
Color rendering index: 0.8 |
Material: Aluminum+ PC |
|
Trade Terms: FOB/EWX/CIF |
Reflector efficiency: 90% |
|
NON-dimmable |
Delivery: 3-20Days According quantity |
