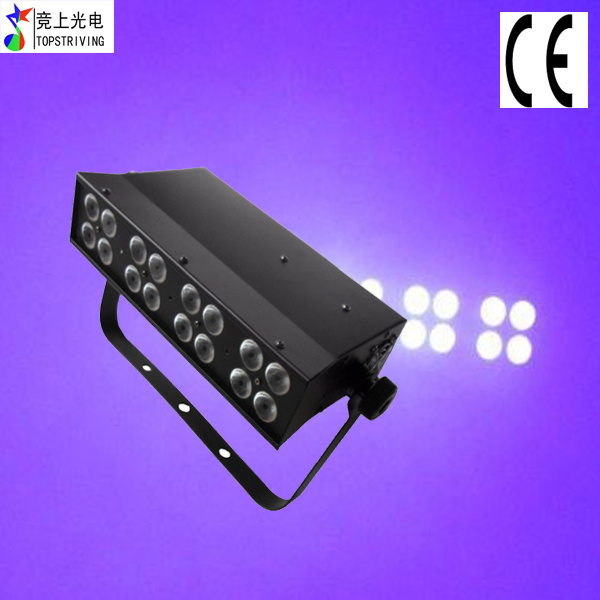

LED BAR UV 16
TECHNICAL SPECIFICATIONS
Power supply: 90-240V AC 50/60Hz
Power consumption: 50W
DMX-control-channels: 5
DMX-512-connection: 3-pin XLR
Number of LED: 16 high MCD UV 3W LED(ultraviolet)
40° Beam angle
Dimensions: 320*60*180mm
Weight: 3 kgs
Detailed parameters:
Great for performance stages, theatrical productions and special effects installations
Electronic power supply AC 90-240V 50/60Hz
Full Master/Slave operation in any operational mode,
Color strobe effect and long life operation
Black housing with 16*high MCD 3W UV LEDs, ultraviolate
Producing various colors, red, green, blue, yellow, white, pink, purple, cyan
Low heat, Long Life LEDs (100, 000 hrs. )
Operational Modes: DMX 512 protocol, Sound Active, Auto, master/slave
Color strobe effect slow to fast, electronic dimming from 0-100%
Uses 5 DMX Channels
Stand Alone, Master/Slave
Linkable via 3-pin XLR cable, hanging brackets included
Dual brackets allowing fixture to be hung or set on the ground
4-digital LED display
ITEM DIMENSION: 32*6*18CM
ITEM WEIGHT: 3KGS
OUR SERVICE:
1. Your inquiry related to our products or prices will be replies in 24 hours.
2. OEM&ODM, any your customized lightings we can help you to design And put into product without any charges
3. Shipping method: DHL, UPS, FedEx, TNT door to door service, by sea, by air, etc
4. Promised After-sales Service
5. Definitely high brightness with good material inside
6. Customised LED Quantity Design
| FIVE DMX channels |
| Channel 1 | UV(ultraviolet) color from small to big brightness(dimming) |
| Channel 2 | strobe from slow to fast |
| Channel 3 | dimmer,color macro |
| 0-30 | dimmer on at ch1 |
| 31-255 | color macro, the brightness can be adjusted by the master dimmer at ch1 |
| Channel 4 | dimmer, increasing brightness, then decreasing brightness, colors following one by one |
| 0-85 | dimmer on at ch1/ch2/ch3/ch4 |
| 86-169 | increasing brightness, then decreasing brightness, the running speed can be adjusted by ch8 |
| 170-255 | color following one by one, the running speed can be adjusted by ch8 |
| Channel 5 | running speed adjustments |
