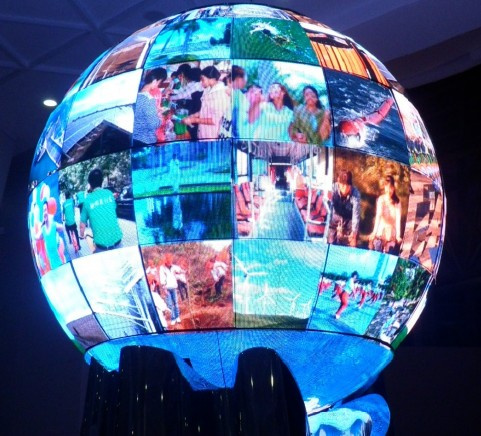

LED ball display extendable
Key Benifits
360° Display with best view effects
Installation for everywhere easily
Professional audio processing,
Various signal supportable and livebroadcast realizable
Strong visual impact with
Bar display element design
Display size optional
Specifications:
Physical pixel pitch: 4mm
Best view distance: 4-15m
Physical density: 62, 500 pixels/sqm
Brightness: ≥ 2, 000CD/sqm
LED chip: SMD2020 1R1G1B
Beam angle: H: 120° V: 100°
Color processing: 16bit
Refresh frequency: ≥ 1, 000Hz
Protection grade: IP31
MBF: ≥ 10, 000Hrs
Service life: 100, 000Hrs
Malfunction DOT rate: <0.0001
Working voltage: 110-240Vac ± 10% 50-60Hz
Working temperature and Humidity: -30~+50, 10%~90%RH
Communication cable: Length(CAT5 cable≤ 1, 430m; Optical≤ 20km)
Signal input: RF, S-video, RGBHV, YUN, YC&composition, etc
Project Description
Thanks to the uniquely design of CLT-P4 scaleable LED display, it entered Into market 2012 successfully. With the latest installation in the Low-Carbon Technologies Museum in Hangzhou, we have been awarded as Top-Ten with Professional and special technology in LED display field.
Shenzhen CLT Technology Co., Ltd., is a professional LED display high-tech company, specialized in R&D, manufacture, sales and service of LED display, provide integrated LED display solutions, our products cover various indoor and outdoor application such as rental, advertising, mobile, stadium, LED curtain, curve screen etc.
Our company developed rapidly recent years, we became the largest SMD display manufacture at the end of 2008, CLT industry park which covers 20000m2 was put into use in 2009, Own 8 modernized dustless, anti-static production lines and top class production equipments, including 6 new Panasonic high speed SMT machines and large leadless reflow oven. We¡ ¯ Ve realized full automation manufacture, highly secure reliability of the LEDs, which can satisfy our customers¡ ¯ Various requirements. CLT performs according to the standard of ISO9001: 2008. Our products passed the international Certificates as CE¡ ¢ RoHS¡ ¢ CCC¡ ¢ FCC etc, which ensure the reliability of LED display and fast delivery request.
CLT carry out the distributor management mode which share benefits and develop with customers, we provide the ODM&OEM service for LED display factories, distributors and engineering contractor. In June, 2009 we held the first distributors meeting in Shenzhen, which also was the first one in LED industry. Now we have the complete distributor network except Tibet and Taiwan in China, which provide the fast well local service for customers.
