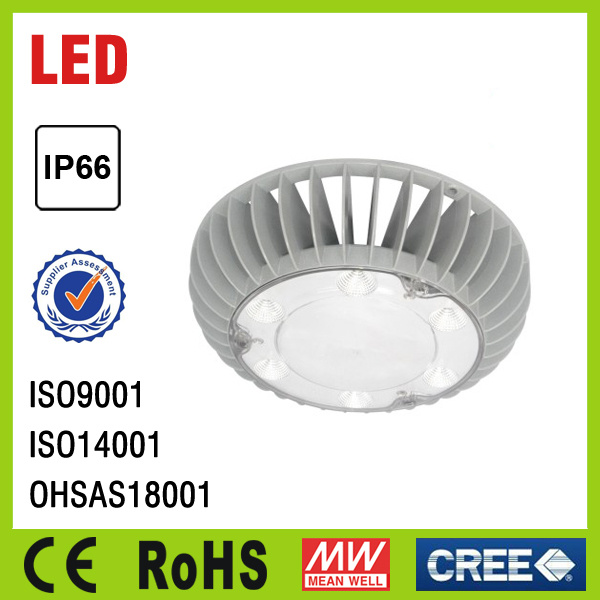

IP66 high efficiency fixture led ceiling light
Application
It is an ideal lighting solution for the factory, station, tunnel, control room, transformer room and some other indoor places with low bay roof.
Characteristics
1. The unit efficiently utilize the light, utilization rate can reach 97%. Besides, it has a good performance of illuminance uniformity, glare free, can avoid eyestrain to the worker.2. Vane type structure housing accelerate the heat dissipation, so that to ensure the LED service life.
3. It adopts American CREE LED as light source, can save 60% or more on energy than the metal halide lamp
4. Equipped with world top ranking brand electrical appliance, make the lamp's performance more stable and efficient.
5. The unit have excellent electromagnetic compatibility, will not cause interference to the other device or the electric power transmission network.
6. The anti corrosion, abrasion proof, power coated cover which is dust proof, water proof , make the lamp an excellent option for all kinds of high stress environment.
7. 10W 25W with input voltage 18-43VAC / 18-55VDC is available.
Main specification
Input Voltage |
90-264VAC /
127-370VDC |
Output Voltage |
24VDC |
Frequency |
50Hz / 60Hz |
Ingress Protection |
IP66 |
Anti Corrosion Grade |
WF2 |
Insulation Grade |
I |
Space Height Ratio |
2 |
Leading-in cable diameter |
Φ6mm -Φ8mm |
Dimension |
Φ240x65mm |
Net Weight |
1.4Kg |
Ordering reference
Model
Number |
Input
Voltage |
Light
source |
Rated
wattage
(W) |
Light
output
(lm) |
Equivalent to |
MH |
LVD |
CFL |
HP |
ZY5301-L10 |
90-264VAC
or 127-370VDC |
LED |
10 |
1,356 |
/ |
30W |
36W |
1x36W |
ZY5301-L25 |
LED |
25 |
3,378 |
70W |
60W |
2x36W |
2x36W |
ZY5301-L40 |
LED |
40 |
4,890 |
100W |
100W |
120W |
2x36W |
Optional |
ZY5301-L10-D |
18-43VAC
or 18-55VDC |
LED |
10 |
1,356 |
/ |
30W |
36W |
1x36W |
ZY5301-L25-D |
LED |
25 |
3,378 |
70W |
60W |
2x36W |
2x36W |
Metal Halide Lamp: MH
Electrodeless Lamp: LVD
Energy Saving Lamp: CFL
High Pressure Mercury Lamp: HP
