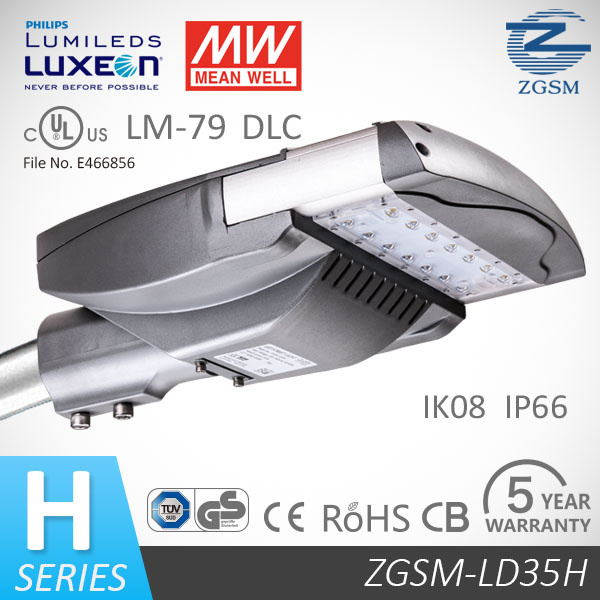

IP66 35W LED Street Light with UL/Ik08/Lm-79
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CIF,FCA |
Min Order: |
1/Piece |
Pay Type: |
T/T |
Major advantages of our H Series street light:
1. PHILIPS LUXEON® ES luminous source with LM-80 report.
2. High Reliable MEANWELL® HLG driver with 5 Years Warranty.
3. Over then 67, 000 hours operation lifetime.
4. Have TypeI, TypeII and TypeIII three Photometric Types suitable to different road conditions.
5. IK08&IP66.
6. Innovative pole tter not only with the horizontal and vertical installation features 15° Adjustable function for each installation direction.
7. Have UL, DLC, RoHS, CE, GS, CB certificated
8. 5 years Warranty
Datasheet
Electrical Specifications |
Nominal Wattage | 35W |
Nominal Voltage (AC) | 100-240V/277V, 50/60Hz |
Nominal Voltage (DC) | 12V/24V |
Maximum Current (AC) | 0.36A-120V, 0.18A-240V, 0.16A-277V |
Maximum Current (DC) | 3.24A-12V, 1.62A-24V |
Optimal Operating Temperature | - 40 ºC to 50 ºC |
Operating Humidity | 10% to 90% |
Power Factor (PF) | >0.9 |
Driver Efficiency | >90% |
Photometric Specifications |
Correlated Color Temperature (CCT) | 3800-4100K, 5000-5650K, 5650-6300K |
Lumen Output | 3325 lm ( +/- 5% ) |
Photometric Type | 1S, 2M, 3M, 5S |
Color Rendering Index (CRI) | ≥70 ( +/- 5 ) |
Mechanical Specifications |
Ratings | IP66, IK08 |
Lumen Maintenance | >67000 hours -L70, @25ºC(77ºF) |
Housing | Die-casting Aluminum |
Heat Raditor | Anodized Aluminum |
Lens | PC |
Fixture Dimension | 431 x 316 x 136 mm / 17 x 12.4 x 5.4 inches |
Fixture Weight | 5.3 kg / 11.7 lbs |
Aperture Diameter | Φ60 mm / Φ2.4 inches |
Packing Informations |
Packing Type | 1 unit / ctn |
Packing Dimension | 480 x 370 x 200 mm / 18.9 x 14.6 x 7.9 inches |
Packing Weight | 6.3 kg / 13.9 lbs |
Features
1 | No UV | 12 | Significant energy savings |
2 | Long life | 13 | Wide input: 100 - 240V AC |
3 | Waterproof | 14 | Stable and efficient LED driver |
4 | Instant on/off | 15 | Significantly less generated heat |
5 | Mercury free | 16 | Resistant to shock and vibration |
6 | Maintenance free | 17 | Optimal heat sinking performance |
7 | Improved visibility | 18 | LED's maintain flux up to 100 lm/W |
8 | Ease of installation | 19 | Temperature compensation technology |
9 | Copper free aluminum | 20 | Exclusive appearance design with patents |
10 | Superior optical design | 21 | High quality and brightness LED light source |
11 | More than twice the average life of metal halide and high pressure sodium |
Prod Model: |
ZGSM-LD35H |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
UL File: |
E466856 |
Nominal Wattage: |
35W |
Nominal Voltage: |
AC 100-240V, 50/60Hz |
Warranty: |
5 Years |
Ik: |
Ik08 |
IP Rating: |
IP66 |
Certification: |
CE, EMC, Energy Star, FCC, GS, RoHS, SAA, Saso, UL |
LED Chips Brand: |
Philips Lumileds |
Lamp Body Material: |
Aluminum |
With Light Source: |
With Light Source |
Application: |
Square, Highway, Garden, Municipal Road |
Color Temperature: |
3800-4100k;5000-5650k;5650-6300k |
Input Voltage: |
100-240V/277V |
Power: |
35W |
Power Supply: |
AC or DC |
Welcome to ZGSM. For over 8 years, ZGSM has been dedicated to creating a better quality, eco-friendly, efficient lighting environment through diverse businesses of LED lighting, LED traffic signal, solar LED lighting system and more.
Company Information
Founded in 2005, Hangzhou ZGSM Technology Co., Ltd is located in Linglong Industrial Park, the west of Hangzhou. ZGSM is a hi-tech and privated Enterprise devoted to R&D, producing and selling of high quality LED Street lights, LED high Bay Lights, LED Canopy Lights, LED Gas Station Lights, LED Tunnel Lights, LED Tube Lights, LED Traffic Light and Solar Street Light and so on. As one of the patent model enterprises and the first batch of saving energy seriveice company in Zhejiang Province, we have registered more than fifty products; We are also the members of Illuminating Engineering Society and Semiconductor Industry Association in China.
ZGSM Research
ZGSM boasts a standard production line, import and export priority and the expertise of management, development, manufacturing and marketing team. Our products covers "LED street lights, LED high bay lights, LED gas station lights, LED Canopy Lights, LED Flood Lights, LED tunnel lights, LED tube lights and; LED traffic lights; Solar LED street lights systems. Our products take the advantage of energy saving, environmental friendly, long life and so on. Been widely used in indoor/outdoor lighting, city lighting, traffic instruction, solar power generation projects and other fields.
Customer and Partner Experience
ZGSM has passed ISO9001 and ISO14001 international quality and environmental management system certificates. And all the products has passed CE, RoHS, CB, GS, UL, DLC, LM-79, LM-80 etc. Our D&R center is cooperating with many research institutes at domestic and abroad to develop the projects to provide customers with high-efficient, energy-saving, eco-friendly products and technical services. At present, our products have been exported to more than 100 countries and regions. ZGSM owns distribution network and after-sales service in 30 provincial capital and listed cities in China. We also have participated many important constructive projects over the world, and gained high praise from our customers.
Our Values
Through innovative, reliable products and services; Talented people; A responsible approach to business and global citizenship; And collaboration with our partners and customers, ZGSM is taking the world in a premium lighting experience.
