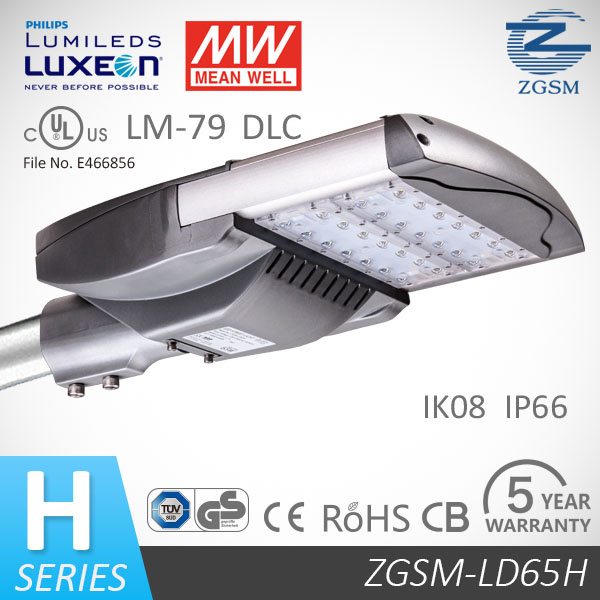

IP66 Module Designed 65 Watts LED Street Light with UL, Dlc, CB, SAA
| Price: |
US $ 152-170/Piece |
| Trade Terms: |
FOB,others |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |

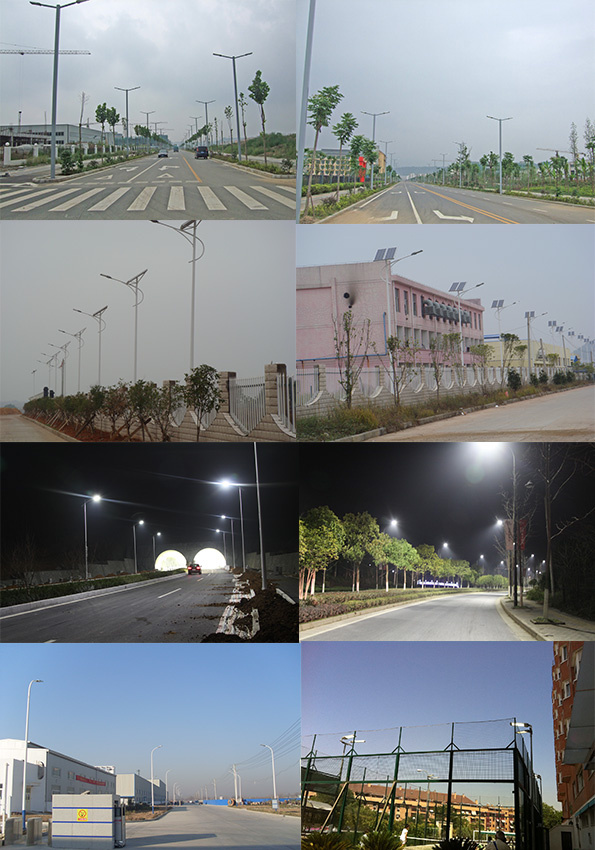

ZGSM H series high power LED street lights are designed for use in city streets, municipal roadways, bridges, housing projects, public parks, parking lots, yards and gardens, and other settings with needs for high-brightness general illumination during the night time.
Features:
1. LED's maintain flux is up to 110 lm/w
2. Significant energy savings
3. Instant on/off
4. Maintenance free
5. Mercury free
6. Superior light quality
7. No UV
8. Simple installation
9. Resistant to shock and vibration
10. Temperature compensation technology for long life
11. Copper free aluminum
12. Superior Vision-Care
| Specifications |
| Model | ZGSM-LD65H |
| LED Brand | PHILIPS LUXEON® T |
| Driver Brand | Meanwell HLG series |
| Norminal Wattage | 65W |
| LED Module Quantity | 2 modules |
| Input Voltage | 100-240V, 277V, 347V, 480V AC; DC24V |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >110lm/w |
| Lamp Rated Lumen output | 7150 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 4000 5000 or 5700K |
| Photometric Type | Type I Medium;Type II Medium;Type III Medium; TypeV,Short |
| Optimal Operating Temperature | 25° |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 67000 hours -L70, @25 ºC (77 ºF) |
| Wind Index | Force 12 |
| Body and Shell Materials | Anodized Aluminum |
| IP Rating | IP66 with test report |
| IK Rating | IK08 with test report |
| Certification | CE,ROHS,GS,CB,UL,cUL,DLC,LM-79 |
| Optional Function | 1-10V DC or PWM Signal or Resistance Dimming |
| Timer/Photocell Control |
| Warranty | 5 years |
|
| Packing Details |
| Fixture Dimension | 504x316 x136 mm |
| Fixture Weight | 6.1 kg /13.4 lbs |
| Packing Dimension | 555x370 x200 mm |
| Packing Weight | 7.3 kg /16.1 lbs |
| Prod Model: |
ZGSM-LD65H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Life Span: |
100,000hrs |
| Power Source: |
AC |
| Electric Current Type: |
AC |
| Emitting Color: |
White |
| Usage: |
Street, Parking Lot, High Way, Expressway |
| Base Material: |
Aluminum |
| Diffuser: |
Tempered Glass |
| Ik Rating: |
Ik08 |
| Power Supply: |
AC |
| Color Temperature: |
Pure White |
| Lamp Body Material: |
Aluminum Alloy |
| Application: |
Parking Lot |
| IP Rating: |
IP66 |
| Certification: |
CE, FCC, RoHS, TUV |
| With Light Source: |
With Light Source |
| LED Chips Brand: |
Philips Lumileds |
| Power: |
35W-230W |
| Input Voltage: |
90-264V, 277V, 347V, 480V AC/12/24V DC |
