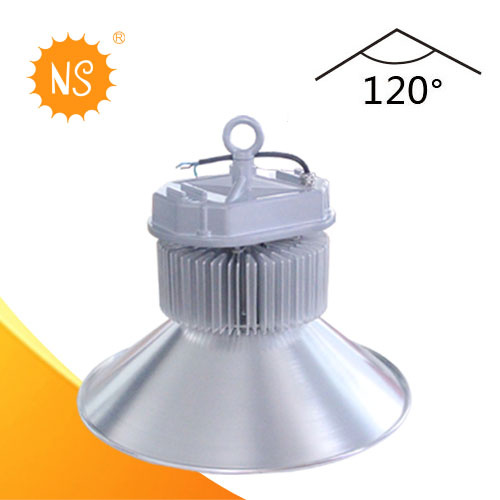

IP65 outdoor industry high power 100w led high bay light
Specifications:
1. Beam angle: 120° , 90° 45°
2, Luminous flux: 9405lm ± 10%
3. Professional LED lamp replacing HPS 300W
4. Size: Dia 500mm * H466mm
5. Lamp base: 2 PIN wires
6. Input voltage: 85-265VAC
7. Power consumption: 100W ± 10%
8. LED source: 1pc 100W LED
9. Color temperature:
1)Cool white: 5500~6700K
2)Natural white: 4000~5000K
3)Warm white: 2700~3500K
IP65 outdoor industry high power 100w led high bay light
1. Long-life with over 50, 000Hrs. More than 50 times of tranditional tungsten flilament lamp
2. LED High Bay Light overturns luminescence properties of the tranditional light source, with its light weight, small volume, green environmental protection...Do not contain lead, mercury and other pollution elements, no pollution to the environment. Also Impact resistance, and have strong anti-thunder, no ultraviolet radiation (UV) and infrared (IR).
3. This product adopts the micro group of composite phase change of high power LED light source radiator trough, superconducting heat capacity, strong cooling capacity, cooling power consumption, low cost and high reliability.
4. Working under low voltage heat, safe and reliable. When the surface temperature ≤ 50 º C (ambient temperature Ta = 25 º C pm); Wide voltage range, universal. The full voltage range constant current between 100 v to 277 VAC, to ensure the life and brightness is not affected by voltage fluctuation.
5. Reduce the line loss, pollution-free for grid. Power factor ≥ 0.9. Harmonic distortion ≤ 20%, or less. The EMI in line with the global index, reduced the energy loss of the power supply line and avoid the pollution of high frequency interference to power grid.
6. Light distribution technology makes LED light source into surface light source, increasing the light area, eliminate the glare, sublimation visual effect, eliminate visual fatigue;
7. Products are suitable for factory workshop, station, large warehouses, toll station, gas stations, exhibition hall, gymnasium, industrial and mining areas, and other higher requirements of half- outdoor and indoor places.
8. We are pursuit of safe and reliable products, perfect design, durable.
Advantages:
9. Up to 80% energy saving compared to conventional lamps.
10. Lifetime of 50, 000 hours
IP65 outdoor industry high power 100w led high bay light Application
Indoor using, such as warehouse, lobby, gas station, supermarket, etc...
|
Product Name |
NSIL500-100W(100w led industrial light) |
NSIL-120W(120w led industrial light) |
NSIL420-150W(150w led industrial lights) |
|
Wattage |
100W |
120W |
150W |
|
Beam Angle |
120°,45° |
|
Light Source/Count |
1pc 100W LED |
1pc 120W LED |
1pc 150W LED |
|
Lamp Base |
2 PIN wires |
|
Power consumption |
116W ±5% |
130W ±5% |
167W ± 5% |
|
Luminous flux |
8000lm ±5% |
10500lm ±5% |
12000lm ± 5% |
|
Color Temperature Standard |
Cool white: 5500~6700K |
|
Natural white: 4000~5000K |
|
Warm white: 2700~3500K |
|
Input voltage |
85-265VAC |
|
LED Emitter Life |
50,000 hours |
|
Replacement |
HPS 300W |
HPS 350W |
HPS 450W |
|
Application |
Indoor using, such as warehouse,lobby,gas station, factory,etc.. |
|
Size |
Dia 500mm * 466mm |
Dia 200mm * 330mm |
Dia 420mm * 640mm |
|
Operating temperature |
;-40~45°C |
