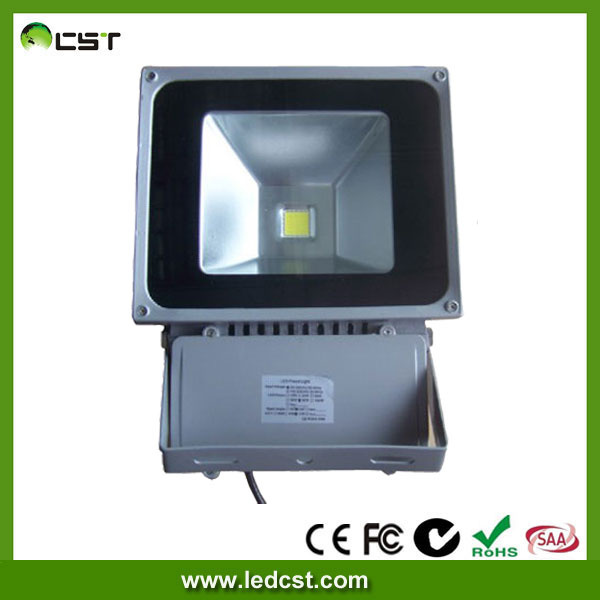

IP65 Outdoor 100W LED Flood Light
1. General Description
LED floodlight is a new type of LED lighting light source, developed on the basis of the traditional flood light products, compared with the traditional floodlight, high thermal conductivity, light failure is small, light color purity, no ghosting, energy saving, environmental protection, long service life, etc, the products adopt constant current constant voltage control, power supply with high efficiency.
2. Features
1) High efficiency & energy saving. Under the condition of the same llumination, , it saves more than 70%
Energy compared with the traditional lamp.
2)Long life span, using semiconductor chip as the light resource, the life can be over 50, 000hrs.
3 )NoUV& IR. It won't distribute ray radiation Eco-friendly, No Hg & Xe, or other harmful element. Recyclable, also it won't generate EMI.
4)High performance external constant current drivers, no stroboscopic, good for eyesight protection;
5)Patent integrated light sources, high quality Bridgelux chip, high Light effects, high color rendering index.
6)Thermal design, integration of the advanced die-casting forming, small contact resistance, high cooling efficiency; Protection level reaches IP65.
3. Parameters :
LED Chips Quantity
1 Pcs
System Consumption
100W
LED Luminous Efficiency
80-100Lm /W
Color Temperature
2700K~7000K
Lamp's Initial Luminous Efficiency
≥80Lm /W
Lumen Maintenance
70%(50000Hrs)
Color Rendering Index
Ra≥70
Viewing Angle
120.
60.
Operating Temperature
-40 ~ +45 degree
Storage Temperature
-40 ~ +70 degree
IP Grade
IP65
Life-span
50000Hrs
Materials
Aluminium
Appliance Class
Class I
The color of the lamp shell
Black/Silver
Power line
0.75mm2The three core
3. Applications
Ø Workshop, factory, warehouse, highway toll station.
Ø Gas station, supermarket, exhibition, gym. Mall, conference room, market;
4. Installation Introduction
1) Install lamps and lanterns is fixed on the fixed frame (wall) on the lamp bracket and fixed frame three screws
2) Working and Storing in the normal temperature.
3 ) When installing the products, the point ofconnecting of wires must be closed very well toavoid theleakage.
4)Must take some waterproof protection when connect the outside power wires.
5)Prohibit to violate any fire protecting rules when using.
6)Please ask the professional electrician when installing. And the ways of connecting of 3*0.75MM2 wires
Is that Brown is firing line, Blue is null line, Yellow is earth line.
