IP65 LED Panel Light 600*600mm Waterproof LED Panel Light 36W/48W

IP65 LED panel light 600*600mm waterproof LED panel light 36W/48W


1.Specifications

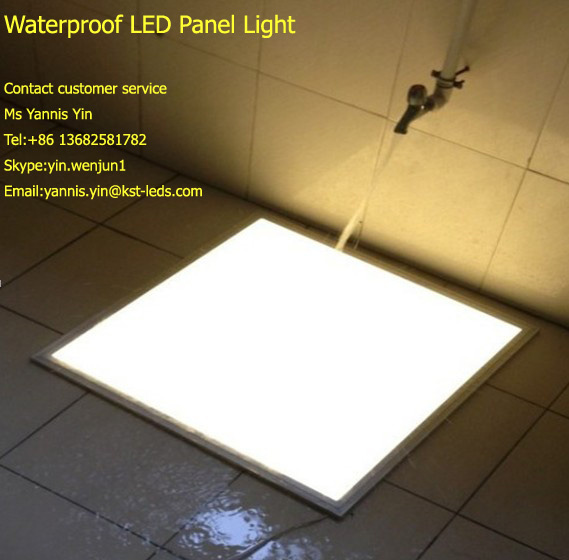

Waterproof LED Panel Light
Dimension: 600*600*10.5mm
Total Power:36W
Light Source: SMD2835
Input Voltage: AC100-240V
Color rendering index: ≥80
Light Color: WW, NW, CW
Warranty: 5 years


2.LED Panel Light description
LED panel light is a high-grade indoor lighting, the outer frame is made of aluminum alloy by anodic oxidation,
and the light source is LED, the whole lamp's design is beautiful, concise and luxurious looking, not only
have good lighting effect, but also can bring a feeling of beauty. SuperLED's LED panel lamp design is unique,
the light passes through the high transmittance Light Guide Plate formed a uniform  plane luminous effect,
illumination uniformity, light soft, comfortable and bright, can effectively relieve eye fatigue.LED panel lamp
can prevent radiation, will not stimulate the skin of pregnant women, the elderly, children.


3.Parameter for LED Panel Lights

Model		KST-PL6060-IP65				Power		36W,48W,55W
Dimension		600mm*600mm*10.5mm				LED Type		SMD2835
light guide plate		3mm				LED Chip		9*15mil,10*23mil
Diffusion plate		1.5mm				LED Working Voltage		DC2.8-3.1V
Power Supply		Isolated				CRI		≥80
Input Voltage		AC100-240V				Beam Angle		120°
Frequency		50/60Hz				Luminous Efficiency		80-90LM/W
Power Factor		≥0.95				Color temperature		2800-3200k  Warm White
Power efficiency		≥0.88						4500-5500K  Nature White
Working Temperature		Minus 40° to 60°						6000-6500K  Day White
Storage Temperature		Minus 40° to 80°						7000-8000K  Cool White
Color of lamp shell		Silvery /White				LED Life Span		≥50000hours
Waterproof Degree		IP65				LED Reduction Rate		≤2‰ per 1000hours
Fixing Way		Built-in, Suspending				Warranty		5 years

4.Product Details
Aluminum Frame
.10mm thick prevent light leak,high efficiency.
.CE,RoHS,SAA,TUV,UL approved,good heat  dissipation,high-impact,resistance and scratch resistanc.
.Silver or white coating optional.
.Anti - oxidation protection.
.Protected against dampness, moisture and rust.
.Noble,beautiful and high-grade.

Using imports LED SMD
Using high quality SMD LED as light source,high light efficiency, low power consumption, effectively saving energy cost
Long lifetime of 50,000 hours.

Imports PMMA material
4T Light Guide Laminate 88-90%,run parallel with 2835LED
1.5T diffiser,PMMA 88-92%.
High efficiency.
High brightness.

High-quolaty IP67 LED power suppy
IP67 Waterproof MW LED power supply
CE,RoHS,SAA,TUV,UL approved,good heat
  dissipation and anti-seismic

Waterprof leadwire
Black or white color
Waterprof leadwire is optiona.


5.Applications
General Lighting such as offices, hotels,home, shops, hospitals, schools Ceiling troffer fixtures

6.Installation

Embedded  Suspendden  Surdace Mounted

7.Quality warranty
Five Years
1)Quality guarantee is based on storing, installing,operating and maintaining correctly  in the normal

operationcondition;2).It is not included in our maintaining range when installing inappropriately, breaking the operating rules,

and leading  to the products damaging;
3).Our company will reserve the right to either repair,parts replacing,or products exchange during the

quality warranty  period.
4).All the products sold by Seller for Buyer has 5 years warranty.5 Year warranty starts from 2 weeks

from the date.Buyer receives the goods to it's warehouse in the Buyers respective countries or regions.

Seller shall replace All the invalid products during warranty time on it's own expenses.So Seller shall pay

the expenses caused by freight (such as DHL, UPS,Fedex, etc.). Warranty terms applies also to the
products delivered before this agreement.

8.Safety Note
Please do not hit or press it with heavy substance;
Please Handle and transport gently;

Please do not touch and twist the panel when power is on;

It is normal to get the panel profile warmed when power on.

9.Attentions
1).K-SITUO ligting  products adopt high brightness LED as the light source,the life reaches 50,000 hours,while the LED brightness degradation is influenced by many environmental conditions,such as surrounding temperature,adequate ventilation and  air condition, but also by other electrical device interference.
2).The normal operating temperature is from -20C to 40C.If the products work  above or below  this range for a long time, the life expectancy will be reduced.Once under the extreme situation, the internal device will malfunction.

10.FAQ
1. Experienced history: 8 years'research and development in LED panel to name "ENE Lighting" in advance, with strict ISO 9000 quality control system, as well as cleanest workshop and test instruments.
2. Care about details:  details are important for our products , appearance design, electric design, packaging,  as well as services, etc.
3. Only using best LED driver: Best Tridonic LED driver with 5 year warranty, Meanwell LED driver and Lifud LED driver with 3 year warranty
4. Only using best LEDs: Samsung, Epistar, Soul chip
5.  Best Services: Fast reply to your inquiries alway.  IES lighting simulation  by Dialux can be provided free of charge if requested
6. Better Solutions:  Our LED panel can be compatible with Tridonic LED driver, Meanwell LED driver, and Lifud LED driver. You are allowed to buy fixture only without led driver, you can buy LED driver at your local market by youself !
7. OEM & ODM services: acceptable and welcome.
