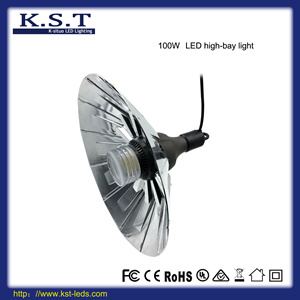

High Brightness High Power Small Volume 100W LED High Bay Bulb Light LED High Bay

High Brightness High Power Small Volume 100W LED High Bay  Bulb Light  LED High Bay

1.Specifications
Total Power:100W±1W
Size:Dia397*H235mm
Light Source: SMD3030 Taiwan Lextar
Input Voltage: AC85-264V
Color rendering index: ≥85
Lighting effect:100lm/W
Light Color: WW, NW, CW
Warranty: 5 years

2.LED high power bulb description
We adopt the modern high-tech forging, use high efficient isolated long lifespan led driver without the electrolytic capacitor inside, and with our patent cooling mini smart fan inside design, to make our led bulb reach high lumen output and real long lifespan upto 50000 hours, it is real led bulb which can replace the traditional incandescent light bulb 100~200W.

3.Parameter for LED High-power Bulb

Item		KST-HBL-100W
Power (W)		100W±1W
Main Material		Aluminium alloy + Plastic
Lumens		>10000lm
Size(mm)		Dia397*H235mm
LED Qty(pcs)		133
Color Temperature(K)		WW:3045±175                  NW:4503±243                   CW:5665±355
LED Chip		Taiwan Lextar 3030
Base Type		E26,E27,E39,E40
IP Level		IP53
Color Rendering Index		>85
Input Voltage(V)		AC85-264V
Power Efficiency		≥95%
Power Factor		≥0.98
Bean-angle		>210 degree
Working termperature		-40~50ºC
Main Material		Aluminium alloy + Plastic
Environmental		All materials meet with RoHS compliance
Life Expectancy(h)		>50,000hours

4.Features
(1).Using imports high-brightness LEDs,high thermal conductivity,low light-declining,pure colors,no shadow.
(2).High effectively saving ,high power LED light source use with self- research and development high efficiency driver without electrolytic capacitor is more energy saving 80% than Sodium lamp, high strength body not easy broken.
(3).Patent cooling design with mini smart fan inside, to keep the lamp working for a long time with high lumen output, lifespan upto 50000 hours under the working temperature 70 degree.
(4).The surface of lamps is processed by anodic oxidation and corrosion protection,compact and beautiful structure,Reached IP64 standards,Good anti-corrosion, waterproof and dust.
(5).Particular design with mix color and beam angle.
(6).Instant lightening, no strobe frequency, noiseless.
(7).Constant current constant pressure control,wide range voltage AC85~264V is overcomes the instability of the light caused by the ballast, the noise pollution and the light pollution,to avoid the workof the eye to stimulate, fatigue.
(8).ESD testing upto 4KV.
(9).High CRI,more real for color.All colors are optional, and can satisfy different environments demand,eliminating depression caused by  traditional lamp color temperature too high or low,so that the visual feel comfortable, improve the work efficiency .
(10).Small package volume, convenient transportation, low transportation cost .
(11).Environment friendly,without Mercury or any other hazardous substances.

5.Applications
(1).Hotels,hospitals,school,themed restaurant
(2).Meeting Rooms/conference,commercial purposes
(3).Factory workshop,offices,warehouse
(4).Supper shopping mall
(5).Parking, gas station,highway toll station
(6).Plant Growth Lamp
(7).Fruit,Seafood and other meat super market

6.Installation instructions
To connect directly 100-240V
To replace the traditional lamp place modify the circuit to be correct

7.Packing
GW:12.5kg(8PCS/CTN)
Size:670*510*330 mm

8.Quality warranty
Five Years
1)Quality guarantee is based on storing, installing,operating and maintaining correctly  in the normal
operationcondition;
2).It is not included in our maintaining range when installing inappropriately, breaking the operating rules,
and leading  to the products damaging;
3).Our company will reserve the right to either repair,parts replacing,or products exchange during the
quality warranty  period.
4).All the products sold by Seller for Buyer has 5 years warranty.5 Year warranty starts from 2 weeks
from the date.Buyer receives the goods to it's warehouse in the Buyers respective countries or regions.
Seller shall replace All the invalid products during warranty time on it's own expenses.So Seller shall pay
the expenses caused by freight (such as DHL, UPS,Fedex, etc.). Warranty terms applies also to the
products delivered before this agreement.

9.Safety Note
Please do not hit or press it with heavy substance;
Please Handle and transport gently;
Please do not touch and twist the panel when power is on;
It is normal to get the products profile warmed when power on.

10.Attentions
1).K-SITUO ligting  products adopt high brightness LED as the light source,the life reaches 50,000 hours,while the LED brightness degradation is influenced by many environmental conditions,such as surrounding temperature,adequate ventilation and  air condition, but also by other electrical device interference.
2).The normal operating temperature is from -20C to 40C.If the products work  above or below  this range for a long time, the life expectancy will be reduced.Once under the extreme situation, the internal device will malfunction.

11.FAQ
1. Experienced history: 8 years research and development in LED panel to name "ENE Lighting" in advance, with strict ISO 9000 quality control system, as well as cleanest workshop and test instruments.
2. Care about details:  details are important for our products , appearance design, electric design, packaging,  as well as services, etc.
3. Only using best LED driver: Best Tridonic LED driver with 5 year warranty, Meanwell LED driver and Lifud LED driver with 3 year warranty
4. Only using best LEDs: Samsung, Epistar, Soul chip
5.  Best Services: Fast reply to your inquiries alway.  IES lighting simulation  by Dialux can be provided free of charge if requested
6. Better Solutions:  Our LED panel can be compatible with Tridonic LED driver, Meanwell LED driver, and Lifud LED driver. You are allowed to buy fixture only without led driver, you can buy LED driver at your local market by youself !
7. OEM & ODM services: acceptable and welcome.
