CE,TUV,SAA,CB,UL approved.
IS lighting is a very professional led panel light manufacturer in China. We specilized in LED lighting solutions to the office,home,commercial public place etc.Providing 0-10V LED panel light, Dali dimmable LED panel light, traic dimmable LED panel light, RGB LED panel, DIY LED panel, and CCT adjustable LED panel to customers with wholesales price. Wellcom your inquiry.
Products Character:
A:SMD5630 with Epistar chips adopted, energy saving up to 50%;
B:MOSO CE external constant-current driver adopted, with power factor over 0.95;
C:Baseboard heat dissipation structure, long life span,normal use can reach over 50,000hours;
D:Diversified installation methods can meet customers requirments.
E:two difference frames for your options.
Trade terms:
A, Payment: T/T or L/C
B, MOQ: 100PCS(1-10 samples can be acceptable)
C, Logo: According to your need
D, EXW or FOB SZ(depends on order quantity).

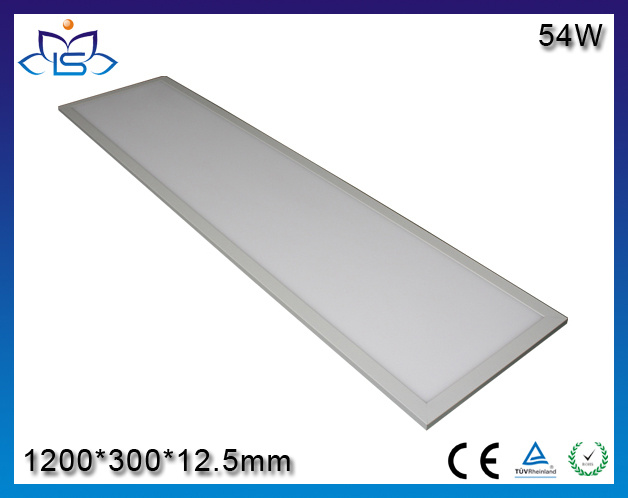

| Name | IS LED Panel Light |
| Lighting Source | SMD5630 |
| LED Chip Brand | Samsung/Seoul/Epistar |
| LED Quantity | 120/240pcs |
| Driver Brand | UL External Constant-Current Driver |
| Power Consumption | 36W/48W/54W/72W |
| Input Voltage | AC100-277V |
| Working Voltage | 30-42V |
| Constant Current | 900MA/1150MA/1280MA/1800MA |
| LED Luminous Efficiency | 2900+200lm/3600+200lm/4000+200lm/5400+200lm |
| Power Factor | >0.95 |
| LED Life Expectancy | 50000hours |
| Beam Angle | 120° |
| Luminous Flux | 2900+200lm/3600+200lm/4000+200lm/5400+200lm |
| Color Temperature | WW/NW/CW |
| Protection Grade(IP) | IP20 |
| Color Rendering Index(Ra) | >80 |
| Temperature Rising | Pass according to En60598 |
| Operation Temperature | -10°~40° |
| Relative Humidity | Pass according to En60598 |
| Fixture Material | Junction Box, Hanglig Cable, Screws |
| Cover Brand | Al 6063 |
| Housing Color | Silver/White |
| Dimension/Size | 1200x300x11mm/1200x300x12.5mm |
| Net Weight | 4Kg |
| Shock Test | 0.35-0.5Nm |
| Insulation Class | ClassII |
| Certification | TUV/CE/FCC/PSE/RoHS |
| Warranty | 3years |
"IS Lighting" is a factory Doing OEM, ODM with 200-300 workers since 2009, we specilized in LED panel, LED tube, LED bulb, LED spotlight, LED PAR light, LED downlight, LED track light, LED cornlight, LED floodlight and LED high-bay etc with UL, cUL, DLC, RCM, TUV-SUD CB, GS, CE RoHS.
We have grown based on a global resource for Korea, Europe market, Amercia Market to a specialty manufacturer for world class projectors, designers, developers, trading companies and wholeselers who specify our products for everything from retail stores and warehouse to high-rise hotels, chain restaurants, private homes, specialty museums, buildings and office.
Our products have always been known for quality, reliability and solid
Performance, making IS Lighting the most specified brand in the lighting business.
The mission of IS Lighting is to be the leading provider of innovative, high quality lighting to commercial, municipal and utility markets.
Our goal, like yours, has always been the same: "Doing a fruitful business"
We are a partner who is trustworthy.
Do remember we are producing "a valuable product" instead of "a top-end quality with highest price or a cheapest price with low quality product for the globle market.
Let's move forward together! ! !
We Are Your LED Lighting Supplier.
Wir sind Ihre LED Beleuchte Liferant
Nous sommes des fournisseurs d'é Clairage LED
