Home LED Light Products 72W LED Panel Light with CE RoHS

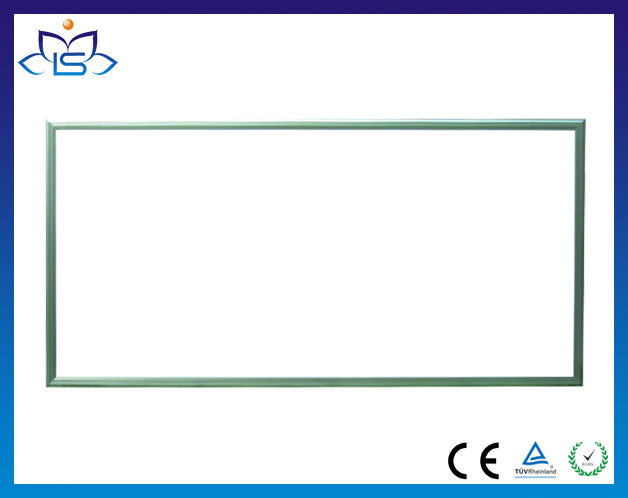

72W LED Panel Light with CE RoHS

72W LED Panel Light with CE RoHS
Price: US $ 95.80-106.50/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Product Name:

A. Voltage AC100-277V
B. Baseboard Heat Dissipation Structure
C. Wattage 18W/36W
E. 3 Years Warranty

-------------------------------------------------------------------------------------------------------------------------------- Products Character:

A: SMD5630 with Epistar chips adopted, energy saving up to 50%;
B: MOSO CE external constant-current driver adopted, with power factor over 0.95;
C: Baseboard heat dissipation structure, long life span, normal use can reach over 50, 000hours;
D: Diversified installation methods can meet customers requirments.
E: Two difference frames for your options.

Trade terms:

A, Payment: T/T or L/C
B, MOQ: 100PCS(1-10 samples can be acceptable)
C, Logo: According to your need
D, EXW or FOB SZ(depends on order quantity).


NameIS LED Panel Light
Lighting SourceSMD5630
LED Chip BrandSamsung/Seoul/Epistar
LED Quantity240pcs
Driver BrandUL External Constant-Current Driver
Power Consumption72W
Input VoltageAC100-240V
Working Voltage30-42V
Constant Current1800MA
LED Luminous Efficiency75+5lm/w
Power Factor>0.95
LED Life Expectancy50000hours
Beam Angle120°
Luminous Flux5500lm
Color TemperatureWW/NW/CW
Protection Grade(IP)IP20
Color Rendering Index(Ra)>80
Temperature RisingPass according to En60598
Operation Temperature-10°~40°
Relative HumidityPass according to En60598
Fixture MaterialJunction Box, Hanglig Cable, Screws
Cover BrandAl 6063
Housing ColorSilver/White
Net Weight7kg
Shock Test0.35-0.5Nm
Insulation ClassClassII

Prod Model: IS-1260-72W-A2
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LED Quantity: 240PCS
Lighting Model: 2 Sides
Power(Excluding Driver): 72W
Input Vol: AC100-277V
Luminous Flux: 5200±200lm
Cct: Warm White
LED Luminous Efficiency: 72±5lm/W
Housing Color: Silver
Light Source: LED
Emitting Color: Warm White
Appearance: Square
Type: Hanging
Certification: CB, GS, PSE TUV
Housing Material: Aluminum
Base Material: Aluminum
Voltage: 110-277V
Beam Angle: 120°
"IS Lighting" is a factory Doing OEM, ODM with 200-300 workers since 2009, we specilized in LED panel, LED tube, LED bulb, LED spotlight, LED PAR light, LED downlight, LED track light, LED cornlight, LED floodlight and LED high-bay etc with UL, cUL, DLC, RCM, TUV-SUD CB, GS, CE RoHS.

We have grown based on a global resource for Korea, Europe market, Amercia Market to a specialty manufacturer for world class projectors, designers, developers, trading companies and wholeselers who specify our products for everything from retail stores and warehouse to high-rise hotels, chain restaurants, private homes, specialty museums, buildings and office.

Our products have always been known for quality, reliability and solid

Performance, making IS Lighting the most specified brand in the lighting business.

The mission of IS Lighting is to be the leading provider of innovative, high quality lighting to commercial, municipal and utility markets.

Our goal, like yours, has always been the same: "Doing a fruitful business"

We are a partner who is trustworthy.

Do remember we are producing "a valuable product" instead of "a top-end quality with highest price or a cheapest price with low quality product for the globle market.

Let's move forward together! ! !

We Are Your LED Lighting Supplier.

Wir sind Ihre LED Beleuchte Liferant

Nous sommes des fournisseurs d'é Clairage LED
