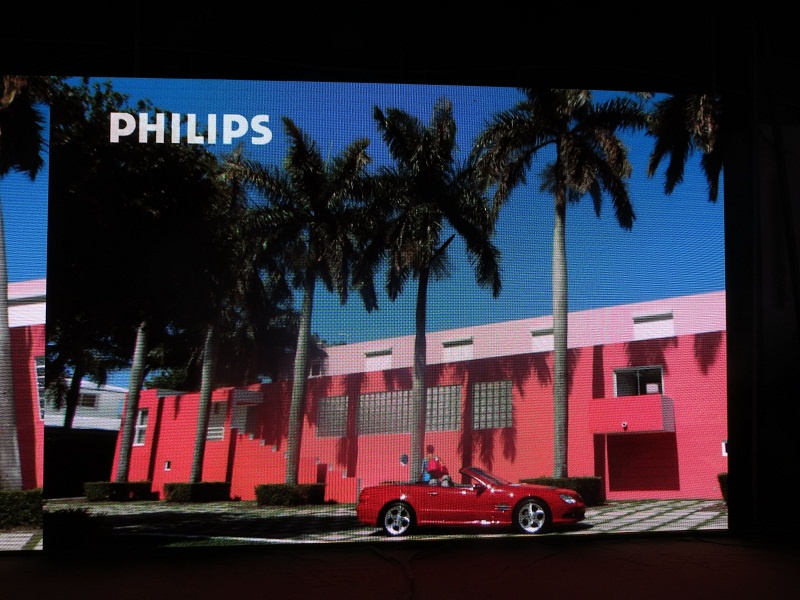

Indoor SMD Full Color LED Display
| Price: |
US $ 1136/Square Meter |
| Trade Terms: |
FOB,EXW,CIF |
| Min Order: |
1/Square Meter |
| Pay Type: |
T/T,Western Union |
Basic Info.
Model NO.:P6- indoor-display Tube Chip Color:Full ColorDisplay Function:Video Display Scanning Mode:1/8 ScanCertification:CE, RoHS, CCC Pixel Configuration:1R,1G,1BPixel Pitch:P4.8, P5.33, P6 Pixel Density:40,000 dots / m²Application:Stage Performance, Advertising, Shopping Guide IP Rating:IP31System Operating Platform:Windows XP/Windows7 Cabinet Size:576mm*570*60mmExport Markets:South America,North America,Southeast Asia,Western Europe,Africa,Mid East,Oceania Product Description
Indoor high definition full color LED display/LED screen is slim and portable with die-casting aluminummaterial.Just 10.5kg/Cabinet,60mm thickness;P4.8, P5.33, P6 SMD 3 in 1 LED display are available.We produce a lot so we have good prices and stable quality.Please add my skype for more inforamtion Rental-type video display has the following advantages:1.High contrast rate up to 9000:1 by using black LED2.High refresh rate with NOVA control system,no scaning line when photographed.3.The new structure design enables diversified installation to meet the hanging-up and stacking requirements.4. Due to the light weight and low power consumption, it can reduces the labor cost,operating cost and transportation cost5. User-friendly design with fast locks, more convenient & fast to install and dismantle.6. 14 bit color,16384 gray scale,showing very clear and vivid video and images.7. Good thermal design, excellent heat dissipation even no fan installation,8. The same cabinet size can be compatible with different pixel pitches such as P4.8, P5.33, P6.If you want to update the product,you only need change the module.9.It is low noise,can be installed in office and meeting room.,| The parameters of 576*576mm star sereis: | |
| Pixel Pitch | P4.8 | P4.8 | P5.33 | P5.33 | P6 | P6 | |
| |
| LED Chip | Epistar+Silan | Epistar+Silan | Epistar+Silan | Epistar+Silan | Epistar+Silan | Epistar+Silan | |
| |
| LED lamp type | SMD3528(Black Body) | SMD3528(White Body) | SMD3528(Black Bodoy) | SMD3528(White Body) | SMD3528(Black Body) | SMD3528(White Body) | |
| |
| Pixel density | 43402dots/m 2 | 43402dots/m 2 | 35200 dots/m 2 | 35200 dots/m 2 | 27777 dots/m 2 | 27777 dots/m 2 | |
| |
| Module size | 288*288mm | 288*288mm | 288*288mm | 288*288mm | 288*288mm | 288*288mm | |
| |
| Cabinet Size(mm) | 576*576*60mm | 576*576*60mm | 576*576*60mm | 576*576*60mm | 576*576*60mm | 576*576*60mm | |
| |
| Cabinet pixels(W*H) | 120*120 dots | 120*120 dots | 108*108 dots | 108*108 dots | 96*96 dots | 96*96 dots | |
| |
| Driving Method | 1/15 scan | 1/15 scan | 1/9 scan | 1/9 scan | 1/8 scan | 1/8 scan | |
| |
| Driving IC | MBI5020 / MBI5024 / MBI5053 | MBI5020 / MBI5024 / MBI5053 | MBI5020 / MBI5024 / MBI5053 | MBI5020 / MBI5024 / MBI5053 | MBI5020 / MBI5024 / MBI5042 / MBI5050 | MBI5020 / MBI5024 / MBI5042 / MBI5050 | |
| |
| Refresh Rate | ≥1000Hz | ≥1000Hz | ≥1500Hz | ≥1500Hz | ≥2200Hz | ≥2200Hz | |
| |
| Brightness | ≥1400CD/m 2 | ≥2000CD/m 2 | ≥1500CD/m 2 | ≥3500CD/m 2 | ≥1500CD/m 2 | ≥2500CD/m 2 | |
| |
| Max.Power Consumption | 800w/m 2 | 800w/m 2 | 1000w/m 2 | 1000w/m 2 | 1000w/m 2 | 1000w/m 2 | |
| |
| Average power consumption | 250w/m 2 | 250w/m 2 | 350w/m 2 | 350w/m 2 | 350w/m 2 | 350w/m 2 | |
| |
| Cabinet Material | Die cast Aluminum | Die cast Aluminum | Die cast Aluminum | Die cast Aluminum | Die cast Aluminum | Die cast Aluminum | |
| |
| The weight of single cabinet | 10.5Kg/Cabinet | 10.5Kg/Cabinet | 10.5Kg/Cabinet | 10.5Kg/Cabinet | 10.5Kg/Cabinet | 10.5Kg/Cabinet | |
| |
| Prod Model: |
P4.8/P5.33/P6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
288*288 |
| Cabinet Size: |
576*576 |
| Cabinet Material: |
Aluminum |
| Warranty: |
Two Years |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
1/16 Scan |
| Certification: |
CCC |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Pitch: |
6mm |
| Pixel Density: |
27,777 dots / m² |
| Application: |
Shopping Guide |
| System Operating Platform: |
WIN XP |
| IP Rating: |
IP31 |
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
