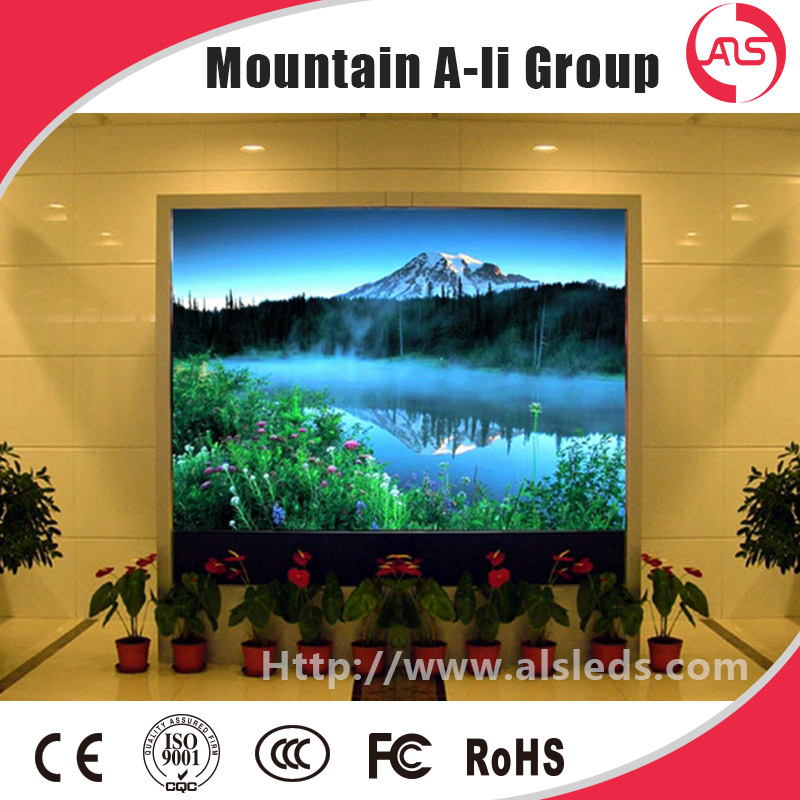

Indoor Rental P4mm Full Color LED Wall Display

                                                  Indoor Rental P4mm Full Color LED Wall Display


Product Features :


   1.Light,color can be custeomaized.

   2.Full Magnesium design, cooling well, no fans, no noise, Anti-interference.

   3.Assembly of high precision, the gap can be controlled less than 0.2mm, cabinet installation just 20 seconds

   4.The cabinet size can be user-friendly designed according to the module size.

   5.Fast disassembly module just 10 seconds, convenient raplacement and maintenance.

   6.Durable cabinet structure.


 Using Range:

   Widely used in a variety of needs large hall, sports arena, banking, telecommunications, government

agencies, terminal,pier, railway stations, the stock market and other trading market, medical systems,

eletric power, galleries and other publicity, advertising, information diseemination, the guide places.


Specifications:


Unit Module	Item	parameter
	Model	ALS - P4 - 16S
	Module size	256mm*128mm
	Pixel Pitch	4mm
	Pixel Density	62500dots/m2
	Pixel Configuration	1R1G1B
	Package mode	SMD2121/SMD 0508
	Module Resolution	64dots(W)*32dots(H)
	Max power consumption	18W
	Module Thickness	13.07mm(without magnet)  26.63mm (with magnet )
	Module Weight	0.18kg
	Driving Method	Constant Current Driving
	Scan Method	1/16scan
	Interface Way	HUB75-A
	Brightness	≥1500cd/m2
Unit Module	dimension	512mmx512mm
	Quantity of Module	16
	Thermal discharge	fan 2pcs
	Power supply Mode	5V/40A* 2pcs
	Pixel per cabinet	128mm*128mm
	Thickness	85mm
	Optimal Viewing Distance	4M-20M
	Optimal Viewing angle	160°(W)120°(H)
	Enviroment Temperature	Storage :-35ºC-+85ºC work :-20ºC-+50ºC
Power	Relative Humidity	10%-95%
	Operating Voltage	AC220V±10%
	Average power consumption	85W/H
	Max power Consumption	≤160W/H
	Current	≤20mA (Single LED )
Control system	CPU	Pentium4 or above P4 or above
	Operate system	WIN98/2000/NT/XP
	Control Mode	Synchronization with PC
Main technical parameter	Driving Device	IC Constant current driving
	Refresh Rate	≥400HZ
	Gray/Color	RGB each 256 grade, can display 16.7M clolor
	MTBF	≥9000hours
	Power Switch	Automatic Switch
	Display Mode	800*600/1024*768

Why choosed us:

   1.Price Advantage: No.1 cost effective

   2.Quality advantage: serious QC control system  , best material

   3.Service advantage: after service dept& Tech Dept. Perfect after sales system

   4.ISO9001,CE , CCC,ROHS Certificates


Trade Terms:

   1.Packing: Anti-shaking wooden cabinet /Air flight case/carton

   2.Shipping port: Shenzhen. China

   3.Shipping freights are quoted according to your requests

   4.Delivery time:10-15 working days

   5.2 years warranty ,lifelong maintaining.


After-sales service:

1. Service principles:Reponse in time, solve problems as soon as possible and ensure the use.Top

quality+reasonable price+responsible after service=successful & win .

2. Service period:In the Maintenance period of the LED screen body, free of all maintenance charges;

After Maintenance period, only charge the material costs fees free of manual work fees.

3. Service scope:If the users find any problem that cannot be solved, please contact with our company, we can

response in 24 hours.In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.

4. Under normal use and storage, Our Company will be responsible for the equipments .Special service for big

project, such as stadium, exhibitions, squares and so on .


Pre-sales service:

1.Our company can arrange professionals to conduct site installation and debugging in strict accordance with the

requirements of the schemes and the original manual.If there is any special requirement, it is necessary to make

changes of part installation scheme, we will coordinate with users.Our company can ensure the consistence of

completion time and contracted time.Any problems caused by natural factors or man-made, we will discuss with

client to find solutions.

2. Our company can train the users based on the manual.The training include system use, system maintenance

and equipment protection


3. Support prints your logo on products and let your logo shine anywhere.OEM/ODM orders are warmly welcome.
