| Price: | US $ 500/Square Meter |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 6/Square Meter |
| Pay Type: | L/C,T/T,Paypal,Money Gram,Western Union |

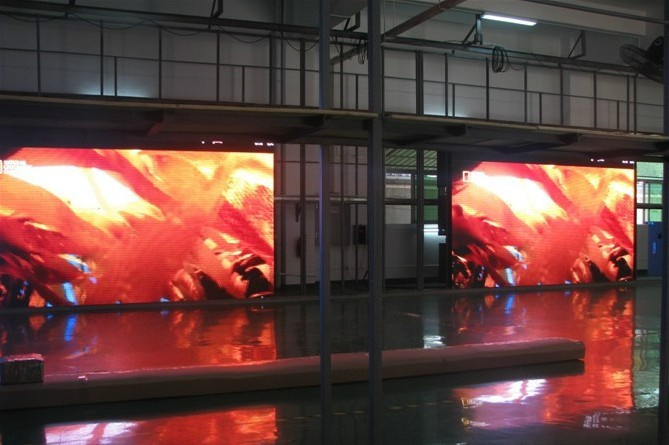

| Indoor P7.62 Low Power Consumption LED Display | ||
| S/N | Module Specification | |
| 1 | Pixel Pitch | 7.62mm |
| 2 | Pixel Configuration | 1R1G1B |
| 3 | LED Type | SMD 3IN1 |
| 4 | LED Wavelength | R(620-630nm) IV(150-200mcd) G(520-525nm) IV(260-330mcd) B(465-470nm) IV(55-65mcd) |
| 5 | Pixel Density | 17222 pixel dots/s.q.m |
| 6 | Module Size(W X H) | 244mm x 122mm |
| 7 | Module Resolution( W X H) | 32 pixel dots x 16 pixel dots |
| 8 | Input Voltage(DC) | 5V +/- 5% |
| 9 | Cabinet Specification | |
| 10 | Cabinet Size(W X H) | 976mm x 732mm |
| 11 | Cabinet Resolution(W X H) | 128 pixel dots x 96 pixel dots |
| 12 | Unit Cabinet Weight | 40kg(without packaging) |
| 13 | Thickness | 135MM |
| 14 | Whole Screen Specification | |
| 15 | Screen Brightness | Min. 2000nits/s.q.m |
| 16 | Driving Mode | Constant current 1/8 driving |
| 17 | H/V Visual Angle | 120 deg./55 deg. |
| 18 | Minimum Viewing Distance | 7.62m |
| 19 | Max. Power Consumption | 650W/s.q.m |
| 20 | Average Power Consumption | 500W/s.q.m |
| 21 | Gray Level | 4096 levels |
| 22 | Frame Frequency | Min. 60Hz |
| 23 | Refresh Frequency | Min. 400Hz |
| 24 | Blind Spot Rate | Max. 1/10000 |
| 25 | Protective Scale | IP20 |
| 26 | Screen Plainness | Max. +/- 1mm |
| 27 | Power Supply Mode | AC220 +/- 10% 50Hz/AC110 +/- 10% 60Hz |
| 28 | Environment Temperature & Humidity | Temperature -20 Celsius degree~+60 Celsius degree Humidity 10%~90% RH |
| 29 | Control System | |
| 30 | Operating Environment | Operating system Chinese/English Windows98/me/2000/NT/XP Hardware Configuration Pentium 300MHz or above ROM 64M Graphics Card Standard VGA 256mode or above Related Software Microsoft Media player compulsory OFFICE2000 in case of *. doc files RealPlayer in case of RealPlayer files |
| 31 | Software | LED Studio |
| 32 | Control Mode | Synchronization display(work with computer) |
| 33 | Control System | DVI video card + full color control card + fiber system( optional) |
| 34 | Display Content | Video DVD, VCD, TV, image, texts.etc. |
| 35 | Interface | Standard Ethernet |
| 36 | Transmission Distance | CAT5 cable:<100 m; Single fiber:<10 km |
| Prod Model: | P7.62mm |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: | One Year Warranty After Shipping |
| Display Type: | LED Video Display |
| Tube Chip Color: | Full Color |
| Display Function: | Video Display |
| Scanning Mode: | 1/8 Scan |
| Certification: | FCC |
| Pixel Configuration: | 1R,1G,1B |
| Pixel Pitch: | 7.62mm |
| Pixel Density: | 17,222 dots / m² |
| Application: | Shopping Guide |
| IP Rating: | IP40 |
| System Operating Platform: | Win 7 Vista XP |
