Brilliantopto Co., Limited
(We are striving for No. 1 Cost-Effective)
1. Product Description

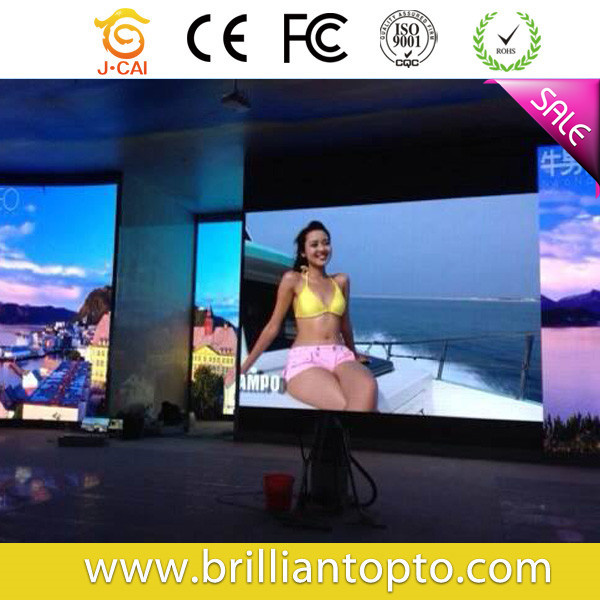

Indoor Full Color P4 LED Dot Matrix Display
2. Packaging & Shipping
Packaging: Paper cartons, wooden boxes or flight cases or according to your request to ensure safety during transportation.
Shipping: 1-10 days after receiving your deposit.
3. Company Information
Founded in 2005, with registered capital 20.18 million RMB, workshop covering area 20, 000m2 and independent living and production places. Quanzhou New Branched Factory founded in 2013, Total area 20, 000 m2, which highly improve our production.
4. FAQ
What is the life span for a LED screen?
The life span of LED screen is basically over 100, 000 hours. But it depends on how the client takes care of his LED screen and how it is used. When LED Screens' life time gets to 100, 000 hours, it means that the brightness of the LED lamps on the LED screen is about 50% off as compared to the original brightness.
What is the led chip packing?
DIP 546 oval lamp / DIP346 oval lamp / SMD 3528/2121/0805 / Dot Matrix module
How to protect power supply?
When in electronical peaks, it will output more force on electrical components. So the life span of power supply will decrease.
It is wise to install a protection (voltage stabilizer) to control the peaks.
How to maintain the led screen?
The soldering of the LED chips may dry out and break, which requires to change components frequently. Such as LED modules and receiving card.
Thank you for your time. Pls contact me today to know more.
Oversea Market Dept.: Vicky Huang
Mobile: 86-180 6527 9931
| Indoor Full Color P4 LED Dot Matrix Display |
| Items | Specifications |
| Pixel Pitch | 4mm |
| Module Size | 256mmx128mm |
| Pixel Density | 62500 dots/sqm |
| Pixel Configuration | 1R1G1B |
| Module Resolution | 64x32 |
| Brightness | ≥ 2000 cd/sqm |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 110° |
| Max. Power Consumption | Below 750W |
| Gray Scale | ≥ 4096 |
| Driving Mode | 1/16, constant current |
| Frame Frequency | ≥ 60Hz |
| Refresh Frequency | ≥ 320Hz |
| Operating Environment | -10 °C ~60 °C |
| Working Voltage | 220V±10% |
| MTBF | ≥ 10,000 hours |
| Lifespan | ≥ 100,000 hours |
Jingcai (Fujian) Photoelectric Co., Ltd. Was founded in 2005, with a registered capital of 20.18 million Yuan, a workshop covering an area of 20000 square meters and independent living and production places. Our company is professional in the development and manufacture of LED display systems. Our company technology strength is among the front row in this area, with a vigorous team.
In March, 2011, our company independently researched and developed a full-color formal P16 LED display, which can completely replace the current market single color LED displays, being the perfect choice in the next line of LED display market. In June, 2011, after designing P10 optical modules, we ceremoniously rolled out P10 light module series, which can effectively enhance the efficacy by above 10% and can effectively avoid a screen phenomenon. In August, 2011, our company took the lead in Quanzhou LED industry technology innovation strategy alliance. As the President unit, our company set up "Quanzhou LED Technology Research Center", featuring the national quality supervision center. Our company has many experts and professors from Xiamen University Semiconductor Research Center, Fuzhou University and Beijing University Institute of Photoelectricity for our research center technology consultation to comprehensively promote Quanzhou LED industry. In November, 2011, relying on our strong technical research and development team, we made a new generation of international leading 3D display screens.
Through six years of unremitting efforts, our company has successively obtained such honorary titles as The State Ministry Of Small-Sized And Medium-Sized Enterprise Technology Innovation Fund Project Unit, Small-Sized And Medium-Sized Enterprise In Fujian Province Technology Innovation Fund Project Unit, ISO9001 International Quality Management System Authentication Enterprise, CCC China National Mandatory Product Certification Enterprise, CE Compulsory Product Certification Enterprise, FCC Anti-Radiation Product Authentication Enterprise, RoHS Lead-Free Environmental Protection Product Authentication Enterprise, IP65 Waterproof and Dustproof Product Authentication Enterprise, Chinese Optical Optoelectronic Industry Member Unit, National Taxpayer Service Work Outstanding Member Unit, Unit With 15 Independent Research And Development Patents Of The State Intellectual Property Office, Fujian Quality And Right Protection Service (Member) Unit, Fujian Integrity And Labor Advocate Unit, Quanzhou Industry And Commerce Credit Good Enterprise, Quanzhou Creditable Unit, Quanzhou LED Technology Research Center and Quanzhou LED Industry Technology Innovation Strategy Alliance Chairman Unit.
Our company always implements our development target and insists on the tenet of "customers are the growing power source". Our company has a perfect after-sales service system, truly realizing that customers are the centers of the market marketing model.
Through our efforts, our products have been sold well in Europe, North America, Australia, the Middle East and Southeast Asia. Our company has set up stable sales agents in the corresponding areas. Our company sincerely hope to cooperate with LED display system talents and dealers for common development and for the development of LED display systems.
