LED display

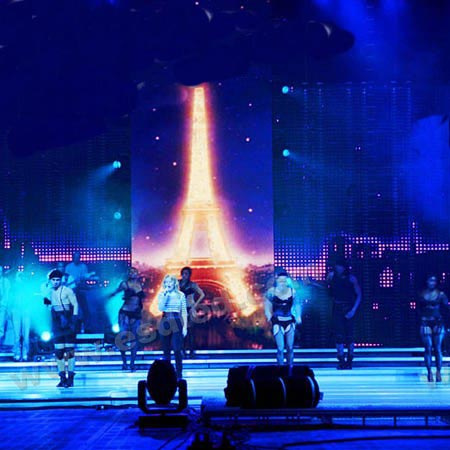

Indoor full color advertising LED display, with high definition and brightness, good for advertising media, popular for event and rental use and stage background
pH7.62mm is an indoor LED Fullcolor Display Screen with 1.07billion colors. There are a few kinds of driving modes, such as 1/8 scanning, and static constant driving mode, and so on. PLCC-4 SMD and chip 0603 are used. With SMD encapsulation, the brightness reaches 1300NITS. The pixel size of pH6 is 6mm, with 17, 222 dots per sqm. The rate of blind spot is less than 0.0001, and the gap among pixel less than 0.2mm, among unit modules less than 0.4mm. Indoor LED Display Screen pH7.62 is good look, easy to disassemble and could receive various video signals, so it's greatly fit for small concerts, parties, indoor live broadcast of Stadiums and indoor advertising.
|
P7.62mm SMD 1in1 indoor full color LED display parameters |
|
(1) Construction Description |
Each pixel contain: 1 red, 1 pure green, 1 pure blue, total 3 pcs LED
Pitch 7.62mm resolution: 17, 222 dots/sq. m |
|
(2) Screen Body Technical Parameter |
|
1 |
Screen body area |
Size can be customized |
|
2 |
Cabinets |
Pixels: 128dots× 96dots=12, 288dots |
|
Size: 976mm× 732mm |
|
3 |
Modules |
Pixels: 32 dots× 16 dots=512dots |
|
Size: 244mm x 122mm |
|
4 |
Display brightness |
≥ 1, 300cd/sq. m |
|
5 |
Brightness adjustment |
256 grade automatic, 8 grade manual |
|
6 |
Drive Mode |
1/8 scan |
|
7 |
View Angle |
13 0 ° /130° |
|
8 |
Mix. View Distance |
8meters |
|
9 |
Grey Scale |
256 grades |
|
10 |
Display Colors |
16M |
|
11 |
Frame rate |
120 Hz |
|
12 |
Refresh rate |
360Hz (Guarantee that the picture will not tingle when the pick up camera is kinescoping) |
|
13 |
Control Mode |
To be synchronized with computer monitor |
|
14 |
Data Transmission |
Parallel RS422 mode |
|
15 |
Screen Lifespan |
> 100, 000 hours |
|
16 |
Blind Spot Rate |
≤ 0.0002 |
|
17 |
Operating Voltage |
AC100V± 240V 50-60HZ |
|
18 |
Screen Body Power Consumption |
Max: 860w/sq. m, Average: 280w/sq. m |
|
19 |
Color Temperature |
6, 500K± 500 |
|
20 |
Screen body weight |
Less than 60KG/sq. m (excluding outer frame) |
|
21 |
Screen body volume |
0.11CBM/cabinet |
|
22 |
Control Distance |
120 meters (without relay) (optical fiber transmission 500M-10, 000M) |
|
23 |
System Working
Environment Temperature |
-20 - +60degree |
|
24 |
System Working
environment humidity |
10%-95%RH |
|
25 |
IP ratings |
IP43 |
|
26 |
System Operating Platform |
WINDOWS (WIN98, WIN2000, WIN XP) friendly interface, Keep the interface for the secondary development |
Shenzhen Eastar Electronic Co., Ltd., is an integrated service supplier of LED display screens headquartered in the city of Shenzhen, China.After six years professional experience in LED R&D significantly guarantees high quality of the products which have been exported to more than 80 countries and regions in the world, such as USA, UK, Italy, Belgium, etc.Our effective management and prompt and creative services have won a good reputation from our customers from all over the world.
Our manufacturing center is equipped with world class manufacturing equipment.Now, there are 3 YAMAHA SMT high speed mounters, 2 auto colorgraph and beam splitting machines, backflow welding machines, wave crest welding machines, and supersonic wave cleaning machines.We take advertage of the latest technology to meet the ever-demanding needs of the market.So All above these machines is operated automatically, promote our efficiency and ensure our products high quality.
EASTAR strictly implements the 5S production management system and ISO2001 Quality Control System.Up to now, we have the UL, CE, RoHS, etc certificatios.Meanwhile, we are on the way of applying new quality control certifications and keeping the principle 'customers and Quality come first' in our mind to make sure everystep operated normally and eliminate the mistake at the first time.
Come and talk to one of our representatives, whether you are interested in buying a LED display screen, or you are looking for a good supplier to work with in your market.We are willing to share our experience with you and we will also share with you the satisfcation brought by a good piece of product, or the success brought by our faithful cooperation!So welcome to join us!
