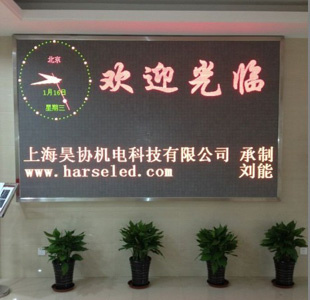

Double color message LED panel
1. Function
It can be used in the traffic environmetns, such as bus stop, airport, part and so on as the guiding system. And it can also be used in banks, estate, stock to show the information of stock, exchange, estate and so on. Also, it is very popular in shops, gym, postoffice, hotel etc to show the important information.
2. Advantages
(1). Professional manufacturering
(2) Distributing scanning method and modularity in designs.
(3) Constant static driving method and the brightness can be adjusted by
Itself.
(4) Super brightness and pure pixels
(5) Clear pictures with distortion and double images.
(7) Can be controlled by LAN remotely.
|
Technicial Parameters |
|
LED Parameters |
|
No. |
Item |
Luminous Intensity |
|
1 |
Red LED |
150mcd |
|
2 |
Green LED |
300mcd |
|
Module Specifications |
|
1 |
Pixel Pitch |
7.62mm |
|
2 |
Pixel Configuration |
1R1G |
|
3 |
Module Resolution |
64dots X 32dots |
|
4 |
Module Pixles |
2048 dots |
|
5 |
Module Size |
488mm X 244mm |
|
6 |
Module Weight |
1.5KG |
|
Screen Parameters |
|
1 |
Screen Area |
2.926m(W)x1.951m(H)= 5.71m2 |
|
2 |
Whole Screen Resolution |
384dots(W)X 256dots(H)=98304dots |
|
3 |
Cabinet Quantity |
3(W)X2(H)=6pcs |
|
4 |
Brightness |
≥800mcd/m2 |
|
5 |
Brightness(Max./Min.) |
1.2:1 |
|
6 |
Driving Method |
1/16 Scan |
|
7 |
View Angle |
Horizontal 120° Vertical 60° |
|
8 |
Optimal Viewing Distance |
4-80m |
|
9 |
Brightness Control |
Red and Green 256 Grade/Each |
|
10 |
Fresh requency |
≥400Hz |
|
11 |
Frame Frequency |
50 -- 60Hz |
|
12 |
Input Voltage |
AC220V/50Hz or AC110V/60Hz |
|
13 |
Defects Rate |
≤0.00001 |
|
14 |
Power Consumption |
Max.: 550W/m2 Average:225W/m2 |
|
15 |
Screen weight |
≤40kg/m2 |
|
16 |
MTBF |
>10,000 hours |
|
17 |
Life span |
≥100,000 hours |
|
18 |
Module Display Brightness Uniformity |
<3% |
|
19 |
Earth Leakage Current |
<3mA |
|
20 |
Protective Grade |
IP64 |
|
21 |
Humidity-operating |
10%~95% |
|
22 |
Controlling system |
Xixun |
|
23 |
Operating System |
Windows98/me/2000/NT/XP |
