Why choose our LED display?
1.Experience advantage:more than 10 years manufacturing experience,powerful factory!
2.Price advantage: Factory Outlet,No.1 cost effective
3.Quality advantage: superior LED led lamp from our own factory,serious QC control system,best materialr(passed ISO 9001,CE,RoHS,IP65 waterproof certification...)
Product Features
1. Low energy consumption,long lifespan,stable performance
2. Appearance can be customized,flexible,with a strong visual impact
3. Easy installation,easy maintainance,easy using
4. Quick and easy assembly,removing System,save loading time
Using Range
1. Widely used in large venue,stadiums,bank,government,
2. terminal,dock,station,stock market,medical systems,
3. electricity,exhibition etc.

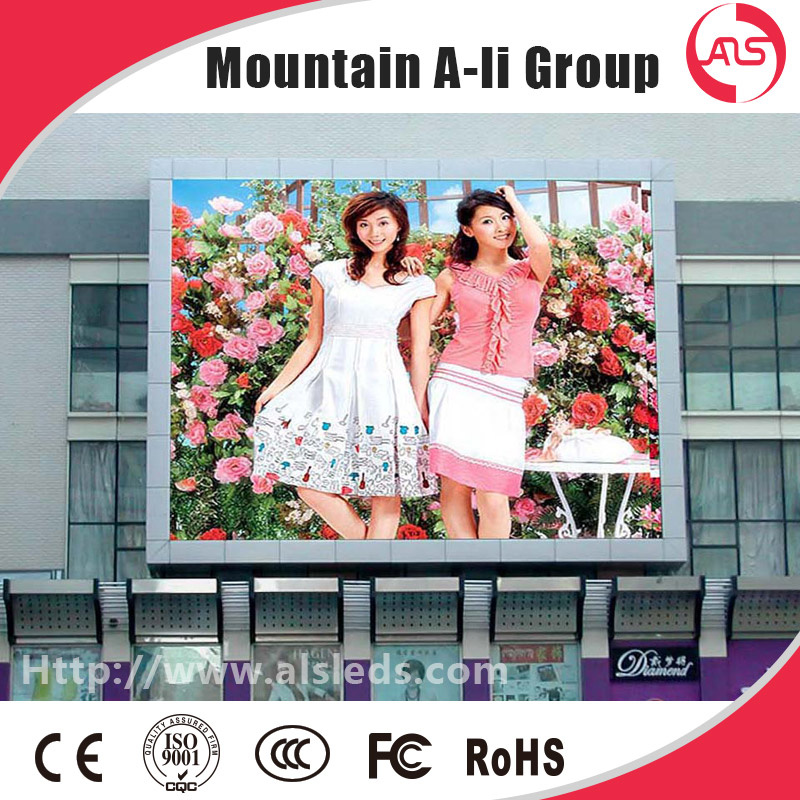

The Technical Parameters of Outdoor p16 led screen
Item | Parameter |
---|
Product model | P16 full color module |
Module size | 256mm*256mm |
Pixel pitch | 16mm |
Pixel density | 3906dots/m2 |
Pixel configuration | 1R1G1B |
Module resolution | 16dots(W)*16dots(H) |
Maximum power consumption | 35W |
Module thickness | 3.3cm |
Module weight | 1kg |
Driving method | Constant current driving |
Scan mode | Static Scan |
Interface type | HUB40 |
Brightness | ≥7500cd/m2 |
The specifications of cabinet |
Cabinet size | 1024mm*1024mm |
Module quantity | 16pcs |
Power supply | 5V/40A 5V/60A |
Cabinet resolution | 64*64dots |
Optimal viewing distance | 10m~50m |
Optimal viewing angle | 160°(W) 120°(H) |
Temperature | Storage:-35ºC~+85ºC Working:-20ºC~+50ºC |
System operating humility | 10%-95% |
The specifications of power supply |
Operating voltage | AC220V±10% |
Average power consumption | 350W/H |
Maximum power consumption | ≤800W/ |
Current | ≤20mA(single LED) |
The specifications of control system |
Computer | Pentium4 or above |
Operating system | WIN98/2000/NT/XP |
Control model | Synchronization control |
The specifications of the main technical parameters |
Driving device | Constant current driving |
Refresh rate | ≥600Hz |
Grey scale | RGB each 256 grade, can display 16.7M colors) |
MTBF | ≥9000hours |
Power switch | Automatic switch |
Display mode | 800*600/1024*768/1280*900 |
1.Payment term: 30% T/T in advance and balance before delivery.
2.Delivery time: 10-15 working days after 30% advance payment.
3.Quality warranty: Two years quality warranty and lifetime technology support and maintenance from the second year. If you improperly operate or something wrong with our products, we are responsible for the maintaining and repairs instruction or guide free of charge.
4.Free training: You can send your engineers who have knowledge of electronics and information to our factory and we provide free technical training, which contains training operation and maintenance of the LED display at our factory. We also offer the instruction manual, software, test report, drawing steel structure and so on.
5.Installation: We offer you the engineer to install the LED display, you have to offer him the two-way air tickets and accommodation as well as visa. The engineer's salary is $80/day;or we offer you the training on the LED display installation and repairing for free after you live in our company, or we can guide you to install the screen by remote control.
6.Service after sales: If you have any questions about our product, you can inform us by mail or call, and we will reply you in 24 hours when we get you E-mail or call, and offer you a good solution for your problem.
7. Packaging
We provide plywood wooden box packaging and Air box packaging.Customers can freely choose box and packaging way.But in any case, we will both ensure the use of appropriate packaging to protect the safety of the goods.
8. Transportation
Customers can freely choose box also the shipping way, by air, by sea or by train. We have professional freight forwarders, on the transportation we will not earn customers one penny of profit. Of course customers also could use your own freight forwarders, we will to fully cooperate with you.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
