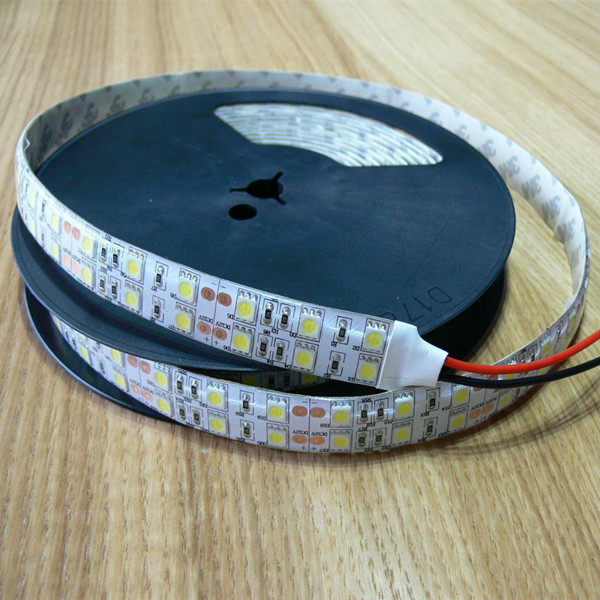

Features of 5050 LED Strip
1. Epistar LED SMD 5050, double-line, 120LEDs/m, 600LEDs/5M/reel.
2. Available Color: White, Warm White, Red, Green, Blue, Yellow, 3-in-1 RGB.
3. DC24V low votage input, 28.8W/Meter.
4. Cuttable every 6 LEDs along the cutting marks, according to practical requirement.
5. Completely smooth and even light spread, solving the uneven luminous problem.
6. PCB color: White or yellow.
7. PCB width: 20mm
8. Life-span: 50000hours.
9. Light decays after 10000 hours continue work less than 5%.
10. CE & RoHS certification.
11. FPCB covered with silicone or PU glue, 3M tape attached easy installation.
12. High brightness, low power, long life, easy installation, the production of highly customizable
13. Easy for transporting, decorative effect is brilliant, energy saving, environmental protection.
Specifications of Flexible 5050 LED Strip Light
1. Light Source: 5050 SMD LED
2. LED Chip: Epistar LED Chip
3. 6LEDs is cuttable, 120LEDs per meter, 5meters per roll
4. Dimension: 5000mm(Length)× 20mm(Width)
5. Working Voltage: DC24V
6. Power: 28.8W/Meter Max.
7. Current: 1.2A/Meter Max.
8. LED Color: Red/yellow/blue/green/white is available
9. Easy to install by the 3M tape on the PCB back
10. Beam angle: >120degree
11. Warranty: 2 years
12. Certifications: RoHS and CE
13. 20cm connecting cable from one end
14. Luminous Flux: 2000-2400LM/Meter
15. FPCB covered with silicone or PU glue
Applications of Double Row 5050 LED Strip
1. Architectural decorative lighting
2. Car decorative lighting
3. Archway, canopy and bridge edge lighting
4. Amusement park or theater
5. Back lighting for signage letters
6. Auditorium walkway lighting
7. Channel letter lighting
Shipping:
1. We can shipping all over the world by DHL, UPS, FedEx and TNT. The packing is very safe and strong, if you have any special needs, please let me know.
2. It will take around 3-5 working days to reach your hands.
3. We only guarantee delivery in time but we wouldn't control exprss delivery time. Our related sales person will be responsible to send the AWB(Tracking Number) for the delivered goods in the next workday. You can check the AWB on the website which we send to you. For the AWB you also can call to the local branch of the express company in your country.
4. Delivery: 5 working days for sample order, 7 working days for bulk order.
FAQ:
Q1: Can I have samples to test?
A: Yes, we are pleased to supply samples to test and check quality, mixed sample order is available. Please note, buyer need to pay for the sample fee and shipping cost.
Q2: Do you have any MOQ limited?
A: We have not any request to MOQ. The min packgae of the LED strip is 5meters/roll.
Q3: What's the lead time?
A: Sample order: 3-5days. Mass production: 7-10days. (according to the quantity of the order )
Q4: How do you ship the goods and how long does it take?
A: We usually ship by DHL, UPS, FedEx, TNT. It usually takes 3-5days to reach your hands
Q5: Do you accept drop shipping
A: Yes, it is available.
Q6: What's the payment method you accept?
A: Brighter accept below three different payments:
1. T/T(Bank to bank payment)
2. WU(Western Union)
3. Paypal
Our Services
1. Your inquiry related to our products or prices will be replied in 24hrs.
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM&ODM, any your customized lightings we can help you to design and put into product.
4. Distributoership are offered for your unique design and some our current models
5. Protection of your sales area, ideas of design and all your private information
LED Type
|
TOP SMD 5050 LED
|
Certification
|
CE & RoHS
|
Size(MM)
|
5000 x 20
|
Part Number
|
LED Qty.
|
LED Color
|
WL(nm)/CCT(K)
|
Flux(±5%)
|
Max Power
|
Lifetime
|
TD-FS5050W120
|
600PCS
|
White
|
5500-6500K
|
12000lm
|
144W
|
50,000h
|
TD-FS5050WW120
|
600PCS
|
Warm White
|
3000-3500K
|
10800lm
|
50,000h
|
TD-FS5050R120
|
600PCS
|
Red
|
620-625nm
|
2400lm
|
50,000h
|
TD-FS5050G120
|
600PCS
|
Green
|
520-525nm
|
6000lm
|
50,000h
|
TD-FS5050B120
|
600PCS
|
Blue
|
465-470nm
|
2000lm
|
50,000h
|
TD-FS5050Y120
|
600PCS
|
Yellow
|
585-590nm
|
2400lm
|
50,000h
|
TD-FS5050RGB120
|
600PCS
|
RGB
|
/
|
1200lm
|
50,000h
|
