Features of Flexible Strip
1: Red/Green/Blue/Yellow/Pure White/Warm White/RGB available
2: 3PCS LEDs/Cuttable, 60LEDs/Meter, 5meters/Reel
3: With Epistar LED Chip, High quality
4: Input Voltage DC12V, 14.4/Meter
5: 3M brand adhesive Tape at the backside
6: Anti-oxidation, anti-UV radiation and won't change color after long time use.
7: High flexibility, high transparence, flame-proof and environmental friendliness.
8: PU material offers good heat or cold resistance and is not easily broken.
9: Dimmable is available
10: CE, RoHS and FCC approved

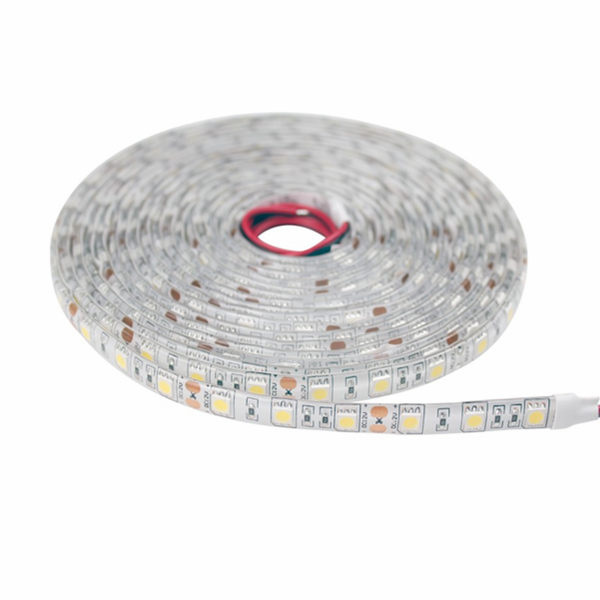

Specification of LED Flexible Strip
1. Light Source: 5050 SMD LED
2. LED Chip: Epistar LED Chip
3. 3LEDs is cuttable, 60LEDs per meter, 5meters per roll
4. Dimension: 5000mm(Length)× 10mm(Width)
5. Working Voltage: DC12V
6. Power: 14.4W per meter, 72W per roll
7. Current: 1.2A per meter, 6A per roll
8. LED Color: Red/yellow/blue/green/white is available
9. Easy to install by the 3M tape on the PCB back
10. Beam angle: >120degree
11. Warranty: 2 years
12. Certifications: RoHS and CE
13.20cm connecting cable from one end
14. Luminous Flux: 1000-1200LM/Meter
Applications of Flexible LED Strip
1. Architectural decorative lighting
2. Edge lighting
3. Amusement park, theater and mood lighting
4. Emergency hallway lighting
5. Auditorium walkway lighting
6. Stairway accent lighting
7. Concealed lighting
8. Backlighting for signage letters
9. Channel letter lighting
10. Emergency exit path lighting
11. Cove lighting
Trade Terms
1. Payment: T/T in advance (Western Union or PAYPAL are welcomed)
2. Production lead time 100M: 7-10days, 5000~1000M: 10-15days, above 1000M 15-20days.
3. Sample can be delivered in 7 days
4. Shipping freight are quoted under your requests
5. Shipping port: Shenzhen, Mainland China
6. Discounts are offered based on order quantities
7. MOQ: 100M
Our Services
1. Your inquiry related to our products or prices will be replied in 24hrs.
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM&ODM, any your customized lightings we can help you to design and put into product.
4. Distributoership are offered for your unique design and some our current models
5. Protection of your sales area, ideas of design and all your private information
LED Type
|
TOP SMD 5050 LED
|
Certification
|
CE & RoHS
|
Size(MM)
|
5000 x 10
|
Part Number
|
LED Qty.
|
LED Color
|
WL(nm)/CCT(K)
|
Flux(±5%)
|
Max Power
|
Lifetime
|
TD-FS5050W60-A
|
300PCS
|
White
|
5500-6500K
|
6000lm
|
72W
|
50,000h
|
TD-FS5050WW60-A
|
300PCS
|
Warm White
|
3000-3500K
|
5400lm
|
50,000h
|
TD-FS5050R60-A
|
300PCS
|
Red
|
620-625nm
|
1200lm
|
50,000h
|
TD-FS5050G60-A
|
300PCS
|
Green
|
520-525nm
|
3000lm
|
50,000h
|
TD-FS5050B60-A
|
300PCS
|
Blue
|
465-470nm
|
1000lm
|
50,000h
|
TD-FS5050Y60-A
|
300PCS
|
Yellow
|
585-590nm
|
1200lm
|
50,000h
|
TD-FS5050RGB60-A
|
300PCS
|
RGB
|
/
|
1200lm
|
50,000h
|
