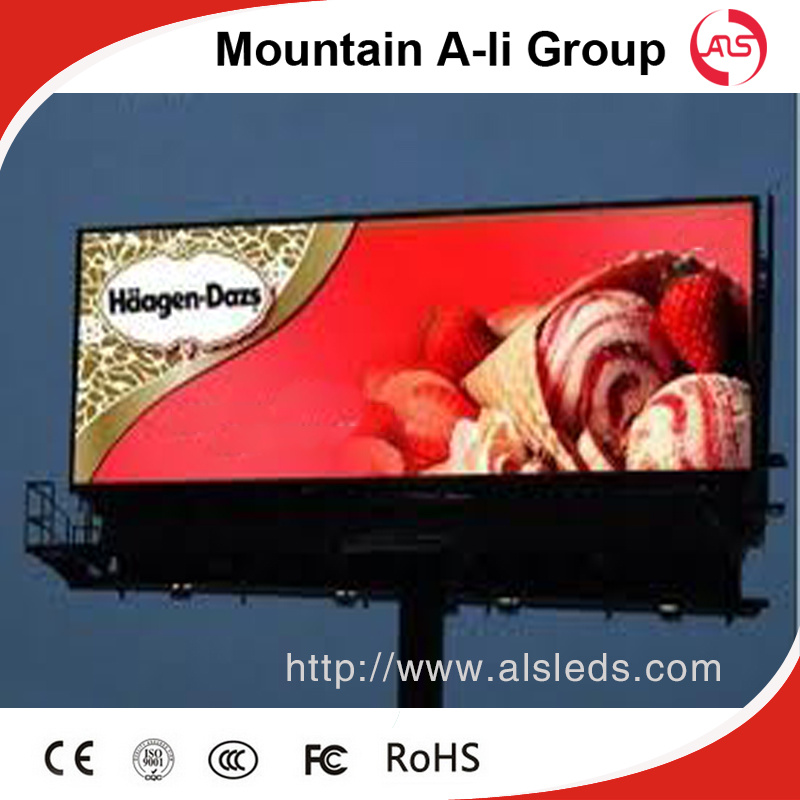

Hot Sale P8 SMD Outdoor Full Color LED Display

                                                  Hot Sale P8 SMD Outdoor Full Color LED Display


           Super high-resolution is one of the most apparent features for the new generation of LED display,

therefore the showing of information is much smoother and clearer than before. Also, it works in the

environment of no air-conditional because of low power consumption. What's more, convenient mounting

and simple disassembling can help customers save much expense in the labor and time.   In general,

these changes of the LED display offer user more comfortable and wonderful viewing experience, can be

used in so many fields and occasions , such as  hotel advertizing ,stage renting ,television ,shopping

malls ,big markets, outdoor stadiums, concerts , fairground  ,sightseeing districts, Outdoor advertising

media, enterprise engineering, cultural tourism, image promotion, commercial real estate, etc....




Product Features :


1.Low energy consumption ,long lifespan , less maintenance performance .

2.No color difference , concentrating well, good veiwing angle .

3.Better waterproof , better radiation ,better dust proof  ,good quality modules ,under the same conditions

,using two more years than SMD .

4.High brightness , high refresh  ,the biggest advantage of a comprehensive reflection of outdoor HD LED display .

5.Simply installation , easy to maintain  ,easy to use .



Specifications

Unit Module	Items	parameters
	Model	P8 surface mounted module
	Module size	320mm*160mm  /  256mm*128mm
	Pixel Pitch	8mm
	Pixel Density	15625dots/m2
	Pixel Configuration	1R1G1B 3 in 1
	Package mode	SMD2121
	Module Resolution	40dots(W)*20dots(H) / 32dots(W)*16dots(H)
	Max power consumption	25w
	Module Thickness	2.8cm
	Module Weight	0.55kg
	Driving Method	Constant Current Driving
	Scan Method	1/5scan  / 1/4scan
	Interface Way	HUB75B
	Brightness	≥6200cd/m2  /  ≥6500cd/m2
Unit Module	Cabinet size	640mmx 640mm
	Quantity of Module	8
	Power supply Mode	5V/40A  /  5V/60A
	cabinet resolution	80dots *80dots
	Optimal Viewing Distance	8M-50M
	Optimal Viewing angle	160°(W)120°(H)
	Enviroment Temperature	Storage :-35ºC-+85ºC work :-20ºC-+50ºC
Power	Relative Humidity	10%-95%
	Operating Voltage	AC220V±10%
	Average power	400W/H
	Max power Consumption	≤800W/m2
	Current	≤20mA (Single LED )
Control system	CPU	Pentium4 or above P4 or above
	Operate system	WIN98/2000/NT/XP
	Control Mode	Synchronization with PC
Main technical parameter	Driving Device	IC Constant current driving
	Refresh Rate	≥600HZ
	Gray/Color	RGB each 256 grade, can display 16.7M clolor
	MTBF	≥9000hours
	Power Switch	Automatic Switch
	Display Mode	800*600/1024*768/1280*900


Why choosed us:

1.Price Advantage: No.1 cost effective

2.Quality advantage: serious QC control system  , best material

3.Service advantage: after service dept& Tech Dept. Perfect after sales system

4.ISO9001,CE , CCC,ROHS Certificates


Trade Terms

1.Packing: Anti-shaking wooden cabinet /Air flight case/carton

2.Shipping port: Shenzhen. China

3.Shipping freights are quoted according to your requests

4.Delivery time:10-15 working days

5.2 years warranty ,lifelong maintaining.

 After-sales service:

1. Service principles:Reponse in time, solve problems as soon as possible and ensure the use.Top

quality+reasonable price+responsible after service=successful & win .

2. Service period:In the Maintenance period of the LED screen body, free of all maintenance charges;

After Maintenance period, only charge the material costs fees free of manual work fees.

3. Service scope:If the users find any problem that cannot be solved, please contact with our company, we can

response in 24 hours.In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.

4. Under normal use and storage, Our Company will be responsible for the equipments .Special service for big

project, such as stadium, exhibitions, squares and so on .


Pre-sales service:

1.Our company can arrange professionals to conduct site installation and debugging in strict accordance with the

requirements of the schemes and the original manual.If there is any special requirement, it is necessary to make

changes of part installation scheme, we will coordinate with users.Our company can ensure the consistence of

completion time and contracted time.Any problems caused by natural factors or man-made, we will discuss with

client to find solutions.

2. Our company can train the users based on the manual.The training include system use, system maintenance

and equipment protection


3. Support prints your logo on products and let your logo shine anywhere.OEM/ODM orders are warmly welcome.
