Product Description
Product features:
1) Light, color can be customized
2) Full magnesium design, cooling well, no fans, no noise, anti-interference
3) A ssembly of high prcision, the gap can be controlled less than 0.2mm,
cabinet installation just 20 seconds
4) the cabinet size can be user-friendly ddesigned according to the module size
5) Fast disassembly module just 10 seconds, convenient replacement and maintenance
6) Durable cabinet stucture
P5 indoor Surface Mounted Module Technical Parameters
Iterm | Parameter |
|---|
| Product model | P5-16S | P5-8S |
| Module size | 320mm*160mm | 160mm*160mm |
| Pixel pitch | 5mm |
|
| Pixel density | 40000dots/m2 |
|
| Pixel configuration | 1R1G1B |
|
| Module resolution | 32dots(W)*32dots(H) |
|
| Maximum power consumption | 25W | 20W |
| Module thickness | 14.27mm |
|
| Module weight | 0.21kg |
|
| Driving method | Constant current driving |
|
| Scan mode | 1/16 scan | 1/8 scan |
| Interface type | HUB75-A |
|
| Brightness | ≥1600cd/m2 | ≥2800cd/m2 |
|
| The specifications of cabinet |
| Cabinet size | 640mm*640mm |
|
| Module quantity | 16pcs |
|
| Power supply | 5V/40A *2pcs |
|
| Cabinet resolution | 128*128dots |
|
| Optimal viewing distance | 5m~30m |
|
| Optimal viewing angle | 160°(W) 120°(H) |
|
| Temperature | Storage:-35ºC~+85ºC
Working:-20ºC~+50ºC |
|
| System operating humility | 10%-95% |
|
|
| The specifications of power supply |
| Operating voltage | AC220V±10% |
|
| Average power consumption | 1180W/ | 270W/ |
| Maximum power consumption | ≤500W/ | ≤800W/ |
| Current | ≤20mA(single LED) |
|
| The specifications of control system |
|
| Computer | Pentium4 or above |
|
| Operating system | WIN98/2000/NT/XP |
|
| Control model | Synchronization control |
|
|
| The specifications of the main technical parameters |
| Driving device | Constant current driving |
|
| Refresh rate | ≥400Hz |
|
| Grey scale | RGB each 256 grade, can display 16.7M colors) |
|
| MTBF | ≥9000hours |
|
| Power switch | Automatic switch |
|
| Display mode | 800*600/1024*768 |
|

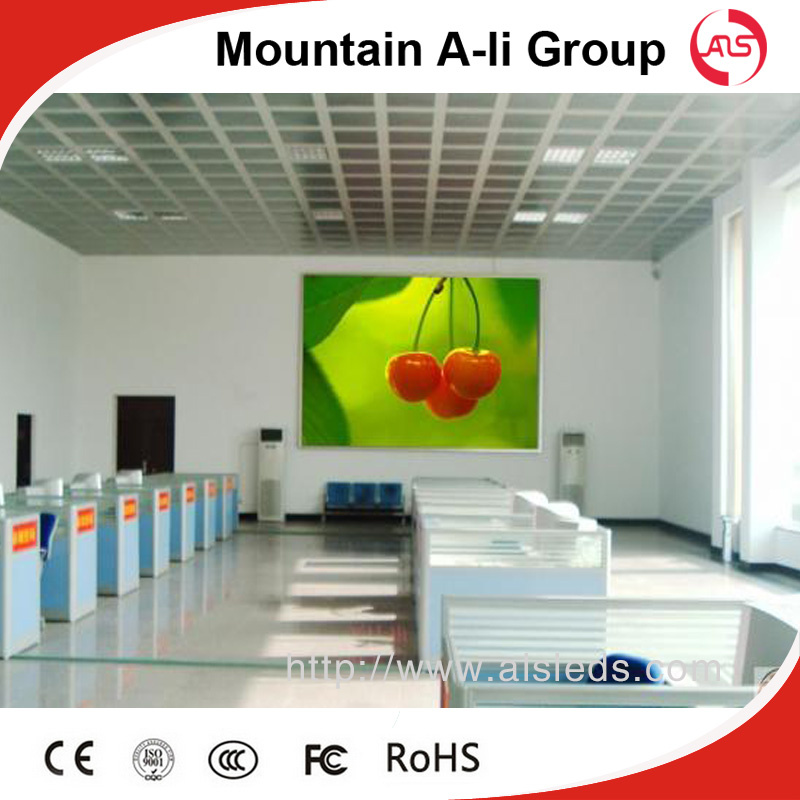

Application:
1) Large hall, sports arena, banking, telecommunications,
2) Government agencies, terminal, pier, railway stations,
3)Stock market and othertrading marketm medical systems,
4) Electric power,galleries, and other publicity, adverting,
information dissemination, the guide places, and so on.
