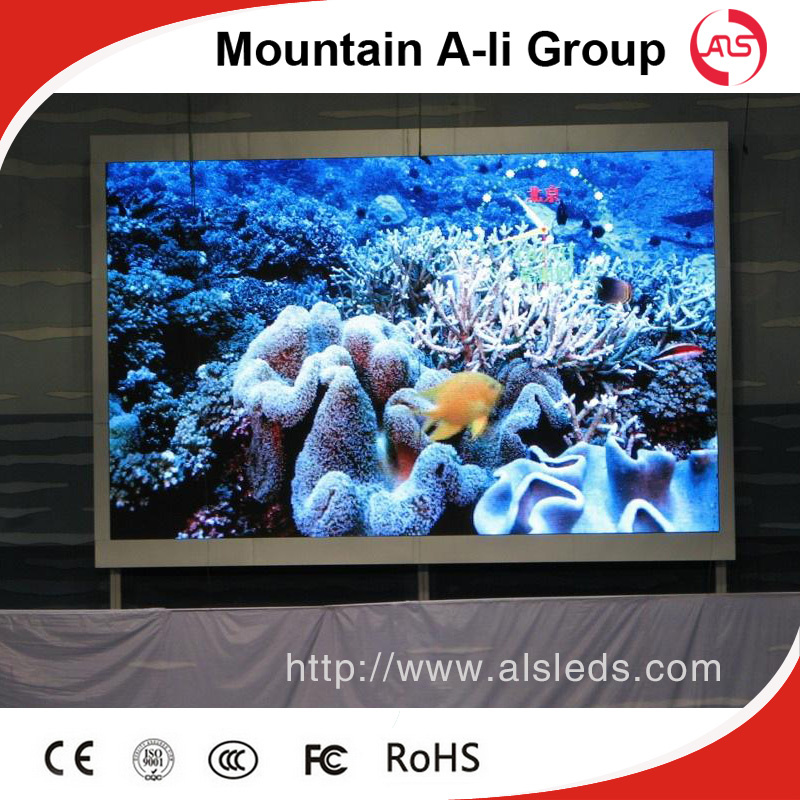

Product Description
Product features:
1) Light, color can be customized
2) Full magnesium design, cooling well, no fans, no noise, anti-interference
3) A ssembly of high prcision, the gap can be controlled less than 0.2mm,
cabinet installation just 20 seconds
4) the cabinet size can be user-friendly ddesigned according to the module size
5) Fast disassembly module just 10 seconds, convenient replacement and maintenance
6) Durable cabinet stucture
P4 indoor Surface Mounted Module Technical Parameters
The specifications of modules |
|
| Items | Parameter |
| Product Model | P4 Indoor Full Color LED Module |
| Module size | 256mm*128mm |
| Pixel pitch | 4mm |
| Pixel density | 62500dots/m2 |
| Pixel configuration | 1R1G1B |
| Module resolution | 64dots(W)*32dots |
| Module maximum power consumption | 18W |
| Module Thickness | 1.3CM |
| Module Weight | 0.18kg |
| Driving method | Constant Current Driving |
| Scanning method | 1/16scan |
| Interface | HUB75-A |
| Brightness | ≥1500cd/m2 |
| The specifications of cabinets |
|
| Cabinet size | 512mm*512mm |
| Module quantity | 16pcs |
| Power supply | 5V/40A 5V/60A |
| Cabinet resolution | 128*128dots |
| Optimal viewing distance | 4M~20M |
| Optimal viewing angle | 160°(W) 120°(H) |
| RHWorking temperature | (Work :-20°C~+60°C) |
| System operating humility | 10%-95% |
| The specifications of power supplier |
|
| Operating Voltage | AC220V±10% |
| Average power consumption | 350W/H |
| Maximum power consumption | ≤160W/m2 |
| Electric current | ≤20mA(single LED) |
| The specifications of control card |
| Control Panels | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control model | Synchronization with PC |
| The specifications of the main technical parameters |
|
| Driving device | Constant Current Driving |
| Refresh rate | ≥600HZ |
| Grey scale | RGB Each 256, can display 16.7M colors) |
| MTBF | ≥9000hours |
| Power switch | Automatic Switch |
| Display Mode | 800*600/1024*768/1280*900 |
Application:
1) Large hall, sports arena, banking, telecommunications,
2) Government agencies, terminal, pier, railway stations,
3)Stock market and othertrading marketm medical systems,
4) Electric power,galleries, and other publicity, adverting,
information dissemination, the guide places, and so on.
