Product Description
Shenzhen Mountain A-Li is specialized in LED display, LED display screen, outdoor led display, advertising led display and LED billboard. We offer good products and customized solution that meet the need of our customers.

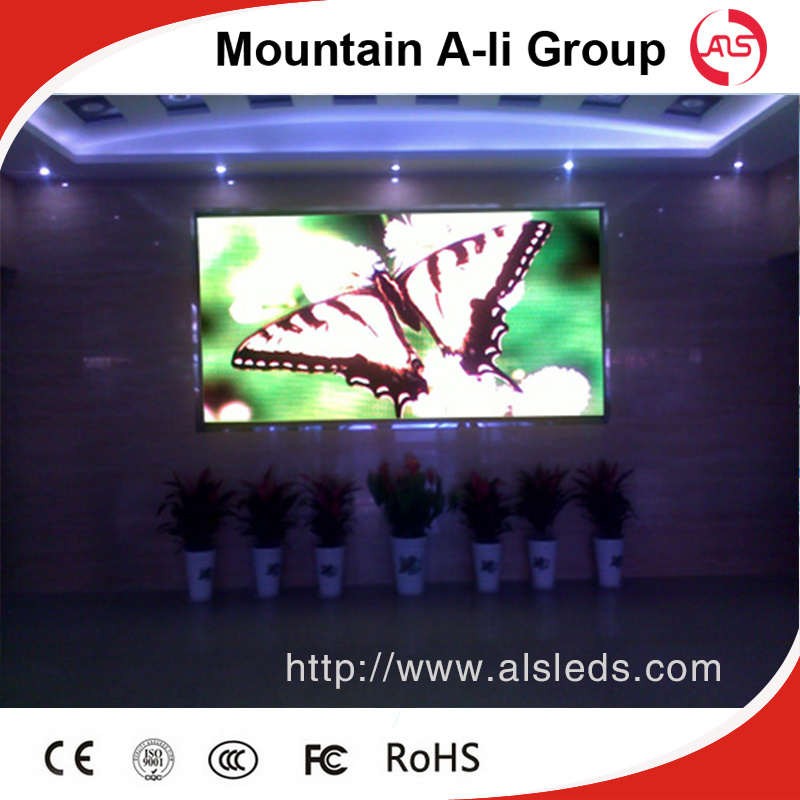

Indoor LED Display Feature
1. Full color indoor led display has high brightness and adjustable contrast. This model has a good lighting accordance and has no mosaic.
2. indoor LED display has larging view angle, it also has a better viewing effect for text, graphic and video ects, any LED in each pixel can be respectively repaired.
3. Computer VGA indoor display with real-time synchronization output, and applies to all types of Internet connections with the media to transmit real-time information.
4. Led screens have brightness strong, static driving scan mode, larger power-driven.
5. In the visual distance of the full color LED sign surface direct sunlight, display clearly visible.
6 is a professional LED stage display, LED Indoor video wall, Wedding LED display, The stage LED electronic screen, LED large screen full color display, advertising led display, indoor led display, indoor led display manufacturer.
Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributoership are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win
6. Chipshow can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Mainland China
5. Warranty time: 2 years
6. Delivery time: 5-12 working days
Items | Parameter |
| Product Model | P4.81 Full Color Led Module |
| Module size | 250mm*250mm |
| Pixel pitch | 4.81mm |
| Pixel density | 43264dots/m2 |
| Pixel configuration | 1R1G1B |
| Module resolution | 52dots(W)*52dots(H) |
| Module maximum power consumption | 15W |
| Module Thickness | 14.85cm/27.15CM |
| Module Weight | 0.154kg |
| Driving method | Constant Current Driving |
| Scanning method |
|
| Interface | HUB75-A |
| Brightness | ≥1800cd/m2 |
| The specifications of cabinets |
|
| Cabinet size | 500mm x 500mm |
| Module quantity | 4pcs |
| Power supply | 5V/40A 5V/60A |
| Cabinet resolution | 104*104dots |
| Optimal viewing distance | 4M ~ 50M |
| Optimal viewing angle | 160°(W) 120°(H) |
| RHWorking temperature | (Work :-20 °C~ +50 °C ) |
| System operating humility | 10%-95% |
| The specifications of power supplier |
|
| Operating Voltage | AC220V±10% |
| Average power consumption | 120W/H |
| Maximum power consumption | ≤300W/square meter |
| Electric current | ≤20mA(single LED) |
| The specifications of control card |
| Control Panels | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control model | Synchronization with PC |
| The specifications of the main technical parameters |
|
| Driving device | Constant Current Driving |
| Refresh rate | ≥400HZ |
| Grey scale | RGB Each 256, can display 16.7M colors) |
| MTBF | ≥9000hours |
| Power switch | Automatic Switch |
| Display Mode | 800*600/1024*768
|
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
