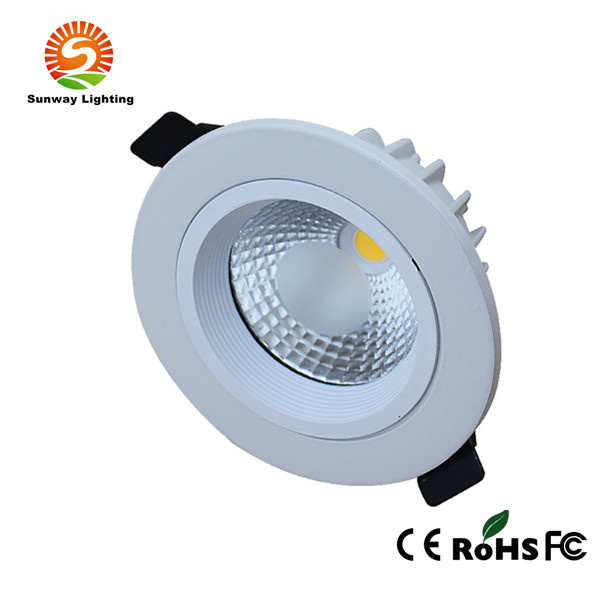

Hight Brightness COB Downlight LED Ceiling Light
| Price: |
US $ 10/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
COB led ceiling light
Specifications:
1. Light Source: Epistar COB/ Samsung SMD 5630 LEDS
2. Power: 3-60W COB and SMD led downlight for your option
3. Beam Angle: 120degree
4. Voltage: AC85-265V
5. Lumen: 100lm/w
6. CRI>80, PF>0.95
7. CCT: 2700-8000k
8. Certifications: SGS/CE/ROHS/FCC
9. 3 years warranty
10. Operating Temperature:-20-50
Pictures of Series of LED Downlight
Model
Dimensions
Hole Size
Power
Lumen
CCT
CRI
PF
SW-DL-01
D100*H45mm
φ85mm
5W
480-500lm
2700-8000K
>80
>0.9
SW-DL-02
D130*H50mm
φ90mm
7W
680-700lm
2700-8000K
>80
>0.9
SW-DL-03
D145*H63mm
φ125mm
10W
930-1000lm
2700-8000K
>80
>0.9
SW-DL-04
D165*H53mm
φ139mm
12W
1150-1200lm
2700-8000K
>80
>0.9
SW-DL-05
D142*H65mm
φ125mm
15W
1420-1500lm
2700-8000K
>80
>0.9
SW-DL-07
D190*H55mm
φ164mm
18W
1730-1800lm
2700-8000K
>80
>0.9
SW-DL-08
D158*H75mm
φ140mm
20W
1920-2000lm
2700-8000K
>80
>0.9
SW-DL-09
D220*H58mm
φ193mm
24W
2330-2400lm
2700-8000K
>80
>0.9
SW-DL-10
D245*H65MM
φ220mm
30W
2880-3000lm
2700-8000K
>80
>0.9
SW-DL-11
D226*H108mm
φ210mm
40W
3880-4000lm
2700-8000K
>80
>0.9
SW-DL-12
D282*H130mm
φ265mm
60W
5780-8000lm
2700-8000K
>80
>0.9
LED Down lights Features
Green Illumination: No strobing during working, fast response (no delay) , no damage with frequency switching and energy saving 90% than conventional down lights.
Circuit Design: Constant current isolated circuit design with wide voltage range and wide frequency.It is not only safe , but also small measurement with high efficiency and high power factor .
Long lifespan: TOPPO introduce the advanced thermal management technology of Samsung LED. The light decay of TOPPO products is very low and the lifespan is above 50,000 hours.
Production Machinery:
Machine Name
Brand & Model No.
Quantity
Number of Year(s) Used
Condition
Auto Brush Paste Machine
No Information
1
4.0
Acceptable
SMT Machine
No Information
4
4.0
Acceptable
Reflow Soldering Machine
NS-1000II
1
4.0
Acceptable
Wave Welding Machine
GSD
1
4.0
Acceptable
Manual Punch Machine
No Information
1
4.0
Acceptable
LED Photo Electricity Oven
TP-SB-000
1
4.0
Acceptable
Laser Marking Machine
No Information
1
4.0
Acceptable
Table Cutting Machine
JT350
1
4.0
Acceptable
Testing Machinery:
Machine Name
Brand & Model No.
Quantity
Number of Year(s) Used
Condition
Digital Bridge Tester
JK2817BLCR
1
4.0
Acceptable
Digital Power Meter
Chroma
1
4.0
Acceptable
Integrating Sphere
PMS-8000
2
4.0
Acceptable
LED Photometric and Electric Tester
No Information
1
4.0
Acceptable
EMI Testing Machine
KH3939
1
2.0
Acceptable
Gonion Photometer
GO-2000
1
2.0
Acceptable
Ageing Tester
No Information
12
4.0
Acceptable
Multiplex Temperature Tester
JK-8/16
1
4.0
Acceptable
Digital Oscilloscope
DPO3034
1
4.0
Acceptable
Application Area:
1. School / Universities / Hosptial /Hotel / Home
2. Conference / Meeting room / Show Room
3. Commercial Complexes
4. Residential / Institution buildings
Certifications:
CE/ROHS/FC
Trade Terms:
1. We accept T/T, Western Union, Paypal and Money Gram payment.
2. Payment: 30% deposits before production, 70% balance to be paid before delivering.
3. Lead time:normally in 7~15 days after deposit received
4. Sample policy:Samples are always availble for each model.Samples can be ready within 5 days once payment received.
5. Shipping port: Shenzhen,China
6. Discounts:We offer discount for big quantity.
Delivery detail:
We ship goods by UPS/DHL/FEDEX/TNT express which takes 3~ 5 days to arrive,or by air cargo which takes about one week to arrive,or by sea which takes about one month to arrive,depending on your actual requirements.
Our service:
1.Your inquiry related to our products or prices will be replied in 24hours.
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM, any your customized lightings we can help you to design and put into product.
| Prod Model: |
SW-DLCOB01-B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
12W |
| Size: |
110*110*75mm |
| Cutout: |
90mm |
| Lumen: |
100-110lm/W |
| CRI: |
>80 |
| Certifications: |
CE/RoHS/FC/SAA |
| Pf: |
>0.95 |
| Warranty: |
3 Years |
| Original Place: |
Shenzhen |
| Driver: |
Dimmable |
| Light Source: |
LED |
| Appearance: |
Square |
| Type: |
Embedded |
| Emitting Color: |
White |
| Certification: |
VDE |
| Base Material: |
Metal |
| Voltage: |
220V |
| Dimmable: |
With Dimmable |
| Housing Material: |
Aluminum |
| Beam Angle: |
120 |
SUNWAY LIGHT (HONGKONG) Co., Limited registed in Hongkong 2013, with brand "SUNWAY LIGHTING", which is an innovational and professional LED light manufacturer located in Shenzhen of China. SUNWAY's China company was established in 2008, with 8 year fast development, we have built a stable supply chain and sales route up to now. Working with high quality LED packing factories, LED driver factories, LED light accessory factories makes a lot of SUNWAY's clients success in their local market.
SUNWAY has owned an over 2000 square meters assembly plant in Shiyan and over 300 employees working with. Three R & D departments, over 20 salesperson team, more than 100 clients spread all over the world, all with a common dream, we work hard together just want to make sure all customers could enjoy our quality, energy-saving products in low-carbon life.
SUNWAY has produced a perfectly LED light series, LED strips, LED panels, LED downlights, LED tubes, LED bulbs, LED ceiling lights, LED aquarium lights, LED bars, LED working lights, LED underground lights, LED pool lights, LED floodlights, LED spotlights, LED modules. Our products mainly aim at the area of the high-end LED commercial lighting, industrial lighting, outdoor and indoor decoration lighting, residential lighting. With international standards of production line and quality control equipment, we have passed ISO9001: 2008 quality system certification, most of products have got certificates of SGS, UL, ETL, PSE, CSA, CE, CCC, RoHS.
SUNWAY's success is from human-based management of the headers, our boss and workers work together as a family. Happy mood and excellent working environment makes sure everything goes smoothly on the line.
Management system: Learning from the successful experience of international brands to establish an efficient management organization, establish and improve the incentive management system. Focus on team spirit, truly achieve meritocracy, the effective integration of social resources.
Design and development: Appearance / drive design are from Germany, Italy, Taiwan's top team, the domestic team to focus on LED lighting, power, cooling optics, process control and other issues, and continue to explore.
Quality assurance: In strict accordance with ISO9001: 2008 and 14001 standard operating procedures, improve operational efficiency. Equipped with a full range of production and product.
Test equipment: Fully air-conditioned anti-static, automatic detection power and optical instruments, Japanese automatic SMT production lines, as well as spacious sound automatic aging room.
Welcome to contact our company any time, here we will together create a better tomorrow!
