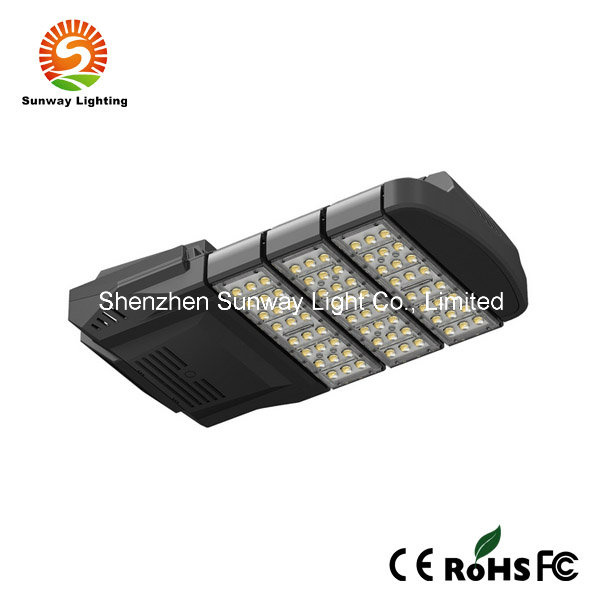

90W Bridgelux-LED LED Street Light, led street light wide wattage input, moduled led street light, led street lighting for highway, bridgelux led street light.
LED Street Llight Features
1. Long life span with 50,000 hours.
2. High efficiency, superbrightness, energy saving and environmental protection.
3. No ultraviolet rays and infrared rays.
4. No flitter, direct current and clear the visual fatigue.
5. High light efficiency LED Bridgelux.The LED Bridgelux coated with a layer of silica gel for concentrating and astigmatism before installing the lens, so that the street light efficiency of our modules reach 110Lm / W.
6. Outdoor use in outdoor luminaires only (minimum Ip65) ,Thunder prevention can reach 6KV
7. Radiator edge lens design with good protection function, so no matter which angle installation will not be direct sunlight, causing the lens aging affect Lifetime.
8. Working under low voltage heat, safe and reliable.When the surface temperature ≤50 ºC (ambient temperature Ta = 25ºC pm);Wide voltage range, universal.The full voltage range constant current between 90 v to 305 VAC, to ensure the life and brightness is not affected by voltage fluctuation.
9. Light distribution technology makes LED light source into surface light source, increasing the light area, eliminate the glare, sublimation visual effect, eliminate visual fatigue.
10. Products are suitable for factory workshop, station, large warehouses, toll station, gas stations, exhibition hall, gymnasium, industrial and mining areas, and other higher requirements of half- outdoor and indoor places.
Technical Parameter
| Power Consumption | 90W |
| Lumen | 6800-7800 lm |
| Input Voltage | 90-305VAC 50/60Hz |
| LED Source | CREE-XPE |
| LED Power | 1-3W / LED |
| LED QTY | 72 pcs |
| CRI | Ra>70 |
| CCT Option | 2800-3200K / 4000-4750K / 5500-6500K |
| Emitting Angle | 120° |
| Housing Material | Squama Stype Lamp Body |
| Surface Material | PC LENS |
| Protection Class | IP65 |
| Electrical Security Standard | I Class |
| Wire Standard | 3*0.75mm² Rubber |
| Environment | -25ºC~+60ºC |
Series Specifications
| Model No. | Name | Specification |
| SW-SLB60W | Moduled LED Street Light | Input: 90-305VAC
Power Supply: MEANWELL
Power Consumption: 60W
CCT: 2700-7000K
Protection Class: IP65
LEDS: BridgeLux 45miL 1W*48PCS
Unit Packing: 489*315*204mm |
| SW-SLB90W | Moduled LED Street Light | Input: 90-305VAC
Power Supply: MEANWELL
Power Consumption: 90W
CCT: 2700-7000K
Protection Class: IP65
LEDS: BridgeLux 45miL 1W*72PCS
Unit Packing: 580*315*204mm |
| SW-SLB120W | Moduled LED Street Light | Input: 90-305VAC
Power Supply: MEANWELL
Power Consumption: 120W
CCT: 2700-7000K
Protection Class: IP65
LEDS: BridgeLux 45miL 1W*96PCS
Unit Packing: 671*315*204mm |
| SW-SLB150W | Moduled LED Street Light | Input: 90-305VAC
Power Supply: MEANWELL
Power Consumption: 150W
CCT: 2700-7000K
Protection Class: IP65
LEDS: BridgeLux 45miL 1W*120PCS
Unit Packing: 762*315*204mm |
| SW-SLB180W | Moduled LED Street Light | Input: 90-305VAC
Power Supply: MEANWELL
Power Consumption: 180W
CCT: 2700-7000K
Protection Class: IP65
LEDS: BridgeLux 45miL 1W*144PCS
Unit Packing: 853*315*204mm |
| SW-SLB210W | Moduled LED Street Light | Input: 90-305VAC
Power Supply: MEANWELL
Power Consumption: 220W
CCT: 2700-7000K
Protection Class: IP65
LEDS: BridgeLux 45miL 1W*168PCS
Unit Packing: 944*315*204mm |
Services
1.Your inquiry related to our products or prices will be replied in 24hrs;
2.Well-trained and experienced staffs to answer all your enquires in fluent English;
3.Tailored professional energy saving solution for you;
4.OEM&ODM, any your customized lightings we can help you to design and put into product;
5.Protection of your sales area, ideas of design and all your private information;
Advantages
1.More than 30 patent technologies;
2.R&D more than 85 peoples;
3.Professional energy saving solutions provider;
4.Excellent Driver Inside;
5.Epistar, Samsung Chips;
7.Delivery on Time;
Application
Street, Lawn, Garden, Highway, Road, etc.
