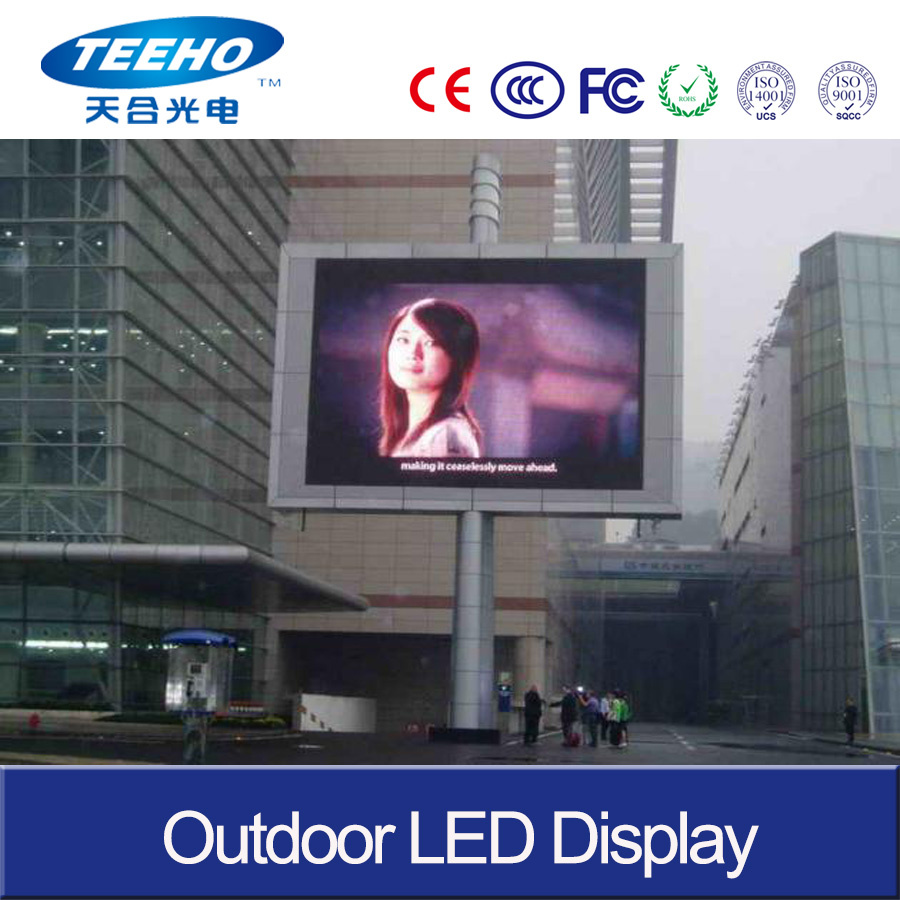

Highly Bright P8 Rental LED Display (outdoor)
PRODUCT DESCRIPTION
1.Clear picture without flicker and distortion
2.Low Consumption , Stable Performance ,Highly Durable
3.Within one year after consignment from factory.
4.Wide Viewing Angle, Seamless Splicing ,High-definition ,Mute Design ,High Contrast
| Led Module |
| Technical parameters | UNIT | parameters values |
| Pixel pitch | MM | 8 |
| Panel size | MM | L256XH128X13 |
| Physical density | /M2 | 15625 |
| Pixel configuration |
R/G/B |
1,1,1 |
| Driving method |
|
Constant current 1/4scan |
| LED Encapsulation | SMD | 3030 |
| Display resolution | DOTS | 32X16=512ots |
| Module weight | KG | 0.26 |
| Module port |
| HUB75-B |
| Module working voltage | VDC | 5 |
| Module consumption | W | 25 |
| Led display |
| Viewing angle | Deg. | H140 V120 |
| Option distance | M | 8-120 |
| Driving device |
| 2016/5020 |
| Every square meter module | PCS | 30.5 |
| Maximum power | W/ M2 | 762 |
| Frame Frequency | HZ/S | ≥60 |
| Refresh frequency | HZ/S | ≥600 |
| Equilibrium brightness | CD/ M2 | ≥6000 |
| Working environment temperature | 0C | -20~60 |
| Working environment humidity | RH | 10%~70% |
| Display working voltage | VAC | AC46~54HZ,220V±15%/110V±15% |
| Colour temperature |
| 9500K-11500K |
| Gray scale/color |
| ≥16.7M color |
| Input signal |
| RF\ S-Video\ RGB etc |
| Control system |
| PCTV nonlinearity card,DVI display card,Linsn control system |
| Mean free error time | HOURS | >5000 |
| Life | HOURS | 100000 |
| Lamp failure frequency |
| <0.0001 |
| Antijam |
| IEC801 |
| Safety |
| GB4793 |
| Resist the electricity |
| 1500V last 1min No breakdown |
| Steel box weight | KG/ M2 | 25(standard steel box) |
| Earth leakage current | mA |
|
| IP rating |
| The back IP56,The front IP56 |
| Steel box size | mm | L768XH768X100 |
PACKAGING&SHIPPING
1.Within 15-27 days after receiving deposit.
2.Wooden case,plywood case and flight case choosen by customers.
OUR SERVICE
1.We guarantee all our display, modules, spare parts for ONE years after consignment from factory.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty, we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by e-mail, we will reply you at once when we get it and offer you a good solution to solve the proble
