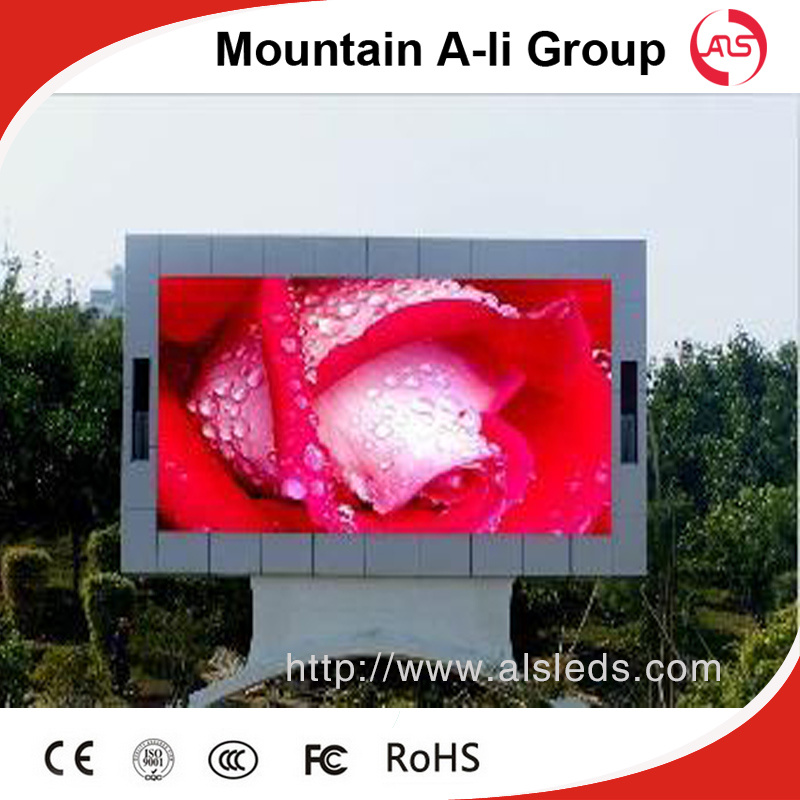

High Resolution P6 Outdoor Full Color LED Display

Product Description:
Mountain A-Li Group Electronic Company
Professional development manufacturing LED display system products and lighting products, was founded in 2000, own workshop area 20000 m2, branch office and agents cover all over China, with about 300 employees.
Application and Market
1. Application
Wide applied in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
2. Market:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe

Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributoership are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win

Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Mainland China
5. Warranty time: 7years
6. Delivery time: 5-12working days


Specifications:

outdoor full color rental led display
1)High bright rental led display
2)die-casting aluminum cabinet
3)CE,RoHS

p6 led video wall screen:

Portable Rental led display Applications & Characteristics:
Portable Rental LED display is perfect for car shows, sporting events, expositions, fashion shows, concerts, public community events, ceremonies, conventions, radio and television promotions, and charitable fundraisers.
It creates an unique vision experience in audience. In addition, the annotative video and vivid image become an effective and impressive media for advertisers to prompt their products and service

No.	Specifications	Project
1.	Model	P6 outdoor full color led display
2.	LED chip	Silan/Epistar
3.	Physical Pixel Pitch	6mm
4.	Physical Pixel Density	27777dots/m 2
5.	Pixel composition	SMD,1Red, 1Green,1Blue
6.	Moduel Size	192mm*192mm
7.	Moduel resolution	32*32dots
8.	Cabinet thickness	< 170 mm
9.	Bracket of cabinet	Easy to install onto the LED cabinet and unistall .
10.	Brightness	≥ 6500cd/ m 2
11.	Colors	16.7million
12.	Viewing angle	Horizontal ≥120°, Vertical : ≥ 120°
13.	Viewing distance	5m -100m
14.	Scan frequency	≥600 Hz There will be one receive card in each cabinet ,so that the LED display wont sparked . Also it is very easy to move and connetct
15.	Video Frame Rate	≥150 fps
16.	Control method	Controlled by PC, synchronous display
17.	Life span( half brightness)	≥100,000 hours
18.	Weight	14Kg  for  cabinet
19.	Average power consumption	300W/sqm
20.	Peak power consumption	1000W/sqm
21.	Input voltage	AC220V/50Hz ±10% or AC110V/60Hz ±10% or AC380V/60Hz ±10%
22.	Operating Environment	Temperature:-20+60 Humidity:10%95%RH
23.	Operating system	Windows 98/2000/ME/XP
24.	Type of video signal	S-video, composite video ,RGB ,VGA ,DVI
