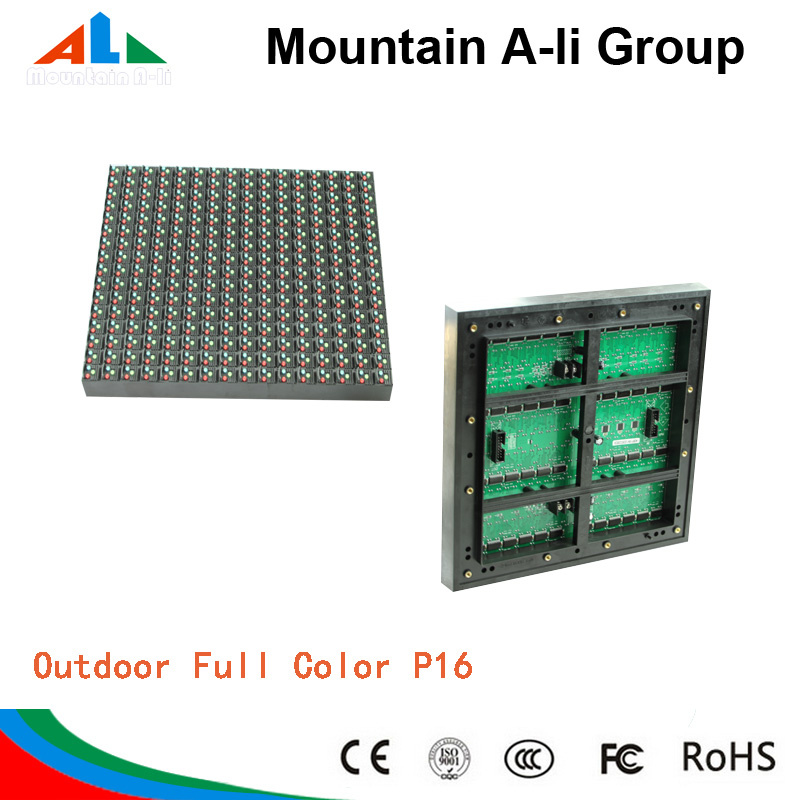

High Resolution Outdoor P16 Full Color LED Display
| Price: |
US $ 550-860/Square Meter |
| Trade Terms: |
FOB,CIP,EXW |
| Min Order: |
1/Square Meter |
| Pay Type: |
T/T,Western Union |
P16 Outdoor Full Color LED Display Screen.
Outdoor Full Color LED Display screen P16 for Advertisement. It is RGB 346 LED lamps. High Brightness LED display that can reach 14 bits color, can show clear, vivid video and images outdoors even under direct sunlight. Cheap cost, high return!
It has the following features:
1. Our special PCB design can save 30% power consumption compared with common product
2. High brightness(over 7500nits) and can be adjusted automatically accordingly to the environment;
3. IP65 waterproof front. With a special cover on the rear side of cabinet, it can avoid water very well
4. No gap between adjacent cabinets so surface is smooth. It has vivid color reproduction, no mosaic;
5. Aluminum cabinet, lighter and not easy to go rusted.
6. Any single dead lamp can be reaired respectively, which reduce the cost of maintenance.
7. Can reach wide viewing angle. You can get vivid effect within any position of the viewing range;
It can be FLAT or Curved as per your requirements.
|
Technical Prameters |
|
PROJECT |
P16 full color outdoor LED display screen |
|
Pixel pitch |
16mm |
|
Pixel density |
3906Pixels/sqm |
|
Module size(W*H) |
256 (mm)W*256 (mm)H |
|
|
Module pixels(W*H) |
16 Pixels(W)*16 Pixels(H) |
|
|
Pixel configuration |
1Red 1Green 1Blue |
|
Drive mode |
constant current driving static scan |
|
LED lamp type |
Epistar DIP346 |
|
Cabinet size(W*H*D) |
1024 (mm)W*1024 (mm)H |
|
|
Cabinet resolution |
64 Pixels(W)*64 Pixels(H) |
|
|
Color scale |
65,536 degree |
|
View angle(H/V) |
120/70 degree |
|
Brightness (White balance) |
≥7500cd/sqm. |
|
Power consumption(one cabinet) |
Max:1000W/sqm. Average:350W/sqm. |
|
Operating Voltage |
AC100V±10% or 220V ±10%; 50---60HZ |
|
Net weight |
60 Kg / M 2 for iron cabinet |
|
Operating temperature |
-20°C----+50°C (Customized power supply:-45°C---+60°C) |
|
Operating humidity |
10%_95%RH |
|
Life time |
≥100,000hours |
|
MTBF |
900hours |
|
Whole Display Flatness |
≤0.1mm Juncture |
|
Frame frequency |
>60 Hz/s |
|
Refresh rate |
≥3000Hz /s |
|
Control distance |
100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
|
Power |
110V/220V±15% 50--60Hz |
|
LED control system |
LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
|
Operating system |
Windows 2000 / Windows Xp / Windows 7 |
|
Protections for outdoor display |
IP65 |
|
Maintenance way |
Rear Access |
|
Accepting signal with video processor |
PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI
|
| Prod Model: |
p16 outdoor led led display |
| Markets: |
North America,South America,Africa,Oceania,Mid East,Eastern Asia |
| Module Size: |
256mm*256mm |
| Module Resolution: |
16dots(W)*16dots(H) |
| Max Power: |
35W |
| Module Thickness: |
33cm |
| Module Weight: |
1kg |
| Brightness: |
7500/M2 |
| Optimal Viewing Distance: |
10m~50m |
| Control Mode: |
Synchronization Control |
| Mtbf: |
9000hours |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Application: |
Advertising |
| Pixel Configuration: |
1R, 1G, 1B |
| Pixel Pitch: |
16mm |
| Display Function: |
Video Display |
| Scanning Mode: |
Static Scan |
| Certification: |
FCC /IP65 |
| Pixel Density: |
3906(3906CD/M2) |
| Average Power Consumption: |
800W/M2 |
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
