Product Description
Welcome to A-Li Group!
Company Profile:
We provide Indoor LED Screen, Outdoor LED Screen, and more
Shenzhen Mountain ALi Group Electronic Technology Co.,LTD was established in 2000s. Has developed to China's largest LED diode factory. With the registered capital of one hundred million RMB, Mountain ALi Group then was founded. A subsidiary,Shenzhen Sancai Photoelectric Co.,Ltd was established in the same year, mainly developing and manufacturing LED Full Color Display. During 2012, it is developing rapidly, growing up fast. We have opened many suboffice in different provinces and cities, such as Zhengzhou, Shandong, Xi'an, Shenyang, Chengdu, Beijing, Jiangsu, Xinjiang etc. Shenzhen Mountain ALi Group focus on service series of specialized market advertising and brand, stadiums, events and entertainment, provide them with different patterns of led application product solutions. Now our products are widely used in dozens of countries worldwide, continue to emerge in the international renowned events and occasions, capture and focus the imagination of millions of viewers.
Products list
Item No.: | Description | Dimension | Brightness |
| INDOOR |
|
|
| 1 | SMD indoor p3mm | 192mm*96mm | 2000cd/m2 |
| 2 | SMD indoor p4mm | 256mm*128mm | 2000cd/m2 |
| 3 | SMD indoor p5mm | 320mm*160mm | 2500cd/m2 |
| 4 | SMD indoor p6mm | 192mm*192mm | 3000cd/m2 |
| 5 | SMD indoor p7.62mm | 244mm*244mm | 2000cd/m2 |
| 6 | SMD indoor p10mm | 320mm*160mm | 3000cd/m2 |
| OUTDOOR |
|
|
| 7 | DIP 3in1 outdoor P6 | 192*96mm | 7500cd/m2 |
| 8 | DIP 3in1 outdoor P7 | 224*112mm | 7500cd/m2 |
| 9 | DIP 3in1 outdoor P8 | 256*128mm | 8000cd/m2 |
| 10 | SMD 3in1 outdoor P6 | 192mm*192mm | 6000cd/m2 |
| 11 | SMD 3in1 outdoor P8 | 256mm*128mm | 6500cd/m2 |
| 12 | DIP 3in1 outdoor P10 round screen | 320*40mm | 8500cd/md |
| 13 | outdoor p10mm | 160mm*160mm | 8500cd/m2 |
| 14 | outdoor p12mm | 192mm*192mm | 7500cd/m2 |
| 15 | outdoor p13.33mm | 320mm*160mm | 5500cd/m2 |
| 16 | outdoor p16mm | 256mm*256mm | 7500cd/m2 |
| 17 | outdoor p20mm | 320mm*320mm | 7000cd/m2 |
Our features:
1.High quality:
Use high quality LED with high luminous efficiency and low brightness decay to make the display stable.
2.Good effect:
To show vivid and clear pictures with high resolution, but low cost; Has good display effect in both pictures and letters because of using real pixel technology.The products support multiple display modes.
3.Easy maintenance:
Can fix the single point to save the maintenance cost.
4.Good uniformity:
Brightness difference within 10% between any two LEDs, to ensure the brightness and color uniformity of the display; Good uniformity in color solve the problem of mosaic well.
Our advantages:
1.Price advantage: No. 1 cost effective. The price is very good, please contact us for an offer. You can compare and know!
2.Technology advantage:
Due to the light weight and low power consumption, it can reduces the labor cost, operating cost and transportation cost.High refresh rate: Over 3000HZ/S; When you take photoes or video, no scaning lines.
3.Application advantage:
It's wide Application, such as stage rental events, exhibition, wedding and so on.
4.Spending advantage
Due to the light weight and low power consumption, it can reduces the labor cost, operating cost and transportation cost.
5.Service advantage:
After service dept& Tech Dept. Perfect after sales system. We react in 1 day, our sales will submit a good proposal based on your project, welcome to send an inquiry and visit our factory in Shenzhen, China
Parameter
The specifications of modules |
|
| Items | Parameter |

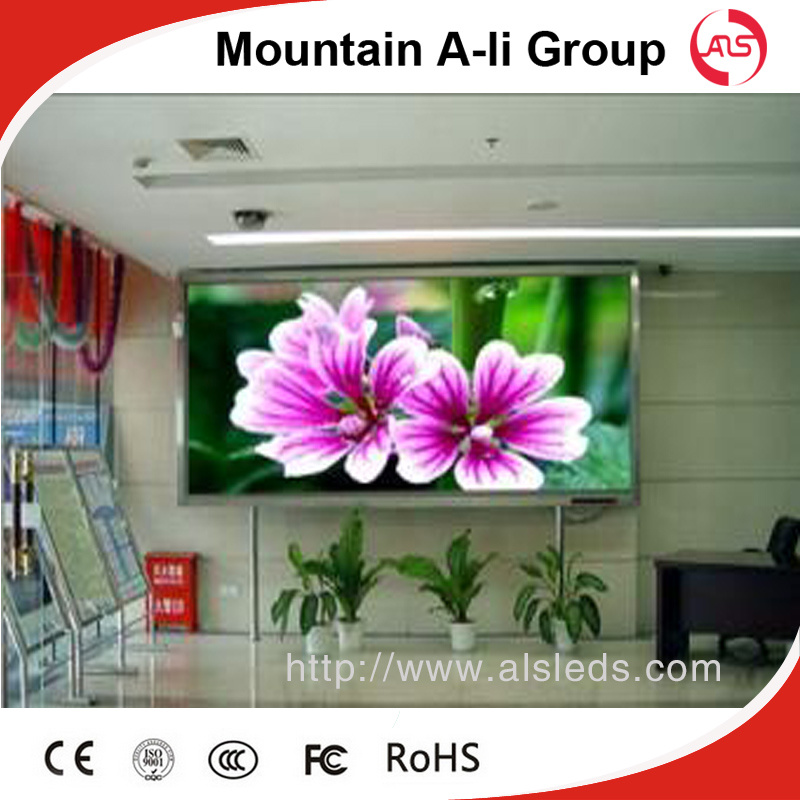

| Product Model | P3.91 Indoor Full Color LED Module |
| Module size | 250mm*250mm |
| Pixel pitch | 3.91mm |
| Pixel density | 65536dots/m2 |
| Pixel configuration | 1R1G1B |
| Module resolution | 64dots(W)*64dots |
| Module maximum power consumption | 32W |
| Module Thickness | 1.4CM |
| Module Weight | 0.573kg |
| Driving method | Constant Current Driving |
| Scanning method | 1/16scan |
| Interface | HUB75E |
| Brightness | ≥1200cd/m2 |
| The specifications of cabinets |
|
| Cabinet size | 500mm*500mm |
| Module quantity | 4pcs |
| Power supply | 5V/40A 5V/60A |
| Cabinet resolution | 128*128dots |
| Optimal viewing distance | 4M~20M |
| Optimal viewing angle | 160°(W) 120°(H) |
| RHWorking temperature | (Work :-20°C~+60°C) |
| System operating humility | 10%-95% |
| The specifications of power supplier |
|
| Operating Voltage | AC220V±10% |
| Average power consumption | 168W/H |
| Maximum power consumption | ≤560W/m2 |
| Electric current | ≤20mA(single LED) |
| The specifications of control card |
| Control Panels | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control model | Synchronization with PC |
| The specifications of the main technical parameters |
|
| Driving device | Constant Current Driving |
| Refresh rate | ≥600HZ |
| Grey scale | RGB Each 256, can display 16.7M colors) |
| MTBF | ≥9000hours |
| Power switch | Automatic Switch |
| Display Mode | 800*600/1024*768/1280*900 |
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
