High Reliable Smart LED Backlights Module for Large Area Lighting (DLP2)
| Price: |
US $ 50-58/Square Meter |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,Paypal,Western Union |

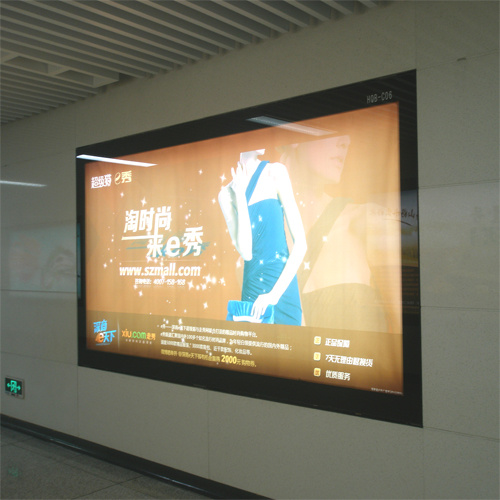

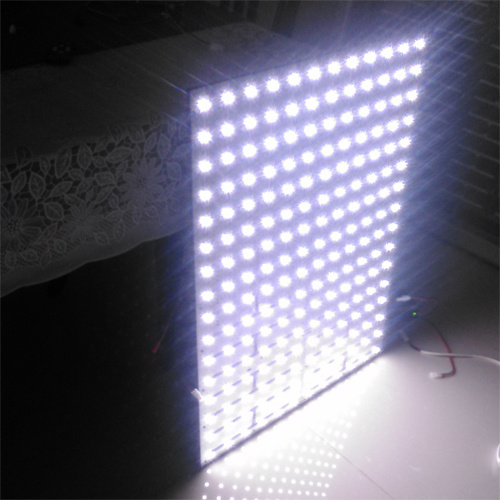

DLP-2 digital LED backlights module for large area advertising display or lighting.
This is a LED lighting system based on novel techniques of "Digital discrete current constant driving". A SCM (single chip microcomputer) is used to control all the LED drivers working independently. The system combines all the advantages of common current constant and voltage constant driving, thus it can be applied in various fields, especially suitable for large size LED lighting system.
This novel LED lighting system has the advantages as below.
- Highly energy saving (30% more enery saving than normal LED backlit lighting)
It is about 30% more energy saving more than normal LED lighting system. Because no current limiting resistance is used, the system offers much less power consumption than voltage constant driving. As the working current for each module is precisely controlled, it is more energy saving than common current constant system.
- High reliability (2~3 times of life expectation as normal LED lighting)
Because the discrete current constant driving is applied, the value of working current of each LED module is modified to be precisely matching the electrical parameters. The LED can work stably for long period. Further more, metal substrate panel is used as reflector, which is also highly effective for heat removing. The life time of this system is double as conventional current constant driven SMD LED, while triple as voltage constant driven SMD LED.
- Low cost and convenient application (Free will to splice)
Various unit panel of different size are available. There are two interfaces in each unit, which makes the connection with other units very convenient. Brightness is tunable by wireless controlling.
The product has been certified by CE, European Energy Efficiency (A++) and Chinese Standard GB7000.Specifications of digital LED lighting modules| | Model | Size(cm) | Technical data | | | Model | Size(cm) | Technical data |
|
| Double sides lighting module | 4030D | 40X30 | 96 LEDs
14.5 W
1920 lm | Single side lighting module
| 8030S | 30X80 | 96 LEDs
14.5 W
1920 lm |
|
| 2030S | 20X30 | 24 LEDs
3.6 W,
480 lm |
|
| 4020D | 40X20 | 64 LEDs
10 W
1280 lm |
|
| 2040S | 20X40 | 32 LEDs
4.5 W
640 lm |
|
| 3030D | 30X30 | 72 LEDs
11 W
1440 lm |
|
| 2050S | 20X50 | 40 LEDs
6 W
800 lm |
|
| 3020D | 30X20 | 48 LEDs
7.5 W
960 lm |
|
| 2060S | 20X60 | 48 LEDs
7.5 W
960 lm |
|
| 2020D | 20X20 | 32 LEDs
5W
640 lm |
|
| 2070S | 20X70 | 48 LEDs
7.5 W
1000 lm |
|
| Single side lighting module | 3075S | 30X75 | 90 LEDs
13.5 W
1800 lm |
|
| 2080S | 20X80 | 64 LEDs
10 W
1280 lm |
|
| 20100S | 20X100 | 80 LEDs
12 W
1600 lm |
|
| 2090S | 20X90 | 72 LEDs
11 W
1440 lm |
|
| Prod Model: |
DLP2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Energy Saving Level: |
European a++ |
| Lifte Expectation: |
10 Years |
| Light Dim: |
Remote Control or Scm Programing |
| Type: |
Combined Light Box |
| Usage: |
Advertising |
| Material: |
Aluminum |
| IP Rating: |
IP65 |
| Shape: |
Square |
| Suitable For: |
Indoor |
| Installation: |
Wall-Mounted |
| Pringting Carrier: |
Flex Banner |
| Style: |
Modern |
| Certification: |
CE |
Nanjing Jayan Materials Technology Co., Ltd., established on April 2011, is a technology company located in Nanjing City, Jiangsu Province, China.
With our professional background and knowledge on polymer chemistry and processing, polymer optics, as well as LED electronics, we have been engaged on business fields including acrylic sheets and polystyrene sheets, light guide and light diffuser, LED light and luminaries, and plastic processing machinery.
Up to now, we have annual production capabilities of 3500 tons cast acrylic sheets, 3000 tons extruded acrylic sheets and 3000 tons extruded polystyrene sheets. Based on the production capability, we provide light guide panel and light diffusion panel both of acrylic and polystyrene for various application. With leading technology in polymer chemistry and polymer optics, we design and offer various polymer products for LED light according to customized requirements.
From May 2014, we have started business of LED light and luminaries based on the innovative technology named "Digital independent current constant driving". A Single Chip Microcomputer (SCM) is applied to manage each LED working independently, which makes LEDs much more stable and energy saving than conventional LED lighting. A series of special LED lights have been developed successfully upon this novel technology, including LED backlights, LED panel light, and LED ceiling lamp.
Having accumulated abundant experience of polymer processing, we also provide plastic processing machinery in laboratory size by OEM.
We are keeping endeavor on research and development, and aspiring to be a leading technology company in fields of performance polymers and LED lights.
