Home LED Light Products High Refresh Rate/Good Quality P3 Indoor Die-Casting Aluminum LED Cabinet/Screen/Display

High Refresh Rate/Good Quality P3 Indoor Die-Casting Aluminum LED Cabinet/Screen/Display

High Refresh Rate/Good Quality P3 Indoor Die-Casting Aluminum LED Cabinet/Screen/Display
Price: US $ 8/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T,D/P

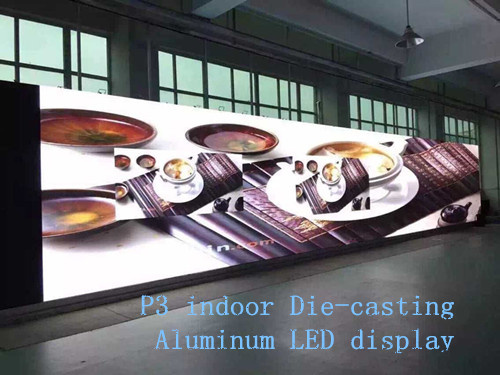

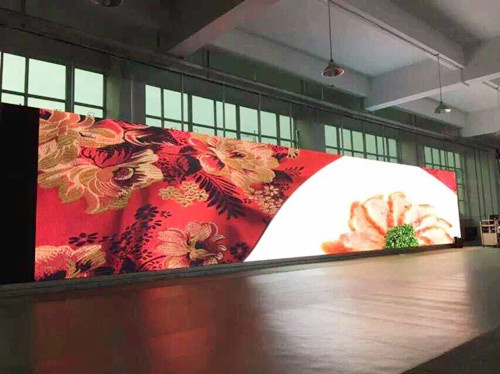

P3 indoor Die casting aluminum rental used led screen

Features:
1.Its can set fans, that's break up point. Help to cool down the display and then longer the life span and reduce working failures..

2.Can be changed to normal fixed use for advertising.

3. The cabinet material is die-casting aluminum which is proof pressure (difficulty out of shape), it's high precision (seamless splice), it has long lifespan (can be reused million times). It's thin and light,  it's so easy to move and install.

4.The LED lamps are black, the contrast ratio is higher, the playing effect is better.

5.It's wide Application, such as stage rental events, exhibition, wedding and so on.

6.We use the high refresh IC,MY9868,the refresh rate can reach 3800HZ.


Part Number

HERO-IDS4F-4S

Resolution

64(H)×64(V)

Pixel Pitch

3mm

LED Configuration

1R1G1B 3-IN-1 SMD

Pixel Density

111,111 pixels/ m2

Module Size

192*192mm

Driving IC

MBI5024

Driving Method

1/16 Scan

Cabinet Weight

28kg/sq.m.

Mechanical Ratings

Hanging Weight Support

2T

Surface Flatness

Gap<0.5mm

Optical Ratings

Brightness

6000~6,500cd/ m2

View Angle

level140°/vertical40°

Gray Scale

16bits input,  correction with 14 bits

Display COLOR

16.7M

Brightness Adjustment

0~100%

Power Supply

Operation Power

90~260V 50~60Hz

Max. Power Consumption

1560W/ m2

Average Power Consumption

625W/ m2

Control System

Control Mode

Synchronous display with control PC by DVI

Frame Update Frequency

60~85Hz

Screen Refresh Frequency

300~1000Hz

Gamma Correction

-5.0~+5.0

Support Input

Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

Control Distance

Ethernet cable<120m or Fiber Optic<10Km

Support VGA Mode

1024×768, 1280×1024, 1600×1200, 1920×1280

Brightness Correction

Pixel, Module, Cabinet

Environmental

Operating Temperature

-20°~+60°

Operating Humidity

10~95% RH

Operating Life

100,000hours

MTBF

5000hours

Protection Level

~

Out of Control Rate

<0.02%











Prod Model: P3
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LED Type: SMD2121
Scan Mode: 1/16 Scan
Brightness: 1300~1600CD/ M2
Viewing Angle: 140/140
Refresh Rate: More Than 1080Hz
Lifespan: More Than 100,000 Hours
Max. Power Comsumption: 1560W/ M2
Average Power Consumption: 625W/ M2
Mtbf: 5000hours
Warranty: 3 Years
Tube Chip Color: Full Color
Display Function: Video Display
Pixel Configuration: 1R,1G,1B
Scanning Mode: 1/16 Scan
Display Type: LED Video Display
Application: Shopping Guide
IP Rating: IP43
Certification: ETL
Pixel Pitch: 3mm
Pixel Density: 111111
System Operating Platform: General
Shenzhen LED-HERO Electronic Telechnology Co., Ltd was found in early 2007. Hero committed to the next generation of LED optoelectronic products development, production, sales and service. It is leading the trend of LED industry and providing a full range of solutions to its customers. It has become a modern, large scale, professional LED Photoelectric comprehensive product integration supplier. The products sell well in over 50 countries and regions in Europe, America and Middle East, besides more than 20 provinces across China.

"Hero' S products and solutions include various of indoor and outdoor LED display screen and lighting products with its advanced technology, superior technology design, personalized design elements, large-scale production capacity and diversified cooperation strategy to provide full LED integrated solutions.

"Beat by wisdom, win in morals"is still our insistent faith, Quality is the life of a company. From material purchasing to product researching, development, production, testing, packaging and shipment, Hero abides ISO9001: 2000 international quality control process to make strict control and scientific management, and to achieve perfection. The products have passed the RoHS, CCC, CE and other international quality certification which ensure that each product are stable, reliable, environmental protective.

Excellent talent is the soul. Hero relies on the humanized management, promoting hero culture, exerting employees to have masters spirit. It has established a systematized, specialized production procedure. And it has built a strategic alliance with LED raw materials suppliers and vendors which has realized the resource sharing, division, cooperation, mutual complementarities and high-efficient operation for providing an effective guarantee to Hero' S scale production and diamond quality.

To select Hero, you will win the promise of a hero!
