Home LED Light Products High-Quality Waterproof Square DMX 7X10W RGBW LED PAR for Stage

High-Quality Waterproof Square DMX 7X10W RGBW LED PAR for Stage

High-Quality Waterproof Square DMX 7X10W RGBW LED PAR for Stage
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram

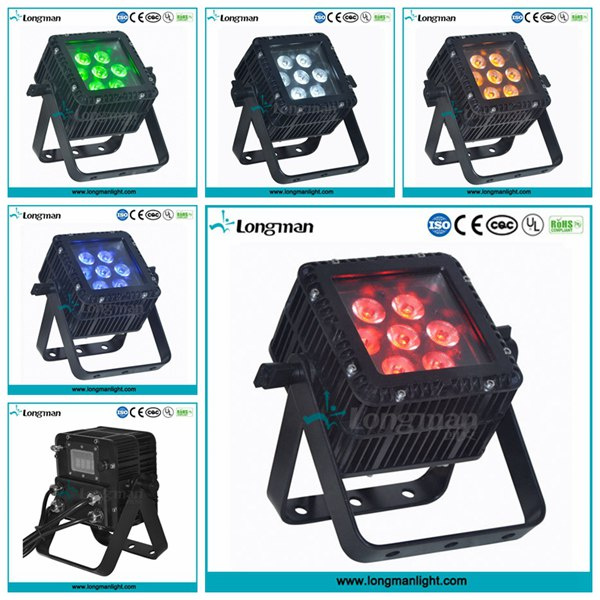

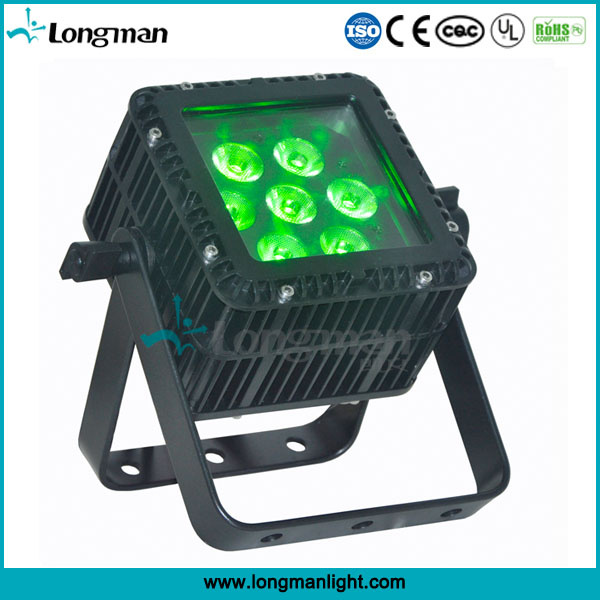

High-quality waterproof square dmx 7x10w rgbw led par for stage



Features:
Outputs more than 2000 Lumens full on,suitable for rental stage architeture.
Field angle (10% intensity) 33 degree standard, mix even color.
Square looking,could equip with banddoor.
Whole lamp body fully used as heat sink, support heatsink 40W at 35ºC rise,built-in NTC.
LED Display board shows DMX signal,offer Dimming curve squarelaw Dim4
With waterproof air valve to balance pressure,get rid of mosuisture on glass innerface.


Specifications:

Input voltage
AC 100-240VAC,47-63 Hz
Output voltage28V DC,Power Factor>0.7
Rated Power60W,Typical Consumption 48W/220V
Light Source7 PCS 10W 4-in-1 FULL RGBW LED.Drive current for each Chip 450mA  Total Light Output 2092Lumens,Luminaire Efficiency 39.7lm/W
Peak Intensity11088C(10%field angle 33 Degree)
LED ColorR=625nm,G=525nm,B=465nm,A=590nm,White=6000K
Color rendering IndexPure White Ra>90,R9>50
Color mixing indexStandard deviation of Chromaticity SDC<0.005
Control signalMeet E1.11 - 2004 USITT DMX512-A,32 bit precise dimming, smooth in low DMX Value dimming,no vision shock
Channels3CH,4CH,5CH,8CH,9CH
DisplayTouch operation,LED display show DMX situation and aotu turn off when no operation
Dimmingwith Dim0-Dim4 5 dimming curve, smooth dimming
PWM frequency>1.5KHz,Flash Rate Endurance Full Load:>12Hz Full load/void load flash
Beam Angles Optional8°,15°,18°,45*15°Etc.
Housing materialDie cast aluminum,Protection Rated IP66
Cooling MethodNeutral Heasink
Thermal protectionNTC overheat protection
Connectors and CablesIP67 Male/Female for fixed application
AccessoriesBarndoor,Hook,Safty Cable,Signal Extesion Cable,Power Extesion Cable
Housing colorStandard Matte Black, could customized Pumkin color.
Soldering technology180ºCReflow Soldering,makesure 15000 hours Longevity for SMPS and mainboard
Size165*145*184mm
Net Weight 2.2 Kg
Operating temperature-20ºC - +55ºC
CerficatedCE, Rohs



FAQ:
1. Are you a factory or trading company?
Yes ,We are a factory.
2. Where is your factory located? How can I visit there?
Our factory address is :
No.2 XiaheRoad, Baiyun Industrial Area , Jianggao Town, Baiyu District,
Guangzhou, China ,about 30 minutes away from Bai yun Airport by metro.
All our clients, no matter where you are from, all are most welcome to visit us !
3. Which products we have?
We produce different kinds of LED Light .
Our product:
A. LED Moving Spot and Wash Light;
B. Studio Light;
C. Indoor Parcan Light;
D. Professional Wash Light;
E. Audience and DJ Light;
F. Outdoor Parcan Light;
G. Outdoor Washer Light;
H. Black Light;
J. Control System;
K. Dramatic architectural and landscape lighting.
4. How to get the latest price?
If you want the latest price, Please Email or call us with the items names or NO. What are you interested in ,
together with your details(name,details address,telephone,etc),we will send to you as soon as possible.
5. Does the products have any certificate?
Yes,our products have CE,ROHS ,UL, CQC and SGS certificate .
6. What's the Payment method?
All methods can be discussed.
7. How to Place an order?
Please kindly send us you order by email ,we will confirm the PI with you .we wish to know the below:Delivery information,company name, address details, phone/fax number, destination,transportation way ;Product information:item number,size,quantity,logo,etc.



7x10w rgbw led par from China professional 7x10w rgbw led par manufacturer.
If you have specific parameters and requirements for our 7x10w rgbw led par , customization is available.



Prod Model: Eden Quad7
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name: 7X10W RGBW LED PAR for Stage
Beam Angle: 8°,15°,18°,45*15°etc.
Display: Touch Operation
Channel: 3CH,4CH,5CH,8CH,9CH
Control Signal: Meet E1.11 - 2004 Usitt DMX512-a
Light Source: 7 PCS 10W 4-in-1 Full RGBW LED
Net Weight: 2.2kg
Soldering Technology: 180celsius Degreereflow Soldering
Cooling Method: Neutral Heasink
Size: 165*145*184mm
Power: 10W
Waterproof: Waterproof
IP Rating: IP65
Life: 50000h
Electric Current Type: AC
Input Voltage: 220V
Diffuser: Polycarbonate
Shell Material: Aluminium Alloy
LED Chips: Epistar
Certification: SGS
Type: LED PAR Light
Emitting Color: Full RGBW
Guangzhou longman PRO light factory co. Ltd. (hereinafter the "company") is a professional manufacturing enterprise, we're collection of R&D, producing, and marketing. Since the company was founded in 2005 in guangzhou, China, we're focused on the independent research development and production of LED lighting product and equipment.

Three brands under the company: Longman brand oriented stage lighting; Ledmewish oriented landscape architectural lighting; And reichy oriented truss and the other equipment for stage lighting.

The main product range of lighting in this company was included: LED stage and entertainment lighting; LED architectural and landscape lighting; Stage truss, and some customer preconcert development for the commercial lighting product.

All the kinds of products with superior quality, novel style, precision technology and cost performance are widely accepted by the industry. At present, the company products have been exported to Europe, America, Australia, Middle East, and Africa and so on, which was more than 120 countries and regions.

Longman lighting dedicated itself to stage light industry with years of experience. We introduced advanced technic and talents in this industry and created featured design and manufacturing concept as well as set up scientific and effective management system and strict quality control system based on our strong technical accumulation and complete management system and good after-sales service. We have obtained multinomial international product certification including CE, RoHS, SGS, PSE, UL, CCC, TUV, Energy Star and so on.

Our company was on behalf of the advanced level in this industry on appearance, optical, electrical, thermal, and command etc., it accumulate the intellectual property, individua areas was made a major breakthrough, now we are further to "professionalization, internationalization, standardization, and branding".

Longman has had authorised distributors in Germany, Britain, Canada, America, France, Brazil, Mexico, Australia, Singapore, South Africa and other countries since established. Our company is based in guangzhou, and has regional offices in Shanghai, xi'an, chengdu in domestic.

We should strive unceasingly with one heart and one mind together based on mutual benefit to make the construction of China more splendent!
