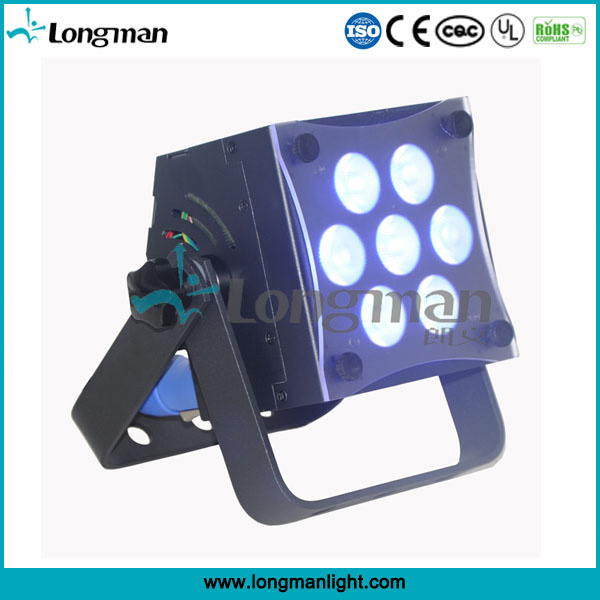

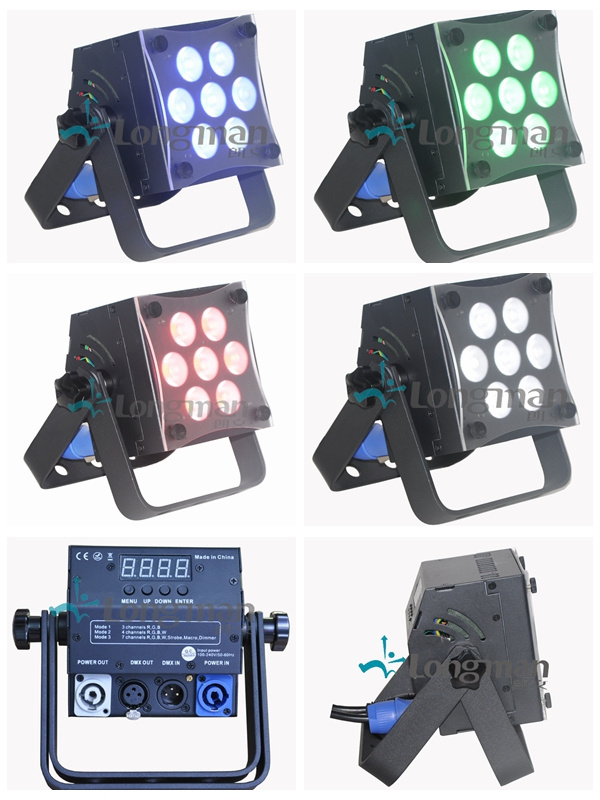

high power CE dmx controller 7x10w rgbw led par for djAdvantages:1.Easy install and uninstall Light accesories
2.Mini size lampbody, easy install especially to be inside truss
3.Compatible Powercon connector both blue and white
4.With 5 dimming curve
5.Flicker free
Technical advantages of par lights1.Innovative imaging optical path , nonlinear imaging optical path
2.Excellent performance of color, high saturation, complete CIE color gamut range
3.Excellent color rendering, uniform mixed color, the standard chrominance variance < 0.005
Zoom 8-50 degrees
4.A narrow beam to 1.5 degrees, strip to 60 * 1 degree of strip light distribution
5.The axial intensity up to 155250 CD/Klm
6.Luminaire efficiency beyond 125 lm/W
7.Precise beam Angle, light Angle, the expression of axial light intensity
8.Having DMX,PWM,Silicon controlled and Artnet different control modes and so on
9.Withstand 12 times per second switching of full load/no-load
10.Resistant to high strength spray test
11.Independent innovation design and die casting, extrusion and injection mold
12.More than 20 die casting mold and more than 20 stretching mold
13.High temperature automatic control output luminance protect function
14.Automatic display DMX signal reaching function
15.Shut down LED panel automatically after 2 minutes without operation
16.Dim4 smooth dimming function, Lower DMX address without blinking
17.All the configuration of luminaires pass the infrared imaging thermal test
18.All SMT and wave soldering technology
19.Good ODM & OEM and custom engineering services and so on
Specifications:| Input voltage | AC 100V-264V/47-63HZ |
| Output voltage | DC24V |
| Consume | 56W |
| Lamp Type | High Power LED(10W) |
| Lamp Spec | 4-in-1LED (7PCS) |
| Life span | 50000~100000hours |
| Constant current driver | 500MA |
| PWM Dimmer | >400HZ(16666 steps) |
| Control Signal | DMX512, sound activeted,auto run |
| Control mode | stand alone/ sound activeted |
| Channel | 3CH, 4CH, 5CH, 8CH, 9CH |
| Color effect | RGBW mixing |
| Function Effect | dimmer, strobe, eotic, gradual change,sound activeted |
| Cooling mode | Natural Convection |
| Beam Angle | 25°, 45° |
| Anti-electricity intension | 1.5KV |
| Insulation Resistance | >2MΩ |
| Size | 229*165*228mm |
| Net Weight | 3.3 Kg |
FAQ:1. Are you a factory or trading company?
Yes , We are a factory. |
2. Where is your factory located? How can I visit there?
Our factory address is :
No.2 XiaheRoad, Baiyun Industrial Area , Jianggao Town, Baiyu District, Guangzhou,
China ,about 30 minutes away from Bai yun Airport by metro.
All our clients, no matter where you are from, all are most welcome to visit us ! |
3. Which products we have?
We produce different kinds of LED Light .
Our product:
A. LED Moving Spot and Wash;
B. Studio Light;
C. Indoor Parcan;
D. Professional Wash;
E. Audience and DJ;
F. Outdoor Parcan;
G. Outdoor Washer;
H. Black Light;
J. Control System;
K. Dramatic architectural and landscape lighting. |
4. How to get the latest price?
If you want the latest price, Please Email or call us with the items names or NO. What are you interested in ,together
with your details(name,details address,telephone,etc),we will send to you as soon as possible. |
5. Does the products have any certificate?
Yes, our products have CE,ROHS ,UL and SGS certificate . |
6. What's the Payment method?
All methods can be discussed. |
7. How to Place an order?
Please kindly send us you order by email ,we will confirm the PI with you .we wish to know the below:Delivery
information,company name, address details,phone/fax number,destination,transportation way ;Product information:
item number,size,quantity,logo,etc. |
7x10w rgbw led par from China professional 7x10w rgbw led par manufacturer.
If you have specific parameters and requirements for our 7x10w rgbw led par, customization is available.
Guangzhou longman PRO light factory co. Ltd. (hereinafter the "company") is a professional manufacturing enterprise, we're collection of R&D, producing, and marketing. Since the company was founded in 2005 in guangzhou, China, we're focused on the independent research development and production of LED lighting product and equipment.
Three brands under the company: Longman brand oriented stage lighting; Ledmewish oriented landscape architectural lighting; And reichy oriented truss and the other equipment for stage lighting.
The main product range of lighting in this company was included: LED stage and entertainment lighting; LED architectural and landscape lighting; Stage truss, and some customer preconcert development for the commercial lighting product.
All the kinds of products with superior quality, novel style, precision technology and cost performance are widely accepted by the industry. At present, the company products have been exported to Europe, America, Australia, Middle East, and Africa and so on, which was more than 120 countries and regions.
Longman lighting dedicated itself to stage light industry with years of experience. We introduced advanced technic and talents in this industry and created featured design and manufacturing concept as well as set up scientific and effective management system and strict quality control system based on our strong technical accumulation and complete management system and good after-sales service. We have obtained multinomial international product certification including CE, RoHS, SGS, PSE, UL, CCC, TUV, Energy Star and so on.
Our company was on behalf of the advanced level in this industry on appearance, optical, electrical, thermal, and command etc., it accumulate the intellectual property, individua areas was made a major breakthrough, now we are further to "professionalization, internationalization, standardization, and branding".
Longman has had authorised distributors in Germany, Britain, Canada, America, France, Brazil, Mexico, Australia, Singapore, South Africa and other countries since established. Our company is based in guangzhou, and has regional offices in Shanghai, xi'an, chengdu in domestic.
We should strive unceasingly with one heart and one mind together based on mutual benefit to make the construction of China more splendent!
