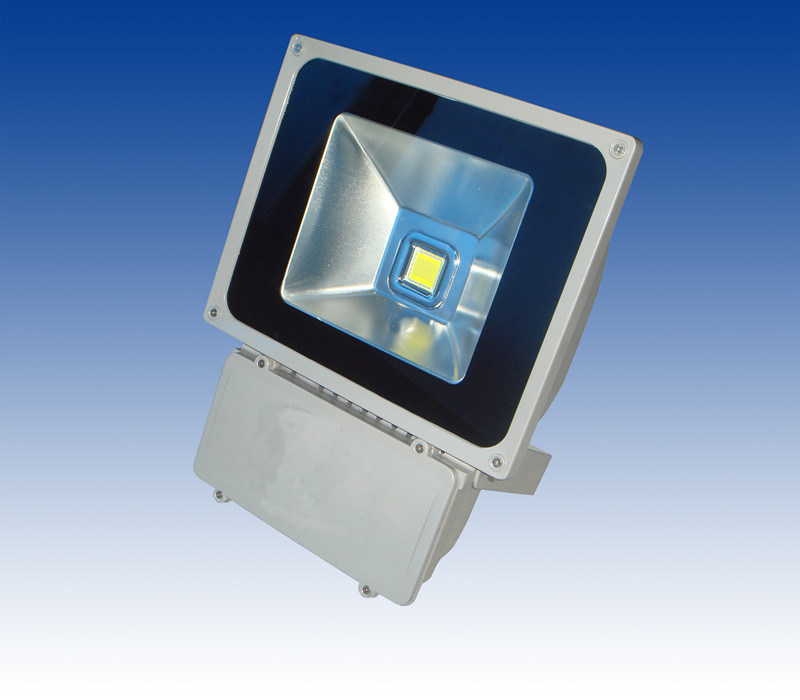

Outdoor LED flood light
Specifications:
Inpur Voltage: AC100-265
LED Qty: 1
Power: 80W
Luminous flux: 6400lm
CCT: 5500-6000k
4000-5000k
3000-4000k
Angle: 120°
Illumination(3m): ≥ ≥ 230
LED type: 80W high power
CRI: Ra>80
Efficiency: >80%
Working frequency: 50~60Hz
Life time: >50.000Hrs
IP degree: IP65
Pack size: 459*486*300mm
N. W: 3.5kg
G. W: 24.1kg
Packing: 6PCS/CTN
Application of outdoor LED flood light
It is suitable for the single building, history building outdoor wall lighting, Indoor part lighting, greening commerical lighting, advertisement board and professional healthcare and culture stablishment.
LED floodlight's housing adopts good quality high-pressure die cast aluminum, surface powder is by electrostatic spray. The appearance is nice and delicated, and heat dissipation is pretty good. It adopts the toughened safety glass and silicon rubber gasket. IP65 waterproof designed, Input voltage AC 85-265. It's convenient for usage and installation. Constant-current drive guarantees its stability specification.
|
Model NO. |
CH-H1W030 |
CH-H1W050 |
CH-H2W080 |
|
Input voltage |
AC85~265V |
|
Frequency |
50~60HZ |
|
Power factor |
> 0.90 |
|
Efficiency |
> 80% |
|
LED Qty |
1PCS |
1PCS |
1PCS |
|
LED type |
30W high power |
50W high power |
80W high power |
|
Rated power |
30W |
50W |
80W |
|
Luminous flux |
2380lm |
4250lm |
6400lm |
|
Illumination(3M) |
≥ 110Lux |
≥ 150Lux |
≥ 230Lux |
|
CRI |
Ra> 80 |
|
CCT |
4000-5500k; 6000-6500k |
|
Angle |
120° |
|
IP degree |
IP65 |
|
Working temperature |
-20~40º C |
|
Life time |
> 50000Hrs |
|
Package size |
580*450*265mm |
564*410*330mm |
459*486*300mm |
|
Total N. W. |
2.15kg |
3.5kg |
3.5kg |
|
Total G. W. |
14.55kg |
15.5kg |
24.1kg |
|
Qty |
6pcs/CTN |
4pcs/CTN |
6pcs/CTN |
