Product Description:
Why US:
1.CE,RoHS,FCC
2.low consumption
3.quality insuranc PCIC
Production:

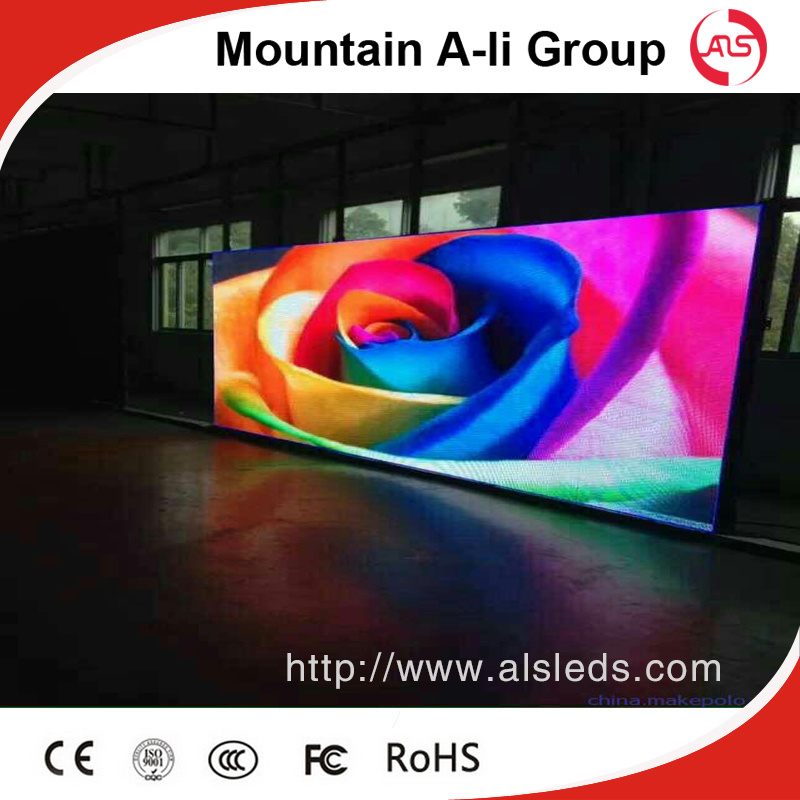

HD P6 indoor full color rental led display for stage performance
1). Model No.:P2mm, P3mm, P4mm, P5mm,P6,mm P8 P10m, P12mm, P16mm, P20mm.
2). Display Color: 256*256*256
3). LED Chips: Opto, Epistar, Silan, Huacan, Sanan
4). Raw Materials: Toshiba IC, MBI IC, Chuanglian Power Supply, Meanwel Power Supply, Meanwel fans, ADDA fan, Beijing glue, Korean glue.
5). Cabinet: Standard cabinet, simple cabinet, customized cabinet, cabinet for rental, Iron or Aluminum cabinet, cabinet for front maintenance, cabinet with lock, Special cabinet with Southco Lock, for hung and rental and so on.
6). Package: Flight case, wooden box package & carton box and so on.
7). Guarantee:2 year
Product attributes:
Model Number | P3mm | P4mm | P5mm | P6mm | P7.62mm |
Module size | 192mm*96mm | 256mm*128mm | 320mm*160mm | 192mm*192mm | 244mm*244mm |
Pixel pitch | 3mm | 4mm | 5mm | 6mm | 7.62mm |
Pixels Density | 111111 /m2 | 62500 /m2 | 40000 /m2 | 27777 /m2 | 17222 /m2 |
Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
Package mode | SMD2121 | SMD2121/SMD0805 | SMD3528 | SMD3528 | SMD3528 |
Pixel resolution | 64dots(W)*32 dots(H) | 64dots(W)*32 dots(H) | 64dots(W)*32dots(H) | 32dots(W)*32dots(H) | 32dots(W)*32dots(H) |
Scan mode | 1/16scan | 1/16scan | 1/16scan/ 1/8scan | 1/8scan / 1/4scan | 1/8scan/1/16scan |
Port type | HUB75-A | HUB75-A | HUB75-A | HUB75-A | ≥1500cd/m2 |
Brightness | ≥1800cd/m2 | ≥1200cd/m2 | ≥1500cd/m2/≥2800cd/m2 | ≥2200cd/m2 ≥3000cd/m2 | ≥1500cd/m2 /≥800cd/m2 |
Cabinet size | 576mm*576mm | 512mm*512mm | 640mm*640mm | 576mm*576mm | 732mm*732mm |
Power supply | 5V/40A*3pcs | 5V/40A*2 pcs | 5V/40A*2 pcs | 5V/40A*2 pcs | 5V/40A*2 pcs |
Pixel per cabinet | 192*192 | 128*128 | 128mm*128mm | 96mm*96mm | 96mm*96mm |
Best viewing distance | 3M ~ 20M | 4M ~ 20M | 5M ~ 30M | 6M ~ 40M | 7M ~ 40M |
Best viewing distance | 160°(W) 120°(H) | 160°(W) 120°(H) | 160°(W) 120°(H) | 160°(W) 120°(H) | 160°(W) 120°(H) |
Temperature | -40 degree~ +70 degree | -40 degree~ +70 degree | -40 degree~ +70 degree | -40 degree~ +70 degree | -40 degree~ +70 degree |
Relative humidity | 10%-95% | 10%-95% | 10%-95% | 10%-95% | 10%-95% |
Screen thickness | 85mm | 85mm | 85mm | 85mm | 85mm |
Working voltage | AC220V/110V±10% | AC220V/110V±10% | AC220V/110V±10% | AC220V/110V±10% | AC220V/110V±10% |
Average Power | 180W/ m2 | 185W/ m2 | 180W/ m2 | 220W/ m2 | 160W/ m2 |
Max.Power consumption | ≤360W/ m2 | ≤550W/ m2 | ≤500W/ m2 | ≤650W/ m2 | ≤480W m2 |
Refresh frequency | ≥2200HZ | ≥2200HZ | ≥2200HZ | ≥2200HZ | ≥2200HZ |
Grey scale/colo | 256levels of each color(RGB)/16.7M colors | 256levels of each 256levels of each color(RGB)/16.7M colors color(RGB)/16.7M colors | 256levels of each color(RGB)/16.7M colors | 256levels of each color(RGB)/16.7M colors | 256levels of each color(RGB)/16.7M colors |
MTBF | ≥9000hours | ≥9000HZ | ≥9000hours | ≥9000hours |
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
